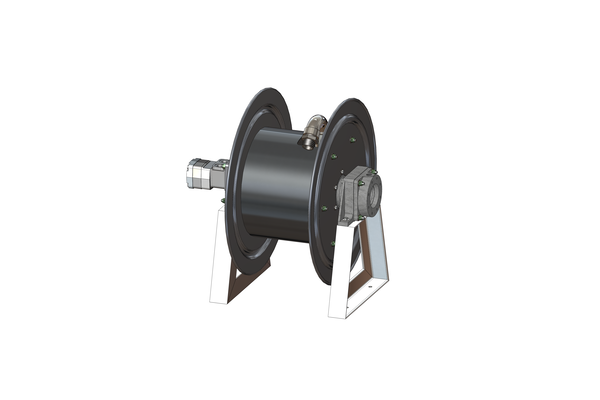

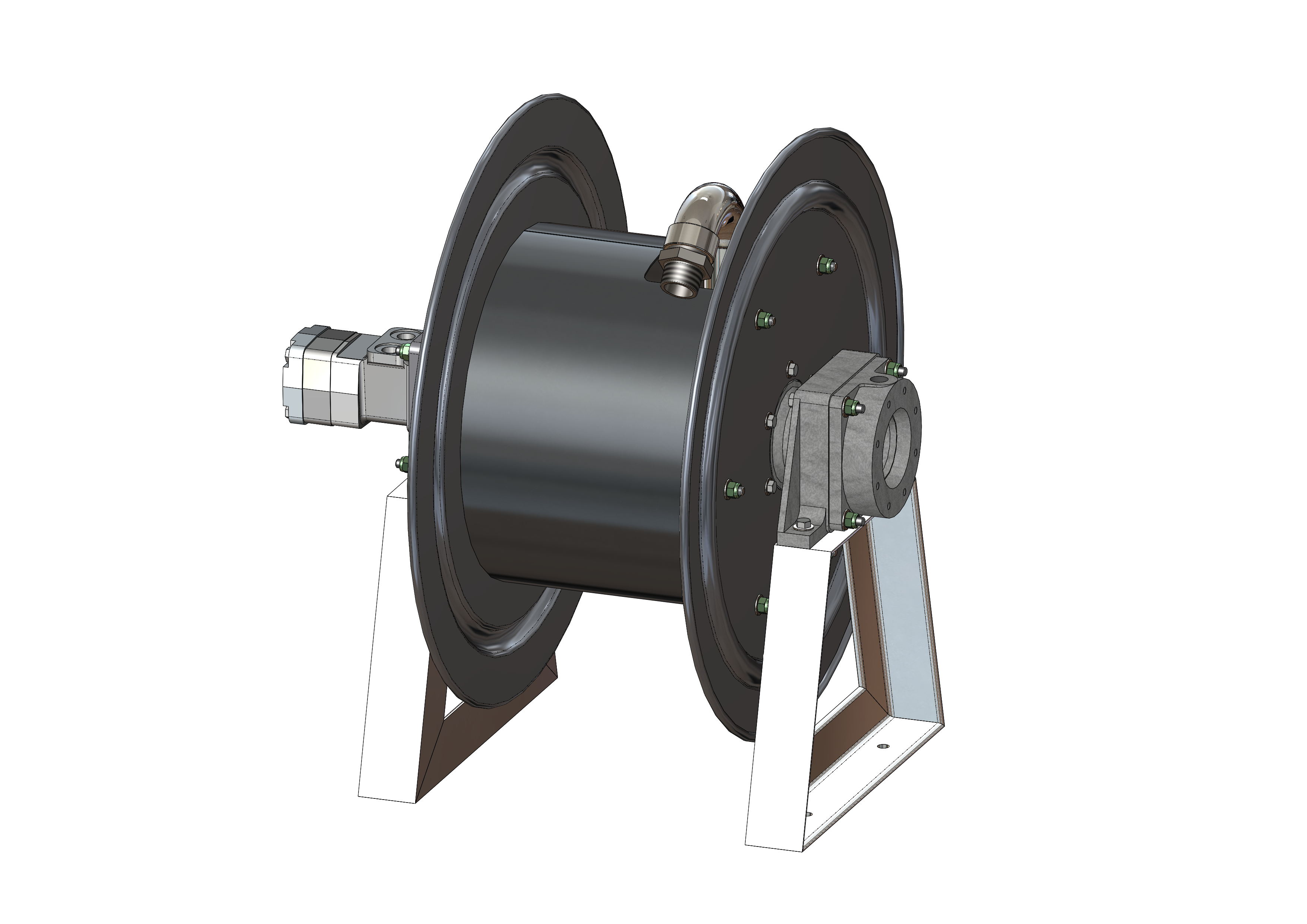

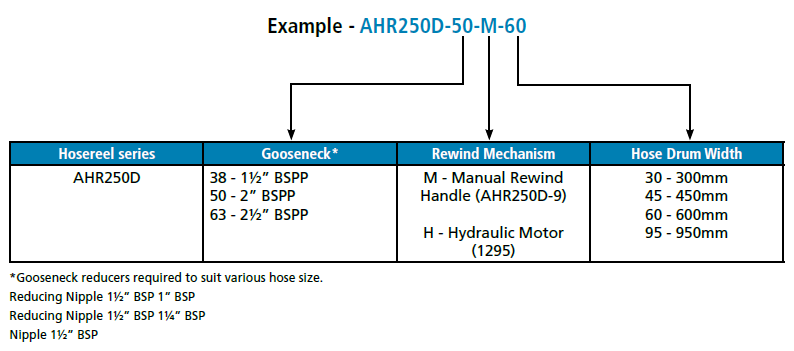

| Base Horeel |
| Pressure tested & rating |
Up to 2,100 kPa |
| Periodic Service |
Annually check Orings and replace as required. Remove and repack bearing on each side of reel. |
| Mounting |
4 x M12 Bolts - see mounting footprint on datasheet.
2 x A-frames (AHR250-6) supplied separately. |
| Inlet and Outlet |
Inlet flange to suit 75mm (3”) TTMA - 8 off 3/8” BSW x 25mm deep blind threads on a 124mm PCD.
1½" or 2" Gooseneck options. |
| Rewind Options |
Manual or Hydraulic. |
| Drum widths |
300mm (12”)
450mm (18”)
600mm (24”)
950mm (37”) |
| Materials |
Aluminium cheek plates and drum.
Nickel plated steel gooseneck.
Viton seals.
Klinger gaskets.
|
| Variants |
Can suit the following diameter hose:
25mm (1”)
32mm (1¼”)
38mm (1½“)
50mm (2”) |
| Operation |
Dispense: Un-hook the nozzle and dispense hose to the required location.
Rewind: Rotate manual handle or engage hydraulic motor. |
Maximum possible hose length in meteres
| Hose Size (NB) |
300mm wide (with Beads) |
400mm wide (wide Beads) |
600mm wide (with Beads) |
950mm wide (with Beads) |
| 1" |
38 (16) |
58 (26) |
77 (32) |
120 (52) |
| 1¼” |
18 (6) |
31 (9) |
40 (13) |
64 (20) |
| 1½" |
16 (5) |
25 (7) |
35 (11) |
57 (18) |
| 2" |
6 (4) |
9 (6) |
13 (9) |
21 (14) |
| 2½" |
5 (3) |
7.5 (5) |
10.5 (8) |
18 (13) |
