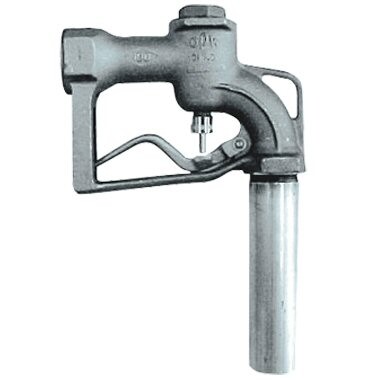

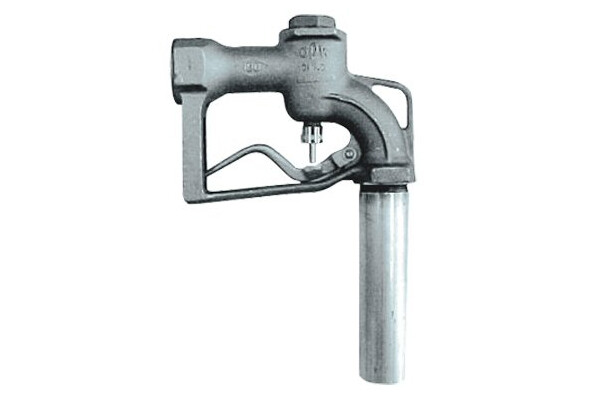

190 High-Flow Nozzles

For High-Flow, Bulk Fuel Oil Delivery Service

Designed to handle high flow when line pressure is not a critical consideration or otherwise absorbed.

For applications over 50PSI, please use 210 Series Nozzles.

Features & Benefits
  • Aluminium Body - lighter weight, easier to maneuver.
  • Dual Poppets - allow for low flow metering (this nozzle is not intended for high pressure pump applications).
  • Replaceable Hold-Open Rack - for use when fueling large-capacity tanks. Nozzle must be attended at all times during usage.
  • Right Angle Design - provides larger lever area for better grip and easier control; permits nozzle to fit into awkward spaces close to walls and into corners.
  • Drag Lugs - protect the nozzle when dragged across rough surfaces; enhances long-life durability.
  • Easily Replaced Spout - the spout is easily threaded into the body. Replacement spouts are readily available from OPW.
  • NPT or BSP Female Threads at Inlet End - standard pipe threads accept all standard 1", 1-1/4", 1-1/2" and 2" male connections.
Ordering Information

190L-584LLIQUIP: NOZZLE 1 ¼" 190 BSP C/W SPOUT

190L-586LLIQUIP: NOZZLE 1 ½" 190 BSP C/W SPOUT

190S-7063-114Z: STRAINER & SPACER KIT FOR 1¼" NOZZLE.

190-0113: Nozzle 1¼" NPT VITON, NO SPOUT **NPT THREADS**

190-0114: Nozzle 1½" NPT VITON, NO SPOUT **NPT THREADS**

297-9020: Aluminium Spout 1 ¼" NPT OPW SUIT 190L and 210L series nozzles.

297-9030: Aluminium Spout 1 ½" NPT OPW SUIT 190L and 210L series nozzles.

Please CONTACT LIQUIP for all ordering information.

Technical Information

Design working pressure
50 psi maximum pressure.

Materials
Body: Cast aluminium.
Main Stem: Stainless steel.
Stem Seal: Graphite with Teflon®.
Disc: Viton®.
Spout: OPW 296 brass or 297 aluminium (optional).

Performance
