HOST ISO Classic SBTs can safely store and dispense the following hydrocarbons (See table below for more information), making them highly valuable tank solution.
(Aviation SBTs based on container style with modifications).

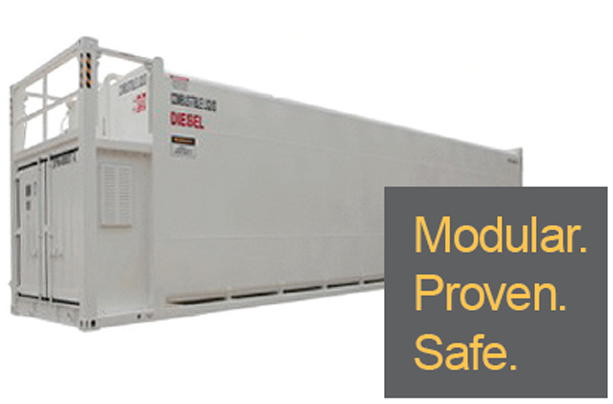

The HOST ISO Classic range of Self Bunded Storage tanks is the result of listening to our customers and investing a great deal of engineering resources to design robust and high quality tank packages that provide more economical solutions for fuel storage.

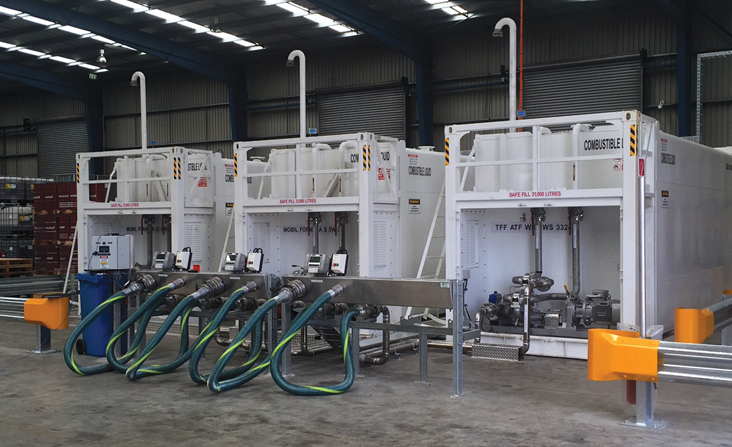

► Single tanks to multi-million litre tank farms
► ISO container design – 10’, 20’, 40’ and 48’ for ease of transportation
► Designed to hold and dispense diesel, ULP, oils, aviation fuel, AdBlue (DEF) and many other petrochemicals.
► Ideally suited for use in industries such as: fuel distribution, mining, aviation, power generation, oil and gas, military, transport and construction.
The range builds upon acquired knowledge and experiences and include key features that deliver you huge benefits, such as:
► Clean rounded lines on the inner tank eliminate stress points and areas for contamination to collect
► Floor drains to a low point at the front of the tank for water removal
► All tanks are intermodal. Standard containers can be transported by standard trucks or trains and moved by shipping container handling equipment, without cranes.
Certified and tested to the highest global standards for bulk fuel storage, UL142, these tanks exceed all relevant Australian Standards for storage of flammable and combustible liquids. When empty, the tank is also an approved, truly intermodal container as classified by CSC to IMO standards.
> All tanks are built to UL approval (PLUS AS1940, AS1692, AS1657. A heavier duty design and structure than the Australian Standard).
> All tanks have rounded corners on both the top and bottom of the tank, providing extra strength in the construction and more importantly does not allow debris or water pooling in the corners or the bottom of the tank.
> Tanks have sloping floors (from the back to the front and from the sides to the middle). It ensures all water is pooling at the water well. Flat bottom tanks do not provide this benefit, this can result in water pooling and algae growth in the tank, potentially leading to a contaminated product. The water well has a suction tube installed for removal of water through the top of the tank.
> Tanks come standard with emergency vents on the primary tank and interstitial section or bunded part.
> All tanks are designed to be viewed from underneath as per AS1940 and more importantly to provide air flow to the base of the tank. The tank floor is elevated off the ground and is open at the sides allowing visual inspection and air flow to prevent moisture build up, which promotes corrosion on the bottom of the tank. Standard flat tanks don’t allow this type of airflow to naturally occur.
> Overfill valve, Anti-syphon valves and High Level Alarms are supplied as standard on all tanks.
> The fill line has a standard stainless steel 80 mm Isolation valve and Check valve fitted.
> All tanks come with an Anodised Dipstick.
> The pressure or suction pipe is fitted with an 80 mm Isolation valve.
> The tanks roof is designed to cascade water off its surface, reducing corrosion.
Interested in learning about the benefits and key advantages of on-site bulk liquid storage? Then read our article, 'Seven ways on-site bulk liquid storage saves time and money'

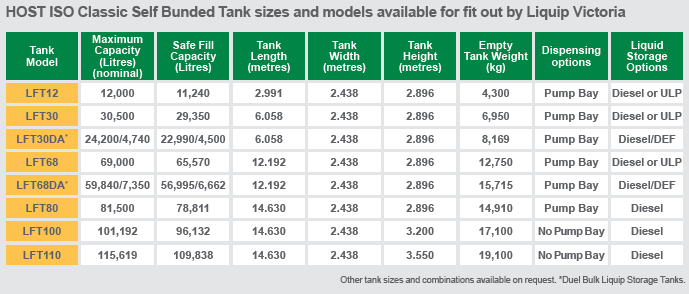

Sizes range from 12,000 to 115,000 litres, and all tanks are manufactured to UL142 (which exceeds AS1940, AS1692 and AS1657).

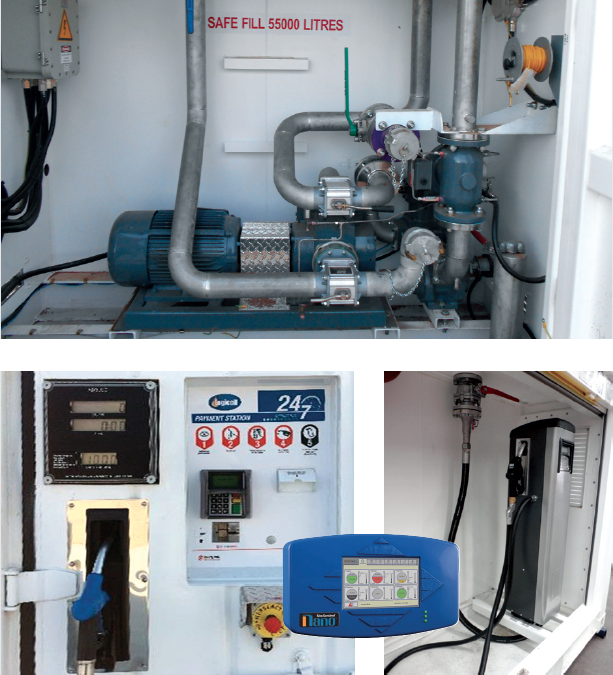

- Light Vehicle – 80 L/pm
- Heavy Vehicle or high flow – 160 L/pm
- Mining Equipment – 800 L/pm
- AdBlue Solution Pump – On tank and Off Tank
- Ebsray Unloading Pump – up to 1000 L/pm

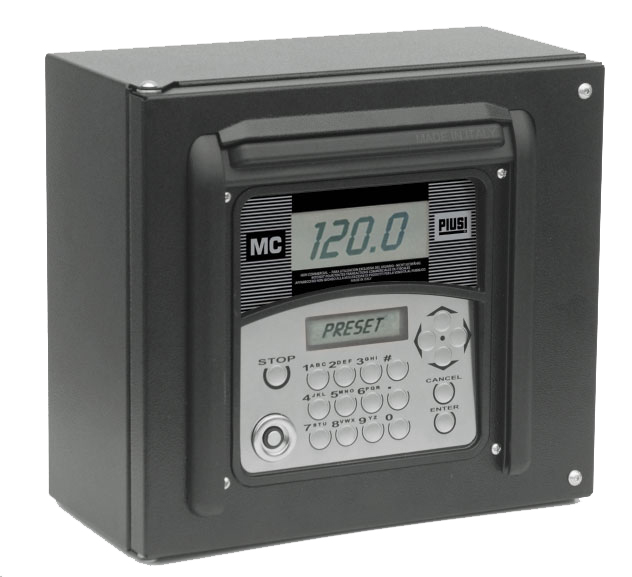

FUEL MANAGEMENT SYSTEMS
- Smartfill, Compac, Transponder and others
- White Card / Company Cards
- CCDCA (Credit Cards)
- Remote Reporting via Web (No Fees)
- OPW Nano Tank Gauging
- Remote viewing of tank volumes
- High and Low Alarms
- Electronic or Mechanical Registers
- TCS meters or other
BULK DISPENSING EQUIPMENT
- Liquip Loading Arms – up to 1800 L/pm)
- Liquip Control Consoles and Metering
- Liquip Over Fill Control Systems
- Liquip Dead Man Switch
Add a HOST ISO Classic Duel Fuel Storage Tank (AdBlue and Diesel split tank) at your place of business to maximise the savings of onsite fuel storage and dispensing, just like this transport business did.
Did you know?
When you buy a Self Bunded Storage Tank from Liquip Victoria, you are not just buying a tank, you’re buying a complete bulk liquid storage solution. Not to mention that we offer a complete turnkey solution as part of the purchase.
► Selection and advice on the best suited tank solution
► Custom tailored pump dispensing and monitoring system design with multiple options to choose from
► Fit-out of pump dispensing equipment and systems onto the tank
► Delivery, installation and set-up of the tank on-site, along with commissioning
► Option of on-going servicing and maintenance of tank on-site.
For more information about our range of HOST Self Bunded Tank solutions please contact us today.
