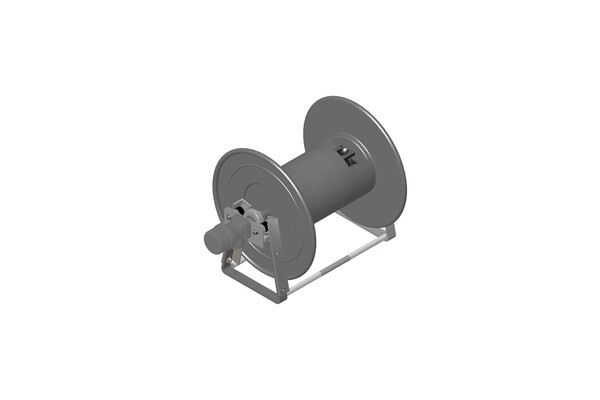

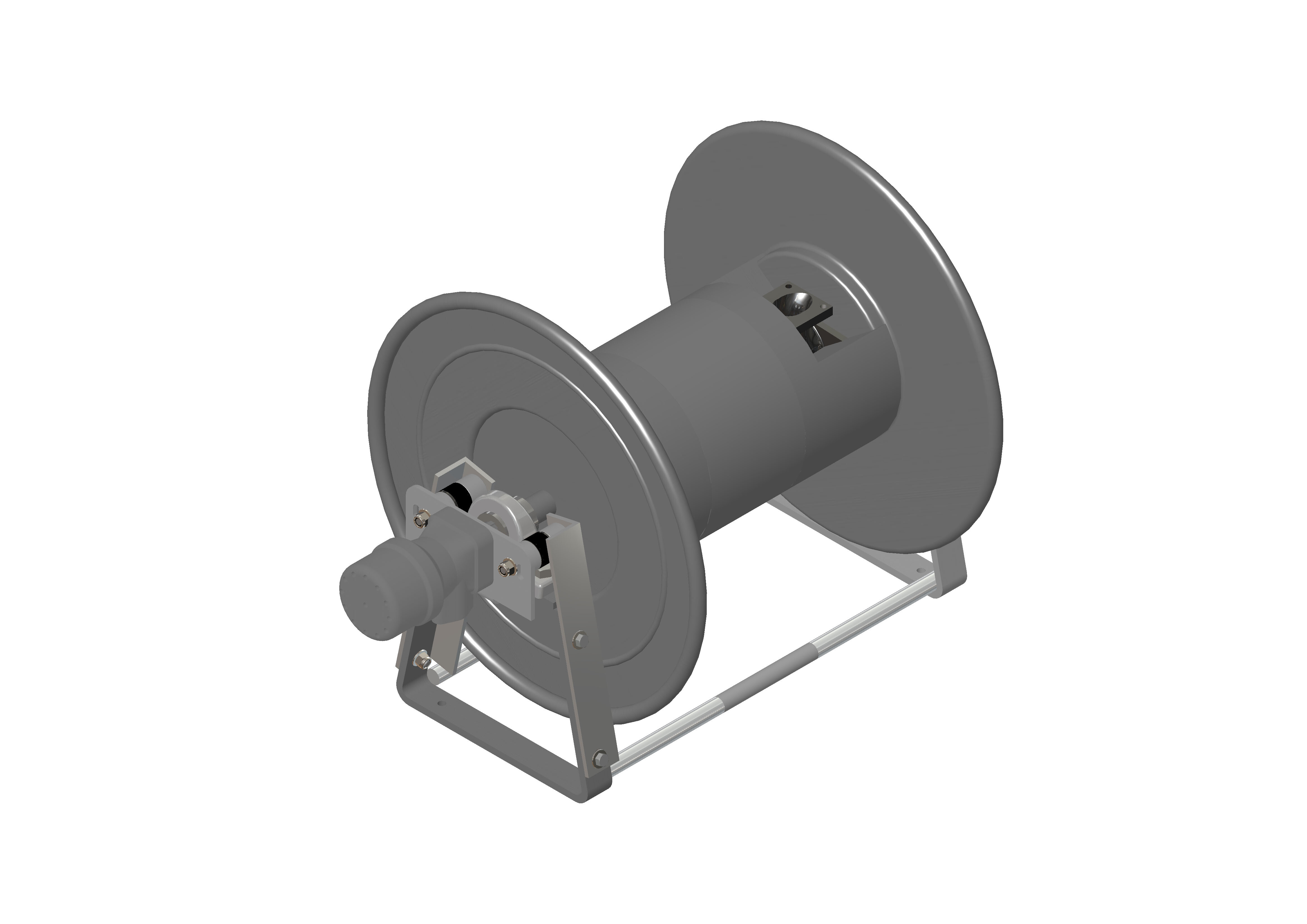

High Pressure Hose Reels

The HR series of hydraulic rewind, high pressure hose reels are suitable for petroleum products and are    available in different sizes.

The hydraulic rewind reels have robust construction – stiffened cheek plates, extremely sturdy thick wall manifold with added strength from a steel inner drum, steel base frame and self aligning bearing.

Features & Benefits
  • Flow area is equal to 38mm throughout.
  • All components are easily replaced as required.
  • Hydraulic rewind.
  • Sealing is by lip seal.
  • Built tough to last in the harshest conditions.
  • All models incorporate an optional lock.
  • Optional anti-rotation lock to prevent hose unravelling.
Technical Information

Pressure tested & rating
Up to 2,100kPa.

Periodic Service
Quarterly grease plummer block bearing.

Mounting
4 x M10 Bolts.

Variants
Can suit 25mm, 32mm & 38mm diameter hoses.

Rewind Mechanism
Hydraulic Rewind.

Drum widths
300mm (12"), 400mm (18") or 600mm (24").

Ordering Information





HR

Width (Inches)





HP2

12

18

24

Options (contact Liquip for further details)

LPG spec
Aviation spec
Galvanised drum/frame
Lockable version

Associated Equipment

AHR250D: Aviation drum style hose reel.

AHR250: Cartwheel type hosereels:

295SACJ-0200: Aviation spec nozzle.

Nickel plated steel gooseneck with st steel inlet flange available.

Nickel plated gooseneck with 1 ¼” MBSPP thread available for aviation and water use.

Rollers and guides.
