Long Reach Arms

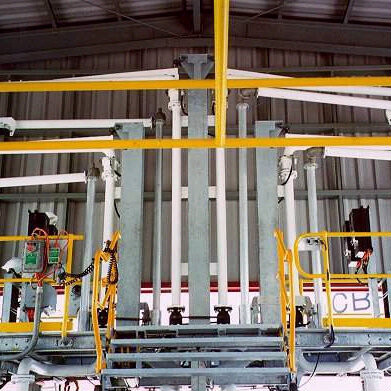

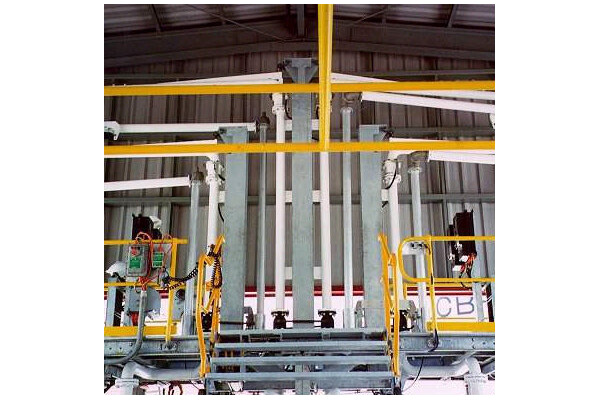

Longreach top loading arms can load both sides of the gantry and can reach all compartments on a typical road tanker without the need to move the tanker.

Note: a sepcial high load base swivel may be required for longer 'wet' arms.

Features & Benefits
  • Unique design allows for loading both sides of the gantry.
  • Longreach top loading arms allows for full cross over capability.
  • Liquip's gas strut technology enables finger tip control of up to 4 arms per bay (5 or 6 arm bays are possible but consult Liquip for details).
Technical Information

Horizontal reach
Up to 5,500mm

Flow Rates
Typical flow rates are up to 1,500LPM.

Ordering Information

Loading arm survey forms are available for users to fill out. Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the liquip website. Click here to obtain a login.

Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

Associated Equipment

Long Reach loading components

  • Primary arm with base swivel
  • Balance Assembly
  • Gas Struts
  • Secondary arm
  • Intermediate Swivels
  • Drop spear


  • Remote handle
  • Position indcating brackets
  • rotation limiter
  • Diffuser
  • Vapour cone
  • Spear mounted overfill protection sesnor
  • Up/down stops
  • Butterfly Valves
  • Sightglasses
  • Spools
  • Riser Pipes
