Pantograph Loading Arms

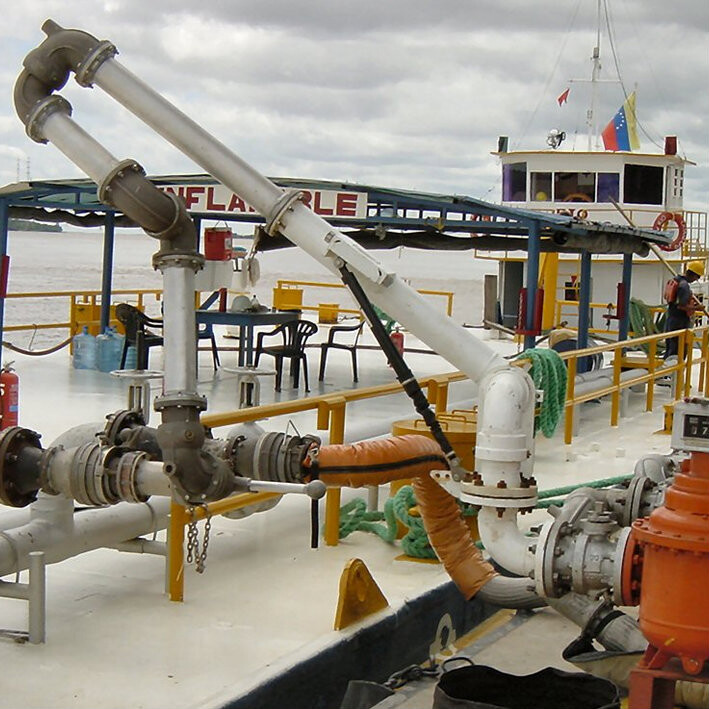

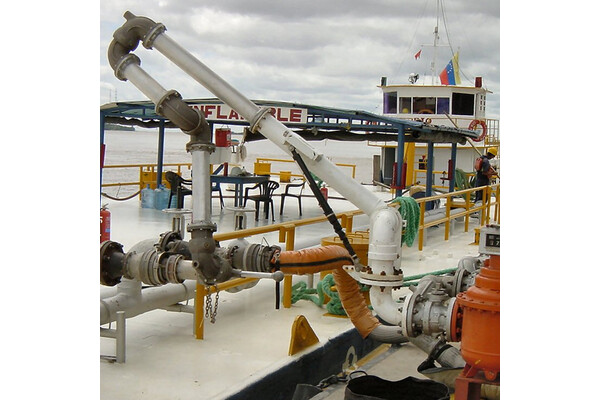

Pantograph top loading ams are a very commonly used style of top load arm all around the world.

Pantograph arms are a simple and afforabdable design for medium duty applications.

Features & Benefits
  • Long reach arms for ease of loading.
  • Unique dsign allows for high flow rates to be acheived.
  • Easily access a single sided loading bay.
  • Vacuum breakers are available to assist drainage of the loading arm.
Technical Information

Horizontal reach
Up to 2,600mm (longer horizontal reach is possible but dependent on design). Contact Liquip for assistance.

Flow Rates
Typical flow rates are up to 1,500LPM.

Ordering Information

Loading arm survey forms are available for users to fill out. Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the liquip website. Click here to obtain a login.

Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

Associated Equipment

Pantograph loading components

  • Balance Assembly
  • Gas Struts
  • Loading Valve
  • Intermediate Swivels
  • Remote handle
  • Spools
  • Drop spear

Options:

  • Remote handle
  • Position indcating brackets
  • rotation limiter
  • Diffuser
  • Spear mounted overfill protection sesnor
  • Up/down stops
  • Butterfly Valves
  • Sightglasses
  • Spools
  • Riser Pipes
