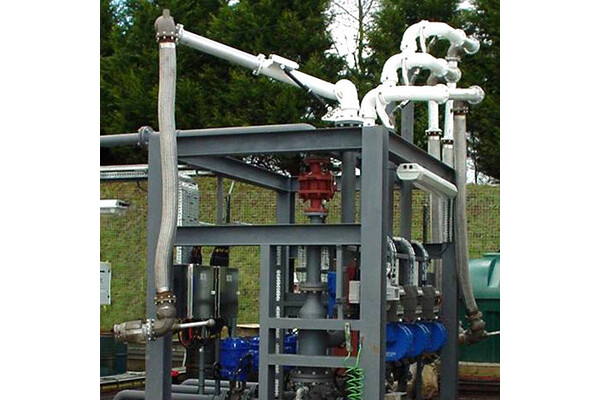

Vapour Recovery Arms

The Liquip Vapour Recovery Arm provides a safe and efficient method of vapour collection.

Vapour recovery arms are fitted with a low pressure drop vapour coupler which allows for multiple compartment loading

Features & Benefits
  • Removes the potential safety risk of vapour hoses in load bays.
  • Eliminates the need for costly hoses replacements.
  • Vapour loading arms are available in all bottom loading configurations.
Technical Information

Counter balance type: Single or Dual gas springs
Range of motion: Horizontal 360°, Vertical +15° to -15°
Mounting connections: 4” Class 150 ANSI RF flange
Working Pressure: 1,000 kPa,(not including coupler).
Test Pressure: 1,500 kPa (not including coupler).
Maximum coupling pressure: 500 kPa working
Temperature limits: -30°C to + 60°C
Primary seal materials: Viton B70 or GFLT
Dust seal material: Buna Nitrile or HAN
Gasket material:  Klingerite or Viton A

Ordering Information

Loading arm survey forms are available for users to fill out. Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the liquip website. Click here to obtain a login.

Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

Associated Equipment

Vapour recovery loading components

  • Balance Assembly
  • Gas Struts
  • Straight Swivels
  • Intermediate Swivels
  • Coupler Swivels
  • Vapour couplers
  • Drop hoses & covers
  • Butterfly Valves
  • Sightglasses
  • Spools
  • Riser Pipes
  • Parking adaptor e.g. VCFPA
