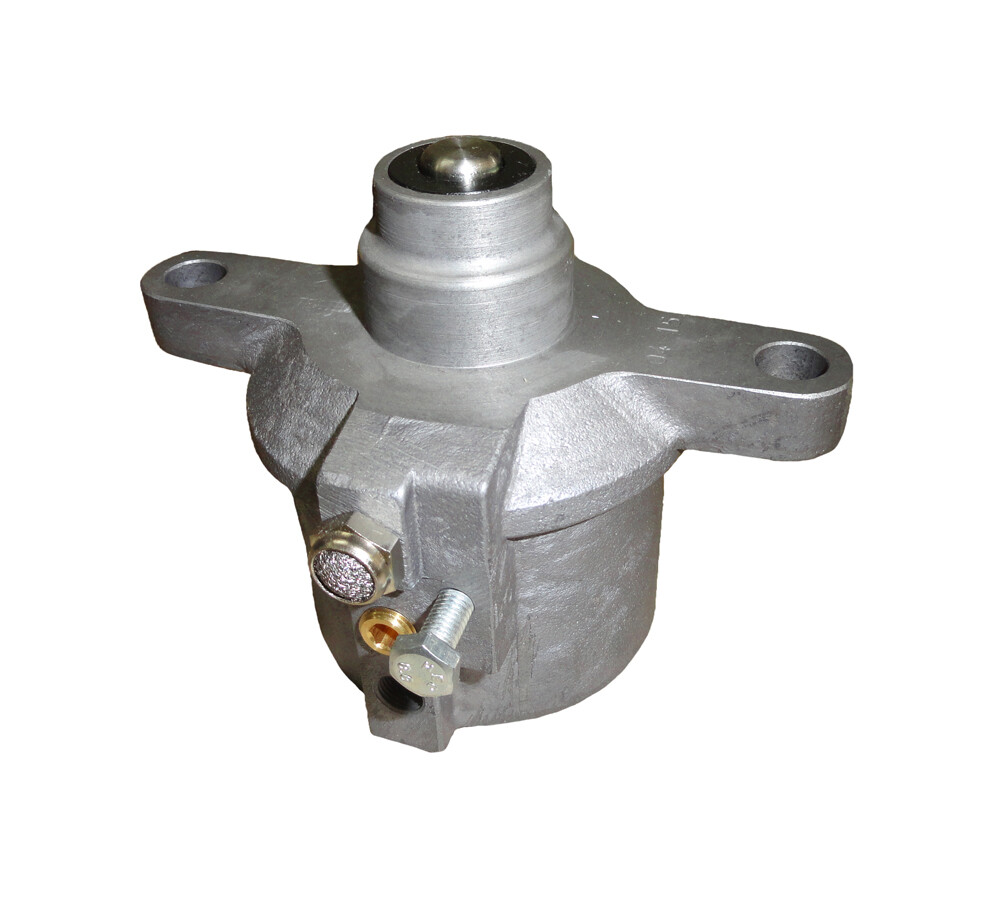

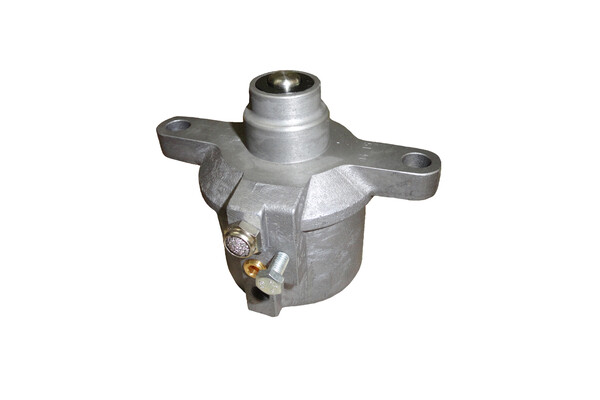

ARO100 Air Ram Operator

The piston type air operated ram can be used in place of the standard diaphragm air ram used on Liquip foot valves.

The plunger is pushed forward by a piston when air is supplied to the air inlet. The air in the cylinder is expelled through the exhaust port. The air ram assembly also has a sequential port the can be connected to other air rams in series.
A jacking screw is provided to allow manual opening of the valve in the event of air pressure loss (note that this does not fully open the valve).

Technical Information

PERIODIC SERVICE
No routine maintenance required.

DISMANTLE
Air ram operator assembly is easily removable & replaceable, being a self-contained externally mounted assembly.

TECHNICAL DATA
60mm bore.
Needs a minimum of 350kPa of air pressure, to open the foot valve fully.

ASSOCIATED EQUIPMENT
SLV5 foot valve

WEIGHT
0.65 kg

MOUNTING
Bolted to SLV5 body using M10 screws and spring washers with a sealing gasket.

MATERIALS OF CONSTRUCTION
Aluminium body.
Stainless steel poppet.
Viton seals and gasket.
Acetal piston.

Ordering Information

ARO100: Air Ram for SLV5 internal valves.
