API Parking Adaptors

Liquip offers a range of parking adaptors for API couplers to ensure loading arms are properly stowed and secured.

Features & Benefits
  • All adaptors have stops to ensure coupler can not be opened whilst parked.
  • Some parking adaptors can be used to collect drips and pipe them away to  a drain system.
  • Parking adaptors can be supplied with a promixity swtich to enable system interlocks.
Technical Information

Periodically grease sliding proximity switch (where supplied) by using grease nipple visible from face of nosecone.

-APIPA & PA200 bolt onto bracket supplied by customer.
-PA101 isfree standing (bolt to concrete or skid floor).

APIPA: 2kg
PA101: 16kg
PA200: 1.4kg

Ordering Information

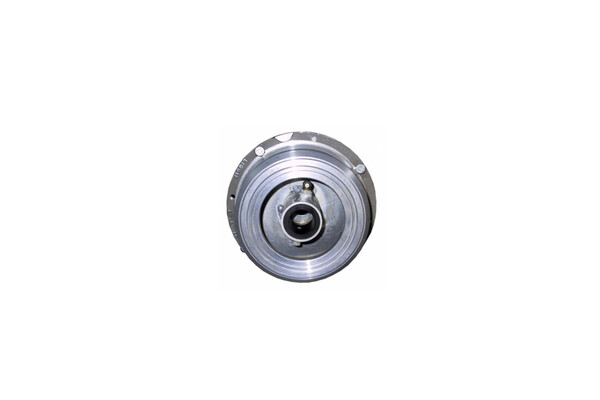

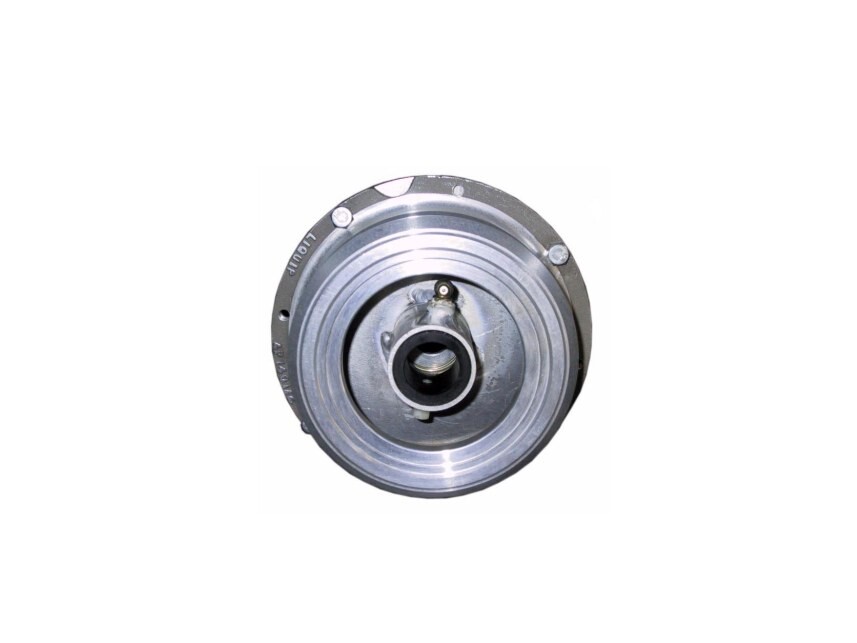

APIPA: Parking adaptor c/w provision for proximity sensor

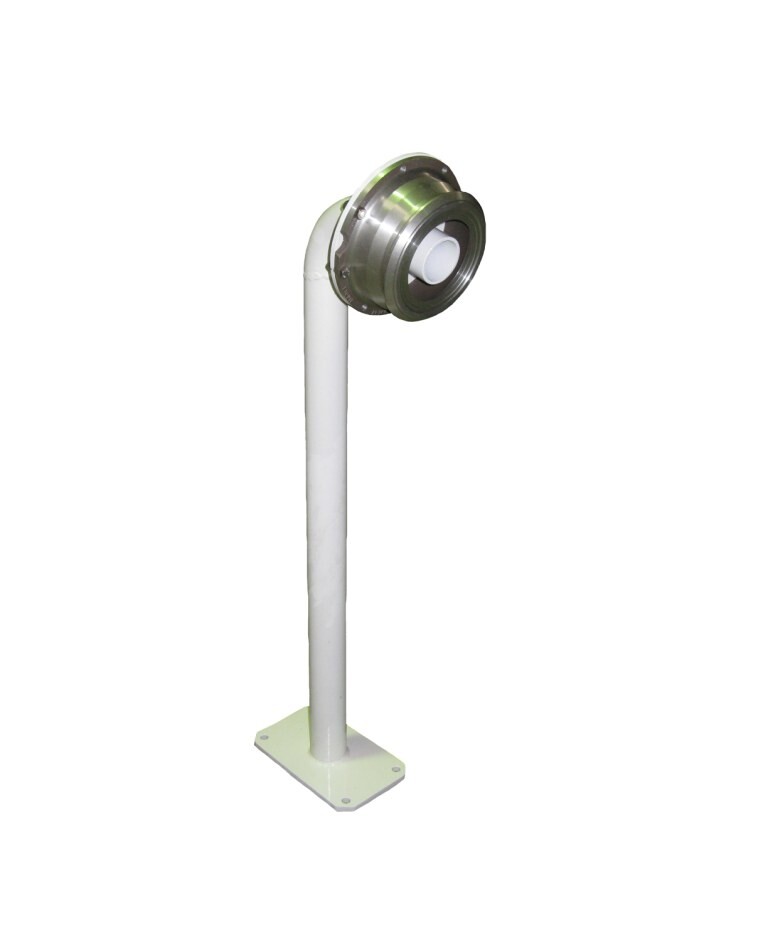

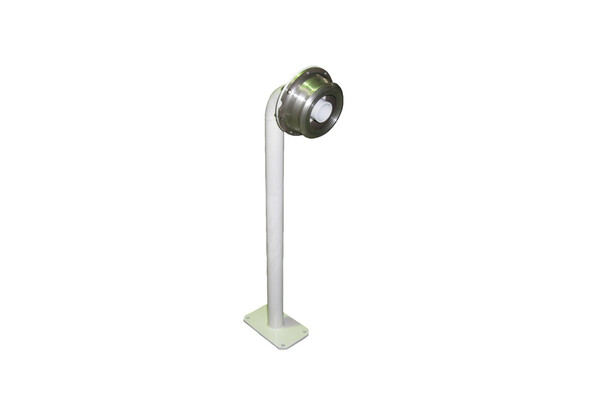

PA101: Parking adaptor, free standing c/w provision for proximity sensor

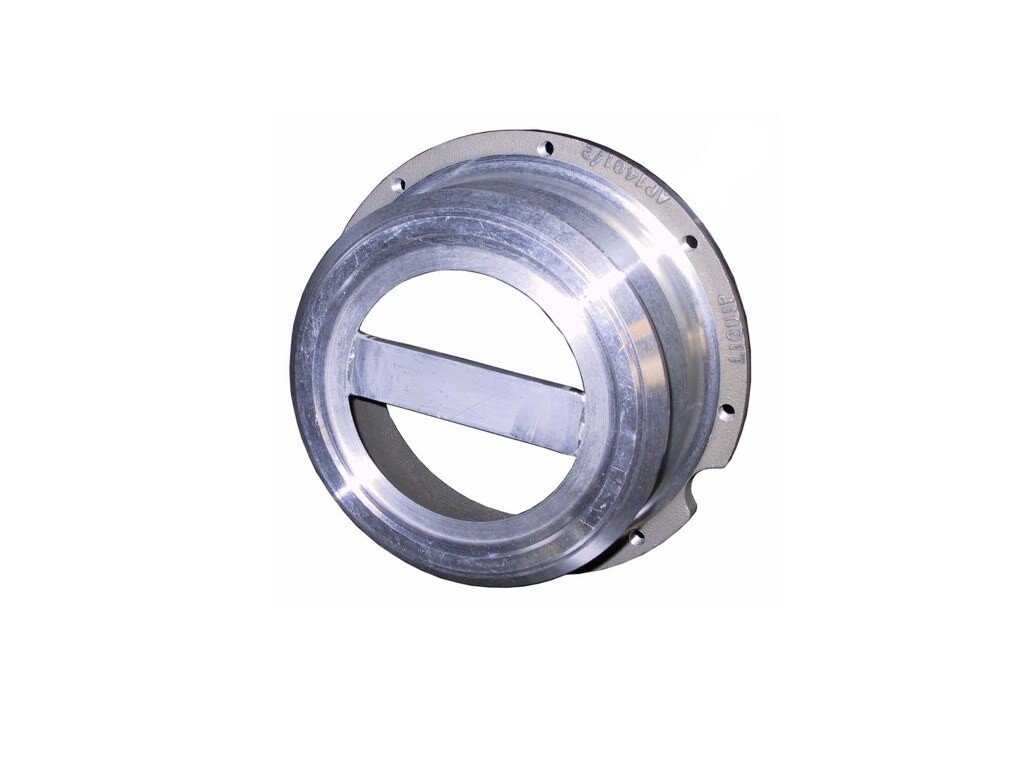

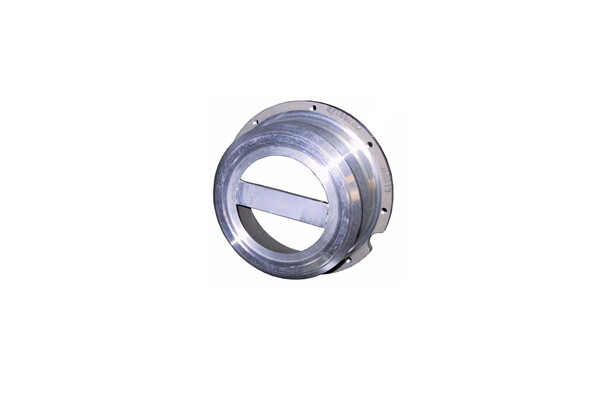

PA200: Parking adaptor, no proximity sensor, stop bar only

Associated Equipment

API700 Series Dry-Break Coupler.
API800 Seires Dry-Break Coupler.
