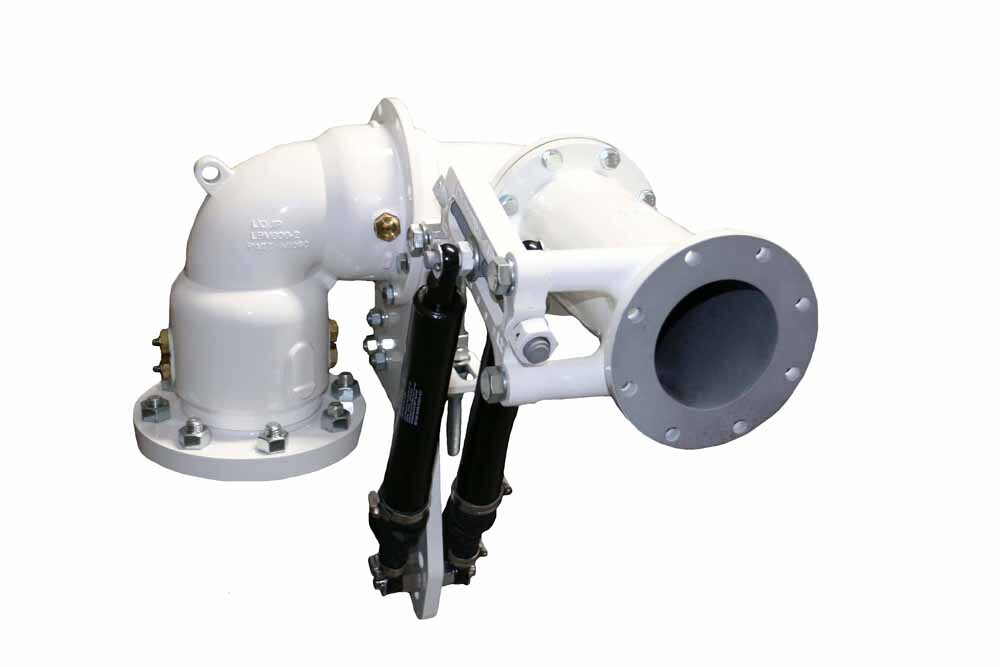

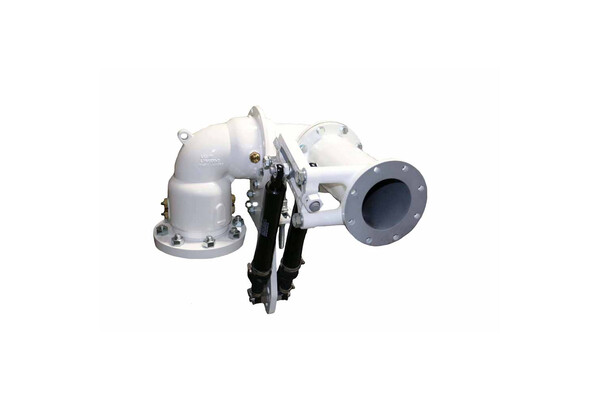

LBM800 Series

Liquip offers the latest balance assembly to be used for bottom loading applications.

A new benchmark has been set for all bottom loading arms with the introduction of the LBM800. This state of the art design isessential when you require safety and long service life with minimal maintenance.

The ‘bulletproof’ LBM800 provides effortless bottom loading in petrochemical distribution depots through the use of the unique design known as the ‘Velvet Touch’.

The ability of 360° rotation in the horizontal plane allows the LBM800 to easily move from a parked to loading position to service vehicles on either side of the loading bay. While the vertical plane swivel allows users to
position the coupler at different heights within the API envelope.

Features & Benefits
  • Superior safety through Liquip’s unique gas strut design.
  • Exceptional durability and minimal servicing requirements thanks to the best in class base swivel assembly and overall design.
  • Any unit can be easily configured for left hand, right hand, upward and downward configurations on site.
  • Slimline drop leg bracket provides easy installation and compact overall size.
  • Enhanced strength and ease of adjustment through a heavy duty adjustment mechanism.
  • Downtime during installation is reduced by an all flanged design.
  • Outlet spool provides an industry standard 4” TTMA connection for simple installation and allows for future applications.
  • Adjustable up/down stop that can be set with minimal effort.
  • Viton GFLT product seals fitted as standard. Other seals to suit a range of products available on request.
  • Velvet touch provides smooth operation over the entire stroke of the loading arm.
Technical Information

Material
Investment cast 4130 steel construction

Seals
LBM800: Fitted with Viton GFLT product seals & HAN dust seal. (Other special seals available on request)

LBM800AVI:Fitted with Viton GFLT product seals & HAN dust seal with grease suitable for use with aviation fuel.

Working Pressure

1000 kPa (145 PSI)

Test Pressure
1500 kPa (217 PSI)

Mounting
Base flange is 4” ANSI 150 raised face flange.
Outlet flange is 100mm (4”) TTMA pattern.

Weight
~60kg

Operating Temperature
 -40°C to +60°C (-40°F to + 140°F)

Min Moment

90 kg.m (650 ft.lb)

Max Moment

250 kg.m (1800 ft.lb)

Up / Down Angluar Movement

-15° to +15° (From horizontal)

Typical Horizontal Spacing
650mm (24”)

Typical Vertical Spacing
450mm (18”)

Typical Radius of arm
1300mm to 2000mm (50” to 80”)

Typical No. of arms per bay
6

Ordering Information

LBM800: Standard Balance Mechanism

LBM800AVI: Aviation Balance Mechanism

LBM800-1Z: LBM800 with 2 X 2800N Struts

LBM800-2Z: LBM800 with 2 X 5200N Struts

LBM800-3Z: LBM800 with 2800N&5200N Strut



Associated Equipment

4416: 2800N Strut

3008: 5,200N Strut

VNI-A4VG: 4” Intermediate Swivel, Viton GFLT for Loading Arm

VNC-A4VG: 4” Coupler Swivel, Viton GFLT for Loading Arms

API800 Series Coupler
