Hydraulic Rewind Hose Reels

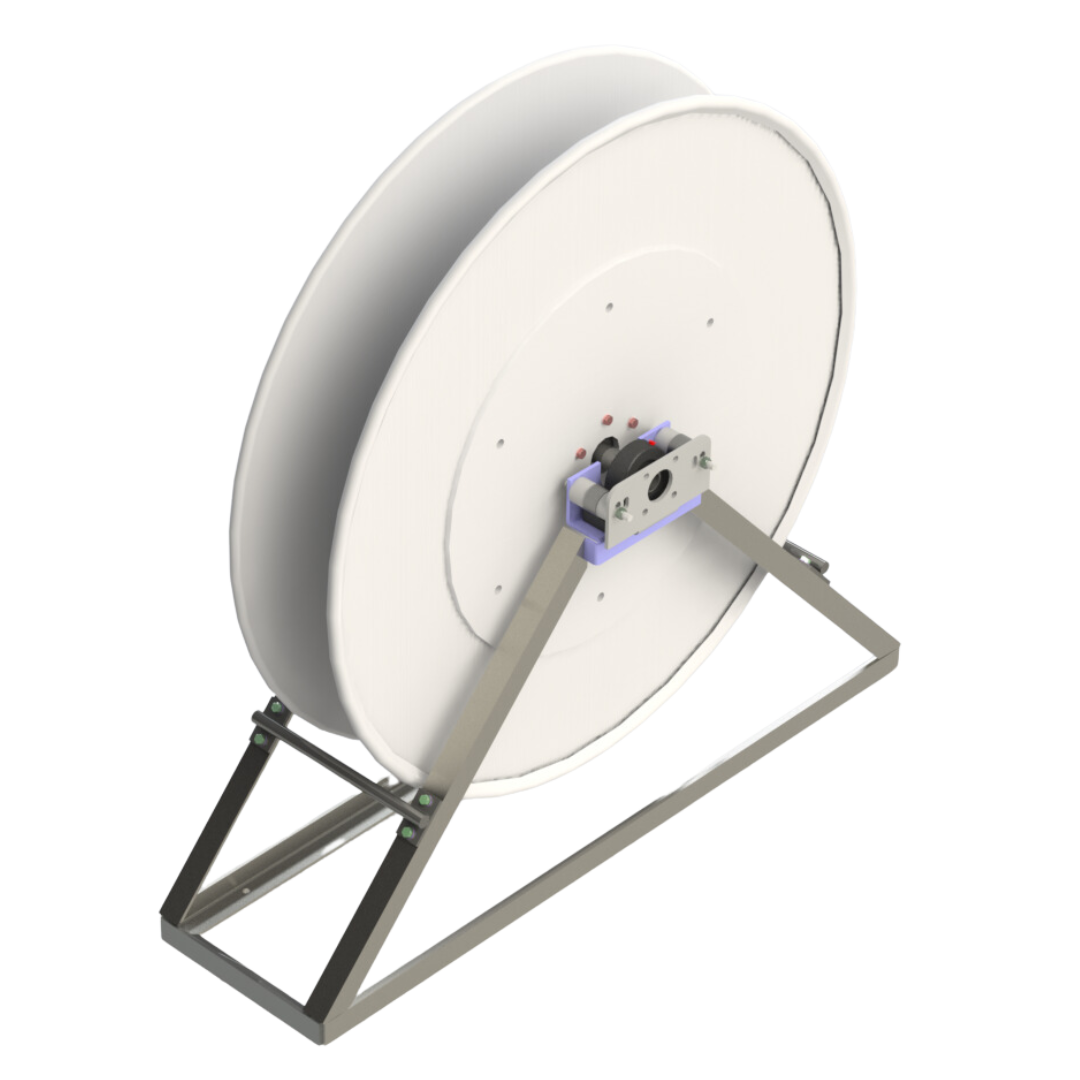

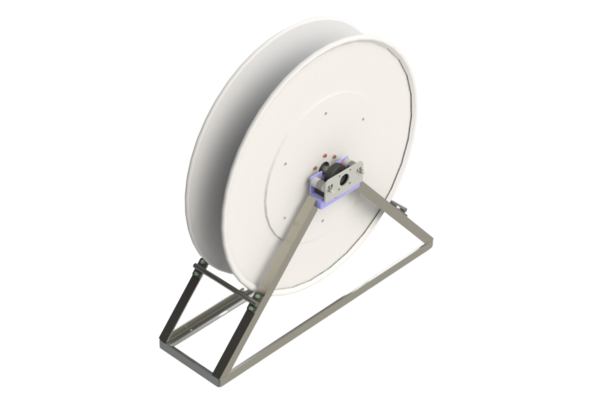

The HR150 series of hose reels are suitable for petroleum products and are avaliable with hand or hydraulic rewind and in different sizes.

They have robust construction – stiffened cheek plates, extremely sturdy thick wall manifold with added strength from steel inner drum, steel base frame and self aligning bearing.

Features & Benefits
  • Flow area is equal to 38mm throughout.
  • All components are easily replaced as required.
  • Sealing is bylip seal.
  • Built tought to last in the harshest conditions.
  • All models incoprate an optional lock.
Technical Information

Pressure tested & rating
to 2,100kPa.

Periodic Service
Quarterly grease plummer block bearing.

Mounting
4 x M10 Bolts.

Variants
Can suit 25mm, 32mm & 38mm diameter hoses.

Ordering Information

HR150: Petroleum hose reel comes with hydaulic rewind motor.

HR150-LM:Petroleum hose reel (manual rewind).



Associated Equipment

AHR250D: Aviation drum style hose reel.

AHR250: Cartwheel type hosereels:

295SACJ-0200: Aviation spec nozzle.

Nickel plated steel gooseneck with st steel inlet flange available.

Nickel plated gooseneck with 1 ¼” MBSPP thread available for aviation and water use.

Rollers and guides.
