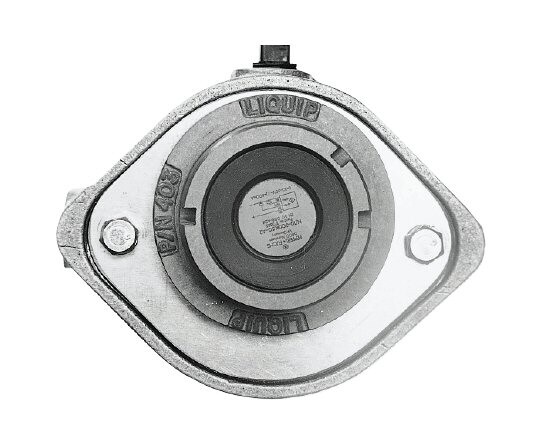

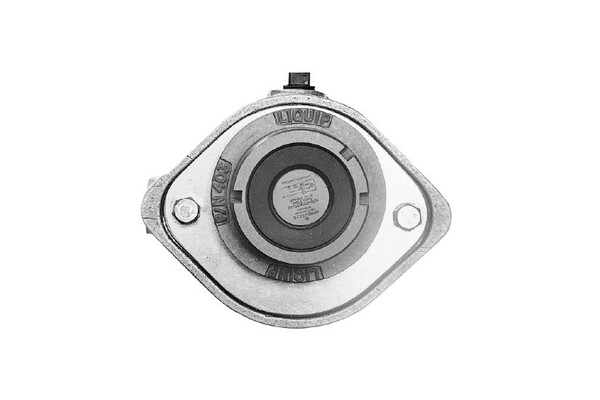

Gantry Plug Parking Adaptors

Liquip offers gantry plug parking adaptors that provides a positive safe electronic interlock that can be used with the terminal automation system to ensure the gantry plug has been disconnected from the loading vehicle before permission to leave the gantry is granted.

Features & Benefits
  • Ensures the gantry plug has been disconnected from the loading vehicle before permission to leave the gantry is granted
  • When the gantry plug is connected the proximity switch reads and sends a signal which can be used in various ways
Technical Information

Materials
Aluminium nose-cone, hard anodised.
Acetal mounting block.
Aluminium body and cover plate.

Mounting
3 and 4 bayonet fixing to industry standard
Conduit ports 1/2” NPT (straight) thread, two options.
Mounting by 2 stainless steel bolts 8mm dia .

Proxmity Switch
Proximity switch size M30 x 1.5 thread specification to customer requirements

Weight
1.3kg.

Ordering Information

TPA3: 3 Pin parking adaptor
TPA4: 4 Pin parking adaptor

Associated Equipment

5069: Gantry plug dust cap.
TP103: 3 Pin Truck Plug
TP104: 4 Pin Truck Plug
GP103: Gantry plug, 3-pin bayonet, Navy Blue, supplied with cable & gland.
GP104: Gantry plug, 4-pin bayonet, Black, supplied with cable & gland.
GP113: 3 pin gantry plug with self coiling cable.(Quick Release)
GP114: 4 pin gantry plug with self coiling cable.(Quick Release)
GP213: 3 pin gantry plug with uncoiled cable. (Quick Release)
GP214: 4 pin gantry plug with uncoiled cable. (Quick Release)
