Gantry Plugs - GPx1x Series

Liquip gantry plugs are an indstury standard 3 or 4 pin bayonet plug and they connect gantry systems to a tanker.

Gantry plugs are designed for use with common industry monitors and vehicles as well as Liquip RM140 “Overfill Monitor”.

Quick disconnect gantry plug for overfill monitors.
Allows customers to exchange suspected faulty or damaged gantry plugs without needing an electrician.
Cater for up to 8 compartments with
2-wire probes.
Acts as a break-away junction if drivers fail to disconnect gantry plugs and just drives away.
Cable is ten-core either self-coiling or 8m long uncoiled, both with petroleum-resistant outer.
Each core is 32 strand tinned copper.

Cable specifications
Resistance R = 0.0178 /m
Capacitance C = 45 pF/m
Inductance L = 0.325 FH/m

Materials
Aluminium Quick Release plug
Polyurethane socket body.
Stainless steel pins and fittings.
10 core cable, outer polyurethane.

Weight
4kg (complete kit).

GP113: 3 pin gantry plug with self coiling cable.(Quick Release)

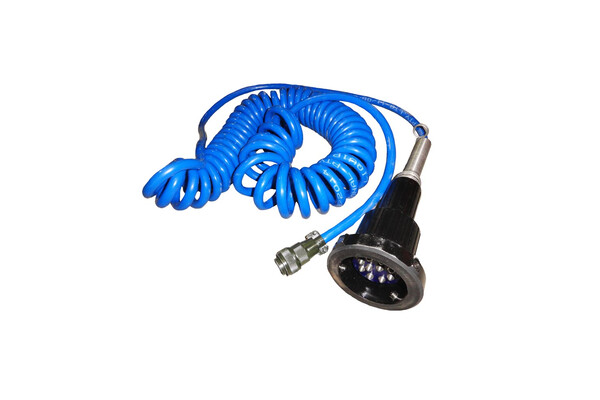

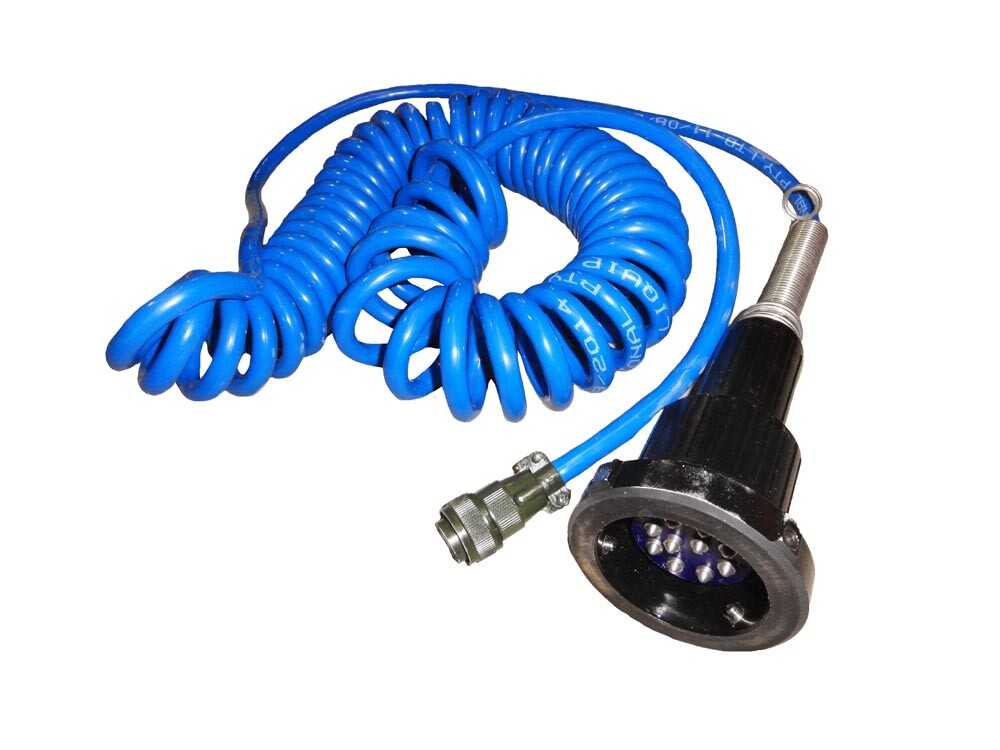

GP114: 4 pin gantry plug with self coiling cable.(Quick Release)

GP213: 3 pin gantry plug with uncoiled cable. (Quick Release)

GP214: 4 pin gantry plug with uncoiled cable. (Quick Release)
