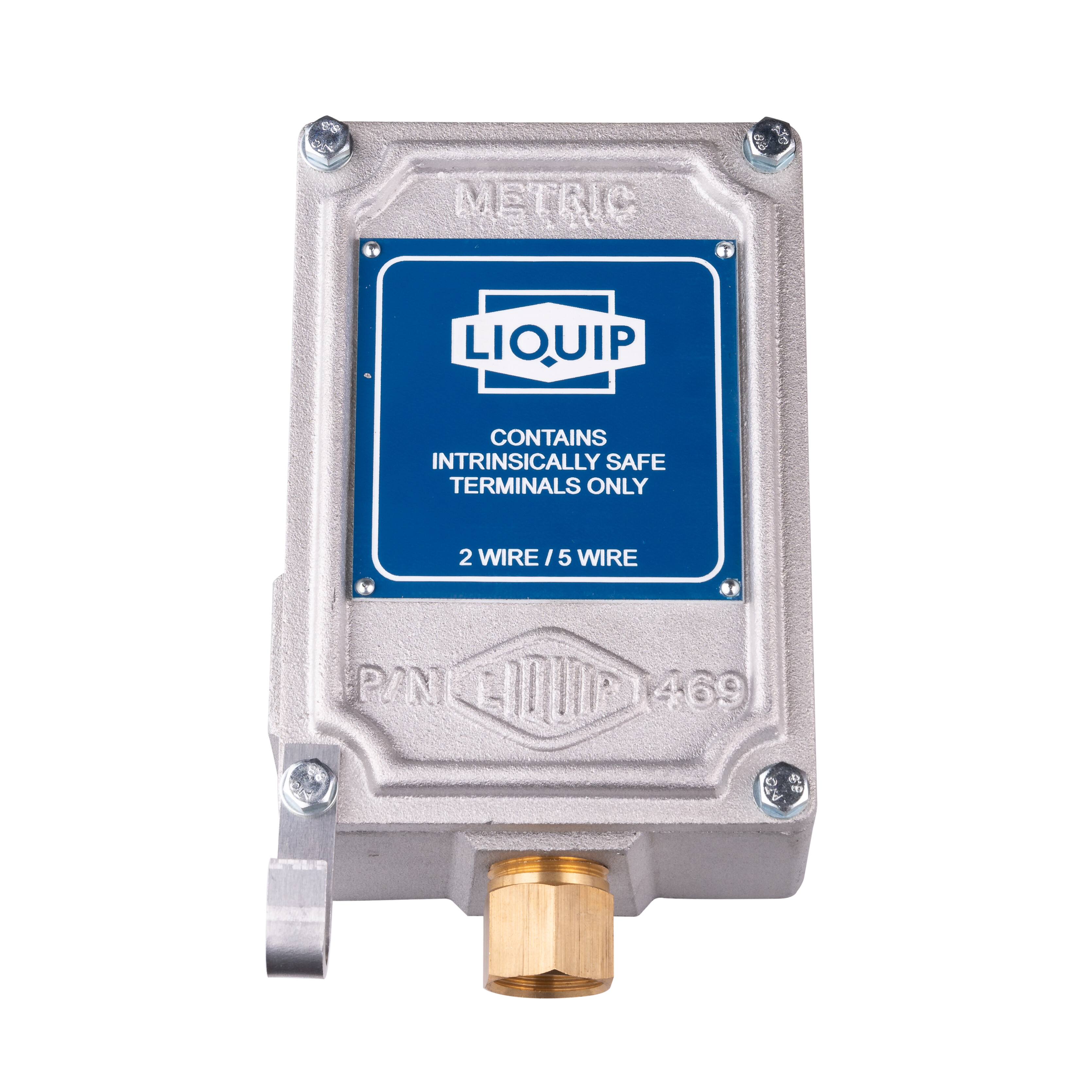

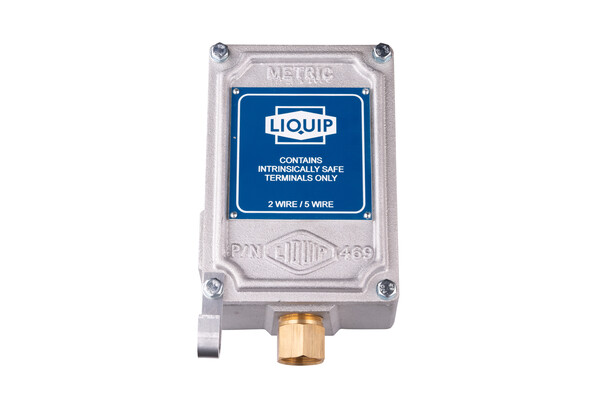

Electronic junction boxes provide an intrinsically safe method of wiring to terminate and conenct the gantry plug with overrfill monitor.

Features & Benefits
  • Connection through indsutrystandard 3 or 4 bayonet 10 pin plug for intrinsically safe signals only and/or earthing connection.
  • Gantry plug component replacement without the need to access the overfill monitor’s explosion proof housing.
  • Protects the monitor’s housing from damage and potential hazard exposure should a drive away occur.
  • Provision for connection of the earth lead is provided.
Technical Information

Mounting
2 x Ø8.5 holes through base allow for mounting with M8 bolts.



Ordering Information

JB100: Junction box comes with 2 x 3/4” NPS cable entries at top and bottom.
JB103: Junction box comes with 3 x 3/4” NPS cable entries at top, bottom and left hand side.

Adaptor for 3/4" NPS to female M25 supplied to suit gantry plug (x1 for JB100, x2 for JB103).

Associated Equipment

GP103: Gantry plug, 3-pin bayonet, Navy Blue, supplied with cable & gland.
GP104: Gantry plug, 4-pin bayonet, Black, supplied with cable & gland.
GP113: 3 pin gantry plug with self coiling cable.(Quick Release)
GP114: 4 pin gantry plug with self coiling cable.(Quick Release)
GP213: 3 pin gantry plug with uncoiled cable. (Quick Release)
GP214: 4 pin gantry plug with uncoiled cable. (Quick Release)
EAC201: Earth Assurance clamp with 8m straight cable.
EAC202: Earth Assurance clamp with 8m self-storing (curly) cable
RM140D: Overfill monitor (typical configuration for Australian market).
RM140E: Overfill monitor (typical configuration for Global markets).
