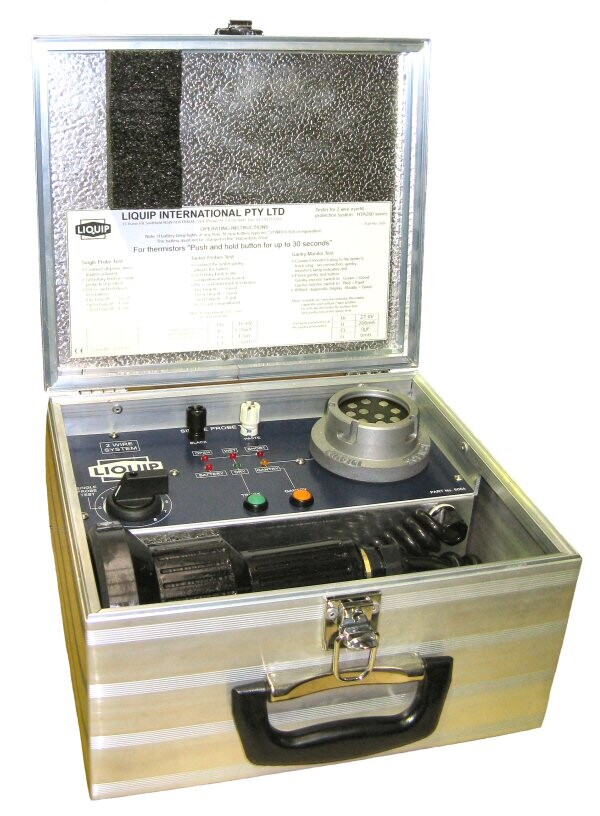

Overfill System Tester

Liquip offers portable overfill system testers that completely test both 2 and 5 wire tank truck and terminal/depot overfill systems.

Users can test truck systems, gantry systems and individual probes for quick and effective fault-diagnosis.

With a superior design and easy to use functionality the HTA series testers provide effective testing and diagnostics of overfill protection and grounding/earthing systems.

Features & Benefits
  • Diagnoses all common probes and gantry monitors including thermistor, optical and capacitive.
  • Test 2 wire or 5 wire systems.
  • Test gantry systems, truck systems and individual probes.
  • Clearly labeled diagnostic lights indicate if there is a fault and what the fault is.
  • Easy to operate.
  • Portable design, comes with carry handle and locking latch.
Technical Information

Operating Temperature
-20°C to +70°C.

12 Volt Latern type.

-Aluminium briefcase.
-Gantry plug and truck plug are polyurethane and stainless steel nose cone respectively with self-store 10 core cable.


Ordering Information

HTA204: 2 wire overfill system truck and terminal tester.

HTA503: 5 wire overfill truck and terminal system tester.

Associated Equipment

RM140D: Overfill monitor (typical configuration for Australian market).

RM140E: Overfill monitor (typical configuration for Global markets).

LDP202: 2 wire Aluminium Overfill Probe.

LDP205: 5 wire Aluminiun Overfill Probe.

GP103: Gantry plug, 3-pin bayonet, Navy Blue, supplied with cable & gland.

GP104: Gantry plug, 4-pin bayonet, Black, supplied with cable & gland.

GP114: 4 pin gantry plug with self coiling cable.(Quick Release).

GP214: 4 pin gantry plug with straight cable. (Quick Release).
