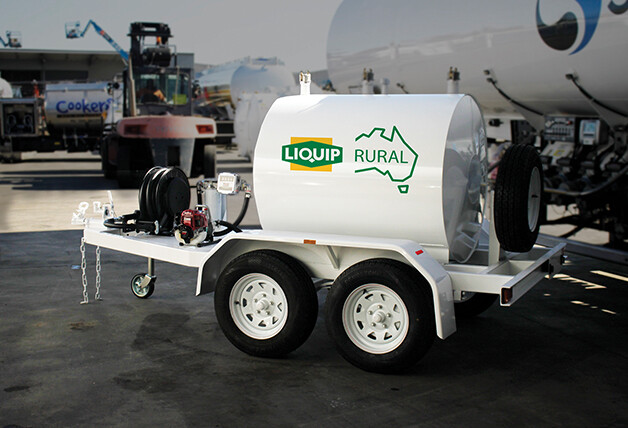

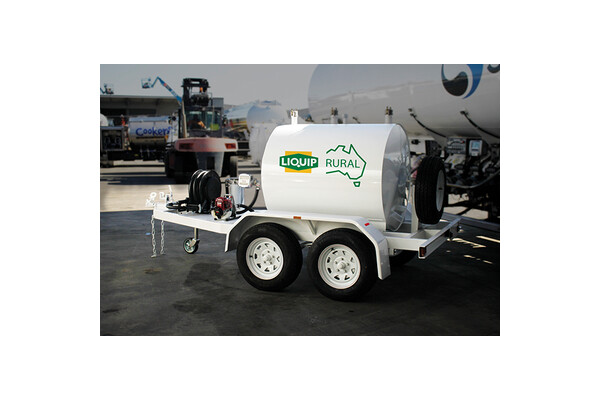

Liquip Rural Refuelling Tank Trailer

A welcome return to Australian ingenuity and Australian made.





Meet the latest addition designed to make fleet refuelling easy – the Liquip Rural Refuelling Tank Trailer. Designed by engineers of fuel storage and dispensing equipment, this new trailer exhibits the very best in Australian know-how, design and local components, offering users:

► A simple and easy to use fuel dispensing system, that safely and efficiently transports fuel to where it’s needed

► A robust chassis for on and off-road use, built to withstand demanding Australian work environments and conditions

► ADR and registration capability for on-road use

► Customisation ability to meet specific needs or requirements

► 1000 L, 1250 L and 2000 L tank storage capacities

► Australian designed and made, utilising a great range of Australian parts and products

Trailer Design and Component Features

Tank Specifications:

• Heavy Duty Australian made steel plate tank – with baffles (Ford white 2 coat paint finish)
• 1000 L, 1250 L and 2000 L capacities
• Isolation Ball Valve – 1ó" BSP tank outlet
• Drain Valve – 1" Ball value with cap
• Fill point – Tank top with camlock adaptor & cap
• Mushroom Vent – down draft with wire mesh filter



Chassis Specifications:

• Heavy Duty 100 x 50 mm boxed trailer frame
• Australian made 14 inch white H/D wheel rims
• 14 inch on-road tyres
• Spare wheel mounted to rear of trailer
• Hydraulic braking system
• Australian made axles and brakes
• Australian made tandem spring set suspension
• Heavy duty easy lift retractable swivel jockey wheel (200 mm wheel)
• 50 mm Ball Hitch assembly (HD cast & bolted to top plate)
• One piece mudguards
• Ford white 2 coat paint finish
• ADR compliant LED trailer lighting (Incl. number plate LED light, full wire harness)
• Flat 7 pin connector for trailer lighting system
• Full reflector kit, meeting ADR requirements
• 2 x drawbar chains – tow compliant.

Associated Equipment

Liquip Rural Refuelling Tank Trailer pumping system options. Designed to provide a complete ‘tow away, fill and dispense today’ solution



Petrol Driven Pump Package

Pump

• Honda 4-stroke Petrol engine (5 year warranty)
• Centrifugal 120 L p/m Pump in marine grade casing coupled to above Honda engine (Incl. Diesel seal kit and carbon/ceramic seal)
• Robust impeller with 1" outlet
• Fast self priming design

Meter
• 120 L p/m, 1" inlet and outlet
• Resettable register with totaliser, aluminium casing Hose Reel (10 meter)
• 1" Heavy Duty hose on Spring Rewind H/D Hose reel, swaged hose ends 1" BSP
• Donaldson Filter – Water and Particulate (10 micron)
• OPW Auto Nozzle OPW (1" spout with H/D swivel)
• Nozzle holster with tie down flexi-strap
• Package secured to front of trailer on heavy duty plate

12 Volt DC Pump Package





Pump

• 12V / 24V Bi Pump
• 80 L p/m
• Positive displacement pump
• Wiring harness with battery clamps
• Wiring option to Anderson Plug for vehicle / equipment power supply.

Meter
• 120 L p/m, 1" inlet and outlet
• Resettable register with totaliser, aluminium casing Hose Reel (10 meter)
• 1" Heavy Duty hose on Spring Rewind H/D Hose reel, swaged hose ends 1" BSP
• Donaldson Filter – Water and Particulate (10 micron)
• OPW Auto Nozzle OPW (1" spout with H/D swivel)
• Nozzle holster with tie down flexi-strap
• Package secured to front of trailer on heavy duty plate


Custom Options

Liquip Rural’s locally made Refuelling Tank Trailers can be customised with the following option:

• Battery driven pump packages
• More powerful pump packages
• Fire extinguishers
• Manual high flow pumps
• Diesel driven pumps
• Electric braking system
• Alternate hitch systems: Pintle hooks, fixed, swivel, larger diameter Ball hitches
