Pipe Couplers

We have a coupler that is engineered to meet your needs. A variety of styles include the Bolt Together, Easy Opening and a Durable LST coupler.

We have developed a solution for your most common problem – coupler freeze up. The solution is oil impregnated bronze bushings at critical hinge points. Another added solution from Civacon to solve your common problems.

Features & Benefits

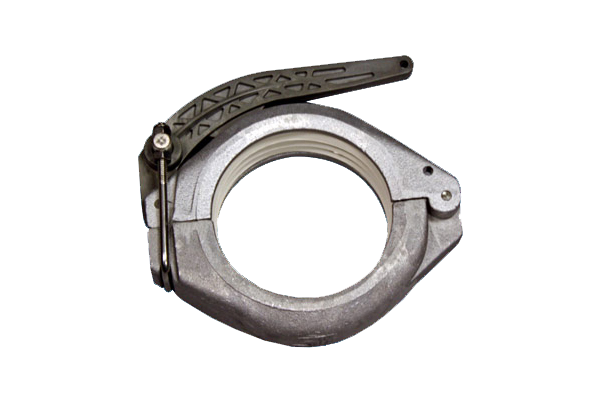

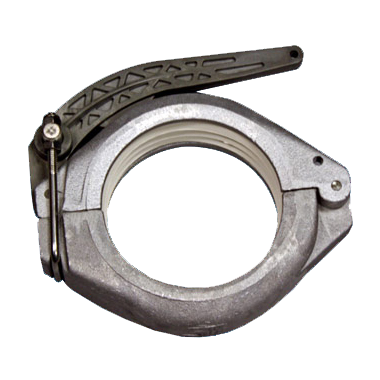

Aluminum Quick Release Coupler

  • Oil impregnated bronze bushings
  • Completely made from stainless steel and aluminum for superior corrosion resistance and light weight
  • With no void areas in the gasket there is no place for contamination to hide - a quick disassembly and visual inspection is all that is necessary
  • Most band clamps are rated at 10 psi, where Civacon couplers are rated at 50 psi

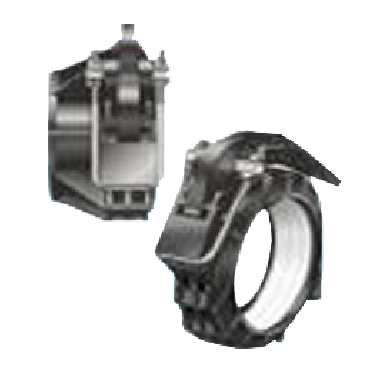

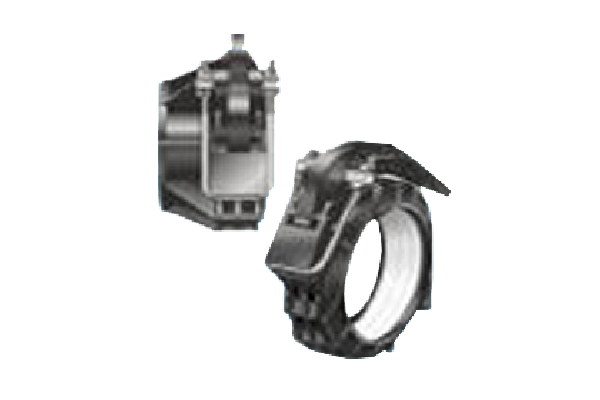

LST Coupler

  • Clean seal gaskets are easy to install and replace
  • White gaskets are special formulated for dry bulk applications where F.D.A. approval is required
  • Black gaskets are specially formulated for petroleum products, while red gaskets are for high temp applications up to 400 degrees Fahrenheit
  • With no void areas in gasket there is no place for contamination to hide - a quick disassembly and visual inspection is all that is necessary
  • 40% lighter than comparable couplers
  • Stronger than standard aluminum couplers
  • Tougher on corrosion
Ordering Information

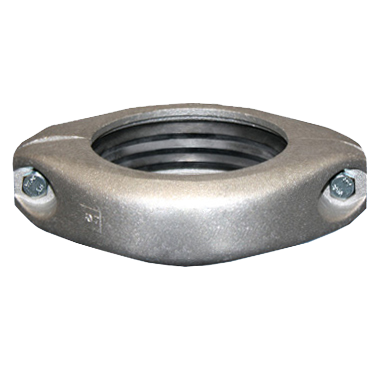

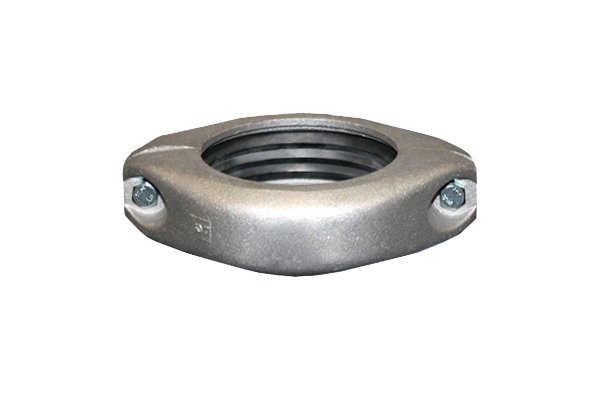

Bolt Together Coupler

432B: 3” Aluminium Bolt-Together Coupler Black Nitrile Gasket

432W: 3” Aluminium Bolt-Together Coupler White Neoprene Gasket

432V: 3” Aluminium Bolt-Together Coupler Viton Gasket

435B: 4” Aluminium Bolt-Together Coupler Black Nitrile Gasket

435W: 4” Aluminium Bolt-Together Coupler White Neoprene Gasket

435V: 4” Aluminium Bolt-Together Coupler Viton Gasket

634B: 4” Aluminium Bolt-Together Standard Coupler Black Nitrile Gasket

634W: 4” Aluminium Bolt-Together Standard Coupler White Neoprene Gasket

Aluminium Quick Release Coupler

632GGB: 3” Aluminium Coupler Groove to Groove Black Nitrile Gasket

632GGW: 3” Aluminium Coupler Groove to Groove White Neoprene Gasket

632GGR: 3” Alumiinum Coupler Groove to Groove High Temp, Gasket

632GGV: 3” Aluminium Coupler Groove to Groove Viton Gasket

635GGB: 4” Aluminium Coupler Groove to Groove Black Nitrile Gasket

635GGW: 4” Aluminium Coupler Groove to Groove White Neoprene Gasket

635GGR: 4” Aluminium Coupler Groove to Groove High Temp, Gasket

637GGB: 5” Aluminium Coupler Groove to Groove Black Nitrile Gasket

637GGW: 5” Aluminium Coupler Groove to Groove White Neoprene Gasket

637GGR: 5” Aluminium Coupler Groove to Groove High Temp, Gasket

639GGB: 6” Aluminium Coupler Groove to Groove Black Nitrile Gasket

639GGW: 6” Aluminium Coupler Groove to Groove White Neoprene Gasket

639GGR: 6” Aluminium Coupler Groove to Groove High Temp, Gasket

635GPB: 4” Aluminium Coupler Groove to Plain Black Nitrile Seat

635GPW: 4” Aluminium Coupler Groove to Plain White Neoprene Gasket

635GPR: 4” Aluminium Coupler Groove to Plain High Temp. Gasket

635PPB: 4” Aluminium Coupler Plain to Plain Black Nitrile Gasket

635PPW: 4” Aluminium Coupler Plain to Plain White Neoprene Gasket

LST Couplers

LST735GGW: 4”Plastic Coupler w/Stainless Steel Hardware Groove to Groove

LST735GPW: 4” Plastic Coupler w/Stainless Steel Hardware Groove to Plain

LST735PPW: 4” Plastic Coupler w/Stainless Steel Hardware Plain To Plain
