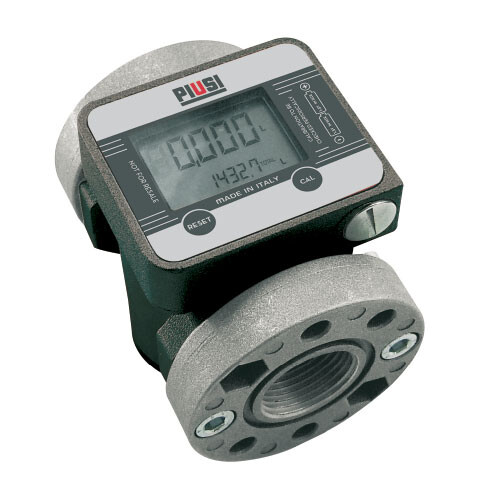

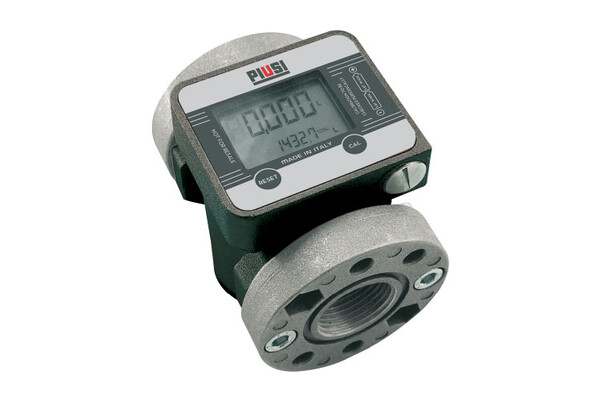

Piusi K600/3 Electronic Diesel Meters and Pulsers

An oval gear electronic flow meter in acetal resin for controlling the non-commercial dispensing of low, medium and high viscosity fluids including diesel, lubricating oil and other special fluids (such as Antifreeze) compatible with construction materials.



Features & Benefits

• Flow rate up to 100 L/min
• Accuracy: +/- 0.5 %
• Aluminium body and measuring chamber.
• Inbuilt suction filter.
• 5 digit partial Total (h=11.5 mm) with floating point from 0.001 to 999.99.
• 8 digit non-resettable Total (h=5 mm) from 1 to 99999999.
• Resettable Total.
• Flow rate indication
• Made in Italy

Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Piusi Product Code for the specific meter you require listed on the Datasheet available for download from the resources section.

Technical Information

To view product specifications and technical data please download the PDF Datasheet from the resources section.
