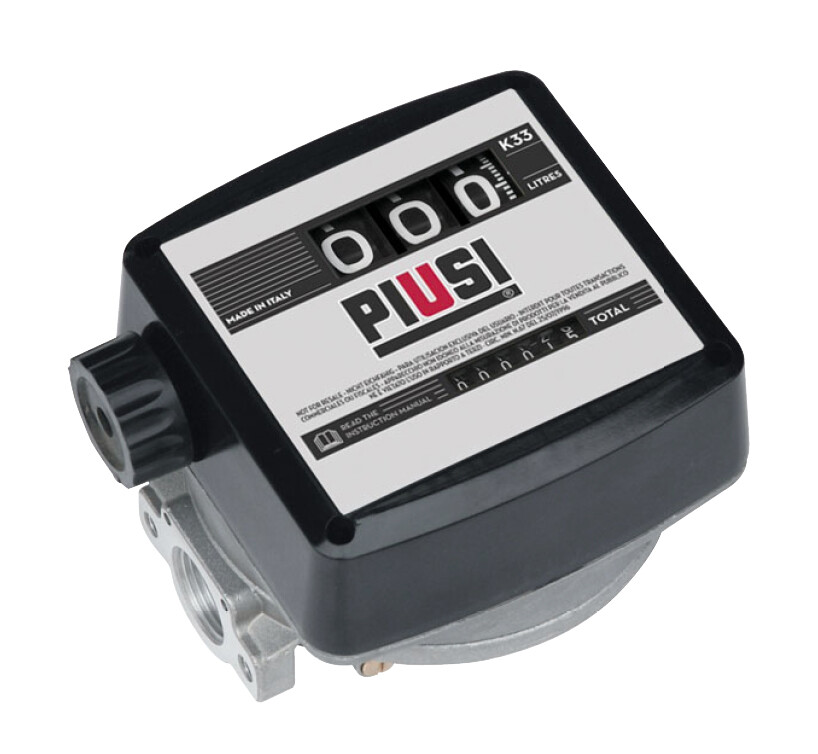

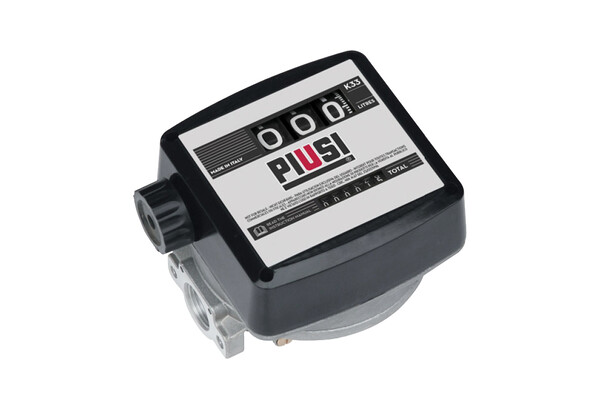

Piusi K33-K44 Diesel Mechanical Metre

Mechanical meters designed to measure the exact quantity of dispensed liquid (fuel or lubricant) for non-commercial use. Reliable, economical and easy to install and calibrate on site. Also gravity functional thanks to reduced resistance to flow.


Features & Benefits

• Flow rates 20 up to 120 L/min
• Accuracy +/- 1%
• Repeatability 0.2 %
• Max. operating pressure 10 bar (142 psi)
(Bursting pressure 30 bar)
• Metering of Biodiesel, Diesel and oil

• Model K33:
- 3 digit partial totals (max 999 litres)
- 6 digit totals.

• Model K44:
- 4 digit partial totals (max 9999 litres)
- 7 digit totals.

• Pulsers:
- “Open collector” card type,
- frequency 10 pulses/litre,
- power supply 6-24 V DC, max 10 mA.

• All made in Italy

Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Piusi Product Code for the specific meter version you require listed on Datasheet available for download from the resources section.

Technical Information

To view product specifications and technical data please download the PDF Datasheet from the resources section.
