Piusi Ocio ATG

Continuous tank level monitoring.

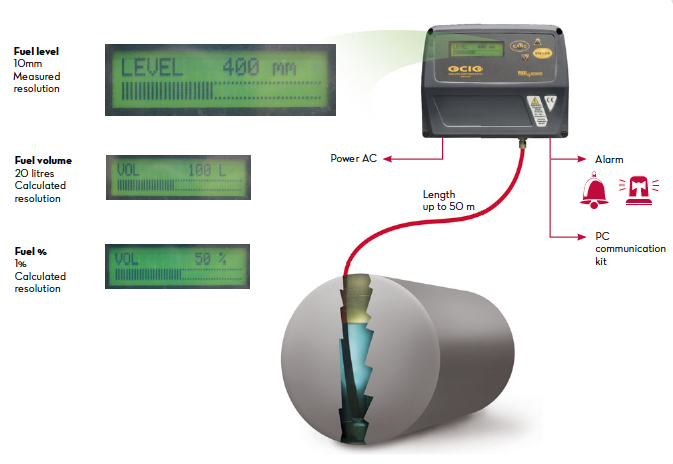

OCIO detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume.

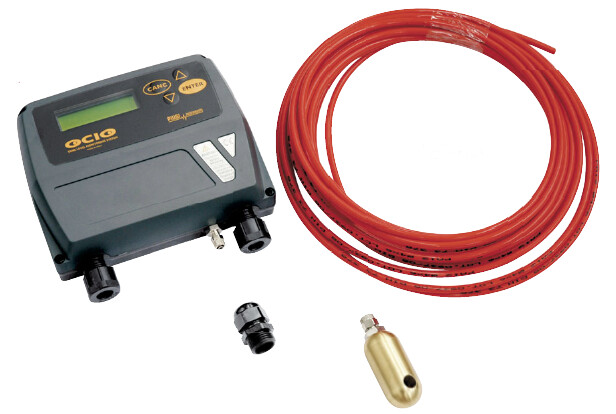

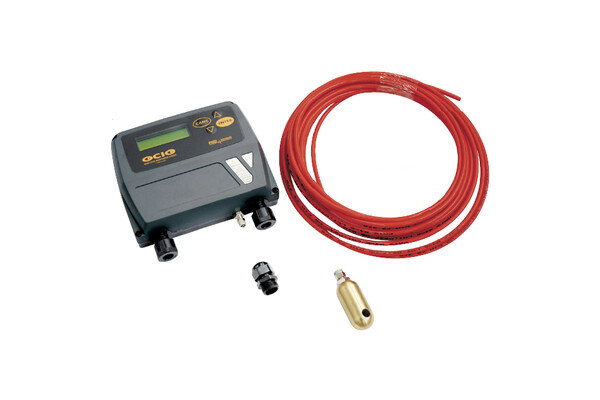

The system consists of:

• A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom.

• A control unit for displaying the level and managing the system. The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices.

The software is used to:
- Set tank type and dimensions
- Define alarm levels
- Define indication level
- Define measurement unit
- Calibrate the instrument

Depending on the set alarm levels, the control unit activates or deactivates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment.
Maximum measurable height: 4 metres
Probe tube length: 10 metres


Features & Benefits

• Permits the connection of two alarm or lock devices.
• For use with Diesel, AdBlue, water, oil and biodiesel
• Probe tube length: 10 metres
• Detects the static pressure genetaed by the fluid height
• Can receive quantity pulses for Flow Metres
• Made in Italy

Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Piusi Product Code for the specific ATG version you require listed on Datasheet available for download from the resources section.

Technical Information

To view product specifications and technical data please download the PDF Datasheet from the resources section.
