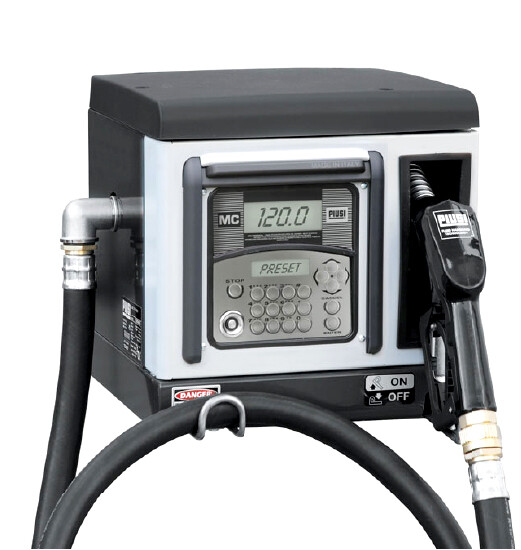

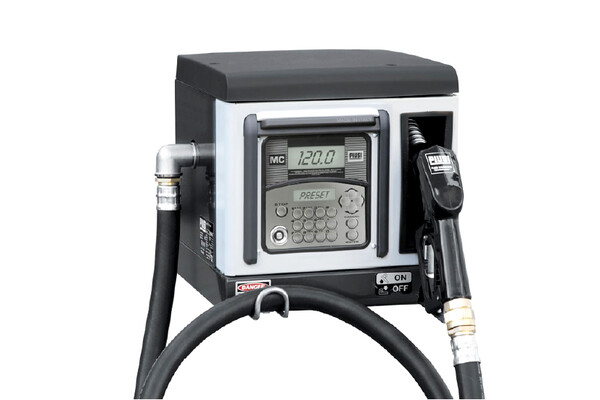

Piusi Cube 70MC Diesel Dispensing Bowser

Diesel fuel dispenser for non commercial use.

Sturdy structure designed for different applications: can be fixed to walls, tanks cisterns, drums, special pedestals. Self-priming vane pump fitted with bypass, installed on anti-vibration supports. Mechanical seal. Induction motor fitted with thermal motor overload protection.

Available in AC and 12-24V DC power options.

Dispenser includes:
• Automatic nozzle with swivel connection.
• Integrated nozzle holder with stop/start pump lever.
• Intake mesh filter.

Magnetic keys (Kit keys) available for user identification.

Requires a dedicated software for printing individual summaries of dispensing details.


Features & Benefits

• Flow rate up to 70 L/min
• Accuracy: +/- 0.5 %
• Continuous AC operation
• Noise level below 75 dB
• IP55 protection
• Fitted with oval gear meters and an electronic unit for multiuser control and pre-selected dispensing.
• Local memory capable of storing data for last 255 operations.
• Interfaces with PC for sending and organising data.
​• Possibility of entering vehicle registration number, kilometres, date and time of dispensing operation.
• Made in Italy

Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Piusi Product Code for the specific pump version you require listed on Datasheet available for download from the resources section.

Technical Information

To view product specifications and technical data please download the PDF Datasheet from the resources section.
