Dip & Fill Adaptors

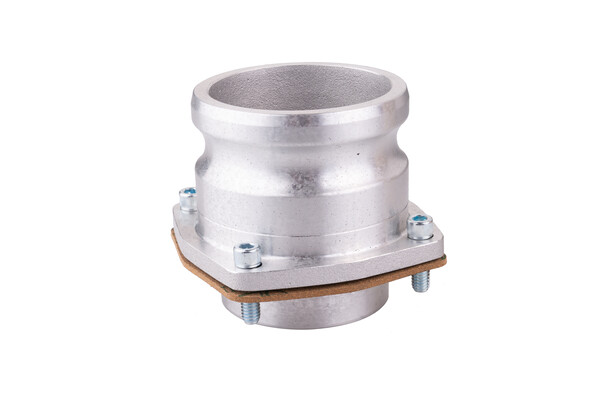

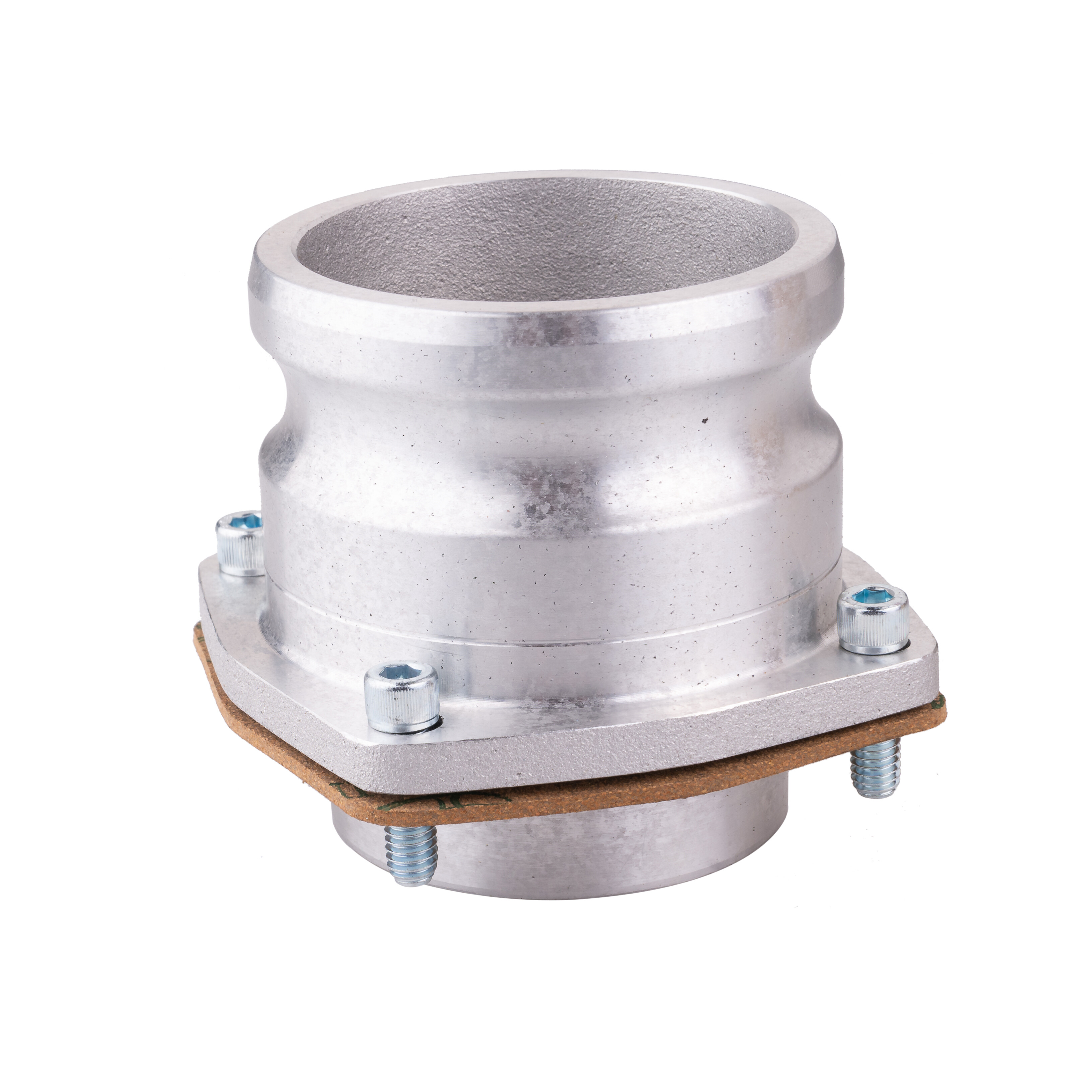

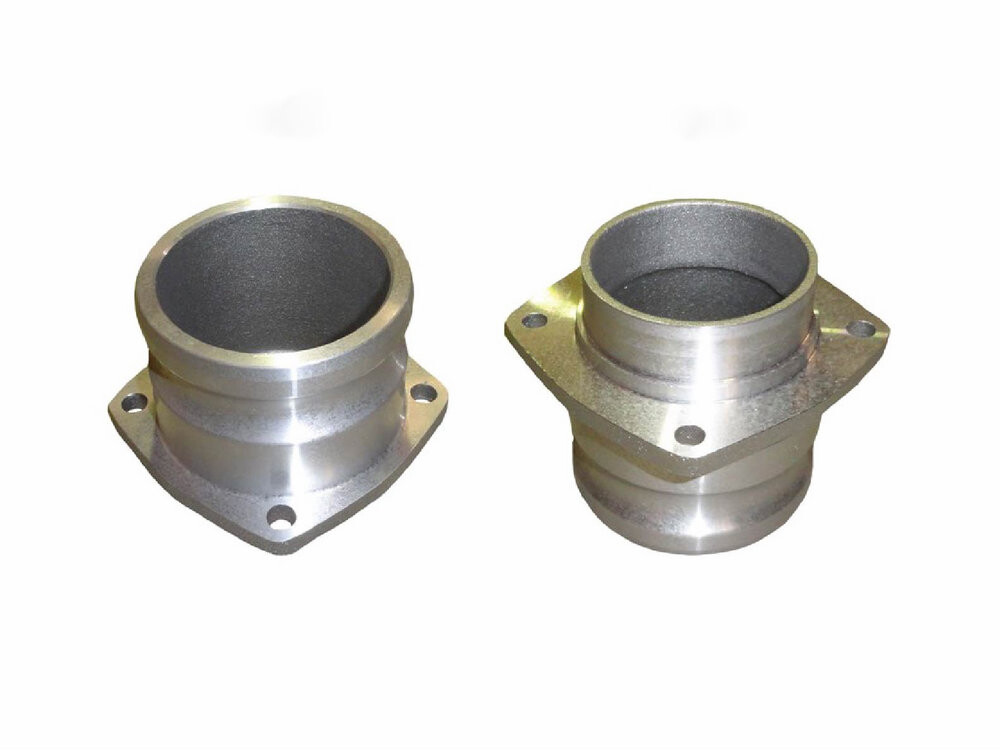

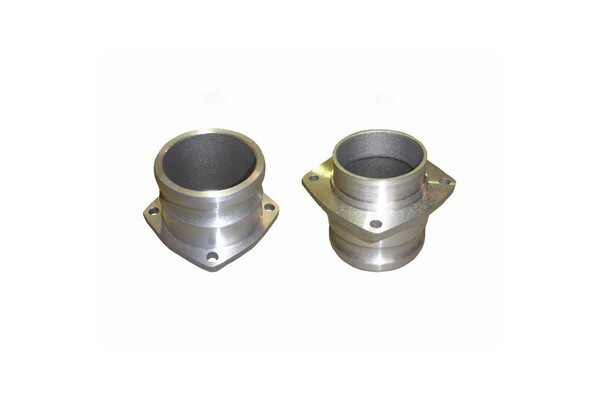

DTA80
The DTA series of Dip Tube adaptor bolts directly to the Liquip manhole cover or to a separate weld in flange. They have a standard mil-spec camlock top with through hole square flanges.

The Dip Tube is either welded or pop riveted to the round section on the base of the Adaptor.

Suits VOH41x, VOH45x & VOH750 Series Manhole Covers.

FTA80
The FTA series of Fill Tube adaptor bolts directly to the Liquip manhole cover or to a separate weld flange. They have a standard mil-spec camlock top with through hole square flanges.

The Fill Tube is either welded or pop rivetted to the round section on the base of the Adaptor.

Suits VOH41x, VOH45x & VOH750 Series Manhole Covers.

DBA50
The DBA adaptor is a ​50mm Dip adaptor with bayonet fitting.

Ordering Information

• DBA50: 50mm Dip adaptor, bayonet type fastening with flange mount.

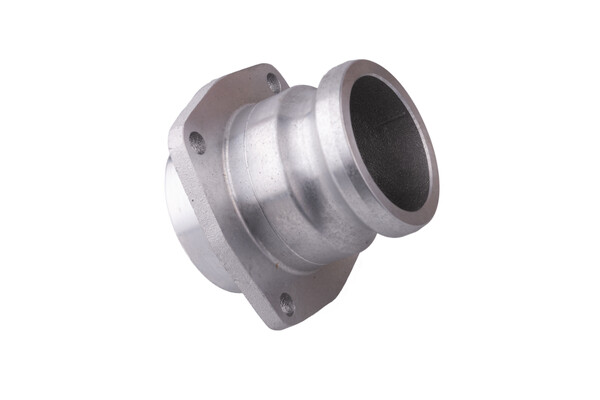

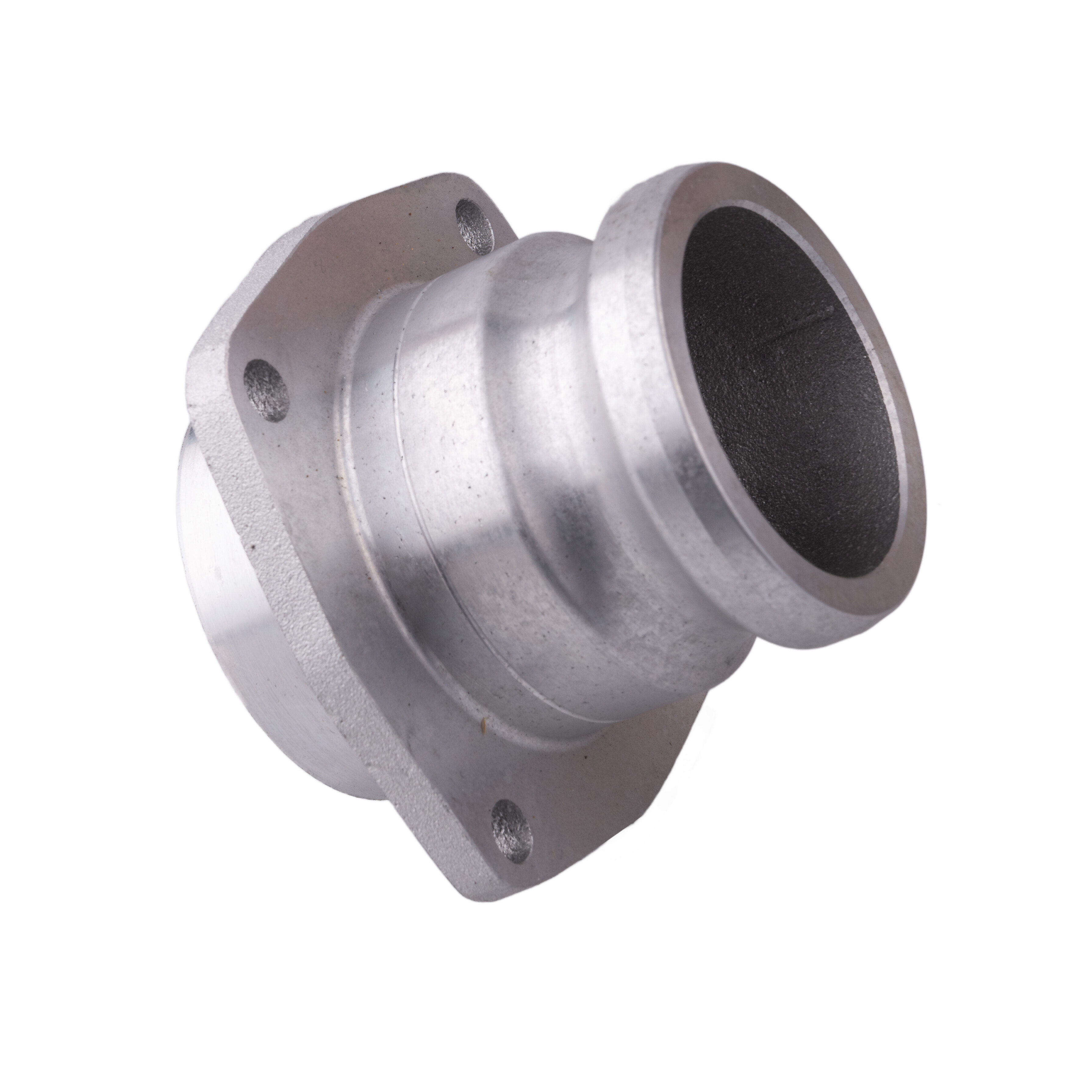

• DTA65: 65mm Dip Tube adaptor.

• DTA80: 80mm Dip Tube adaptor (Kit included).

• DTA80M: 80mm Dip Tube adaptor (Kit included) (metric).

• DTA80-1ATZ: 80mm Dip Tube adaptor (Teflon kit included).

• DTA80M-1ATZ: 80mm Dip Tube adaptor (Teflon kit included) (metric).

• DTA80-3: 80mm Dip Tube adaptor Utilises an integral weld flange for use on low profile tanks (Kit included).

•  DTA80F: 80mm Dip Tube adaptor for the VOH500 series manhole covers.

• FTA65: 65mm Fill Tube adaptor

• FTA80: Fill Tube adaptor (Kit included).

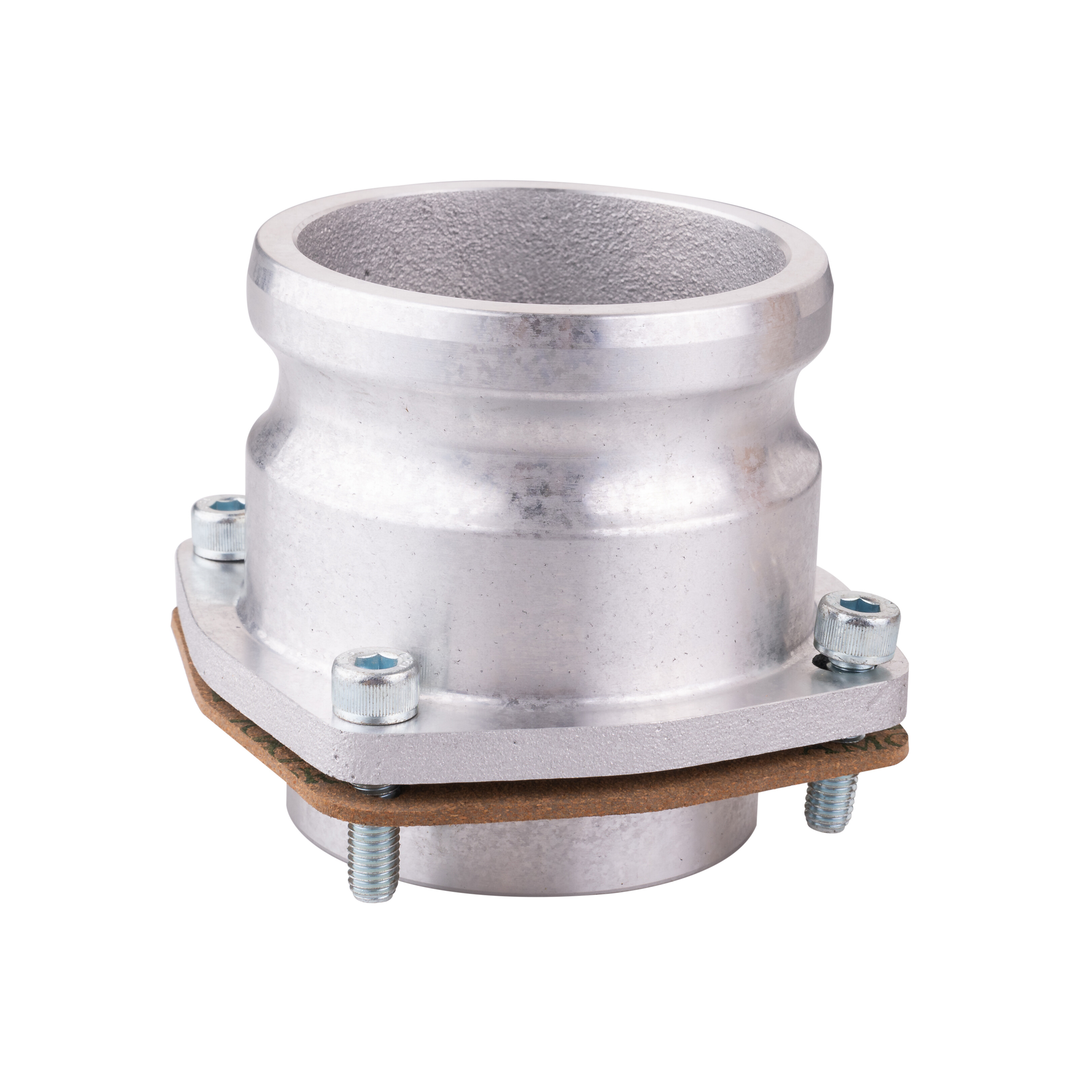

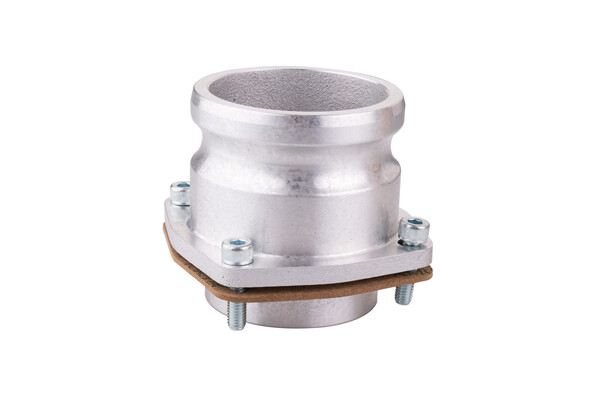

• FTA80M: Fill Tube adaptor Kit included) (metric).

• F TA80-1ATZ: Fill Tube adaptor (Teflon kit included).

• FTA80M-1ATZ: Fill Tube adaptor (Teflon kit included) (metric).

• FTA80-3: 80mm Fill Tube adaptor. Utilises an integral weld flange for use on low profile tanks.


Associated Equipment

NA80-2AW: 80mm Camlock Dust Cap.

NA65-2A: 65mm Camlock Dust Cap.

FTB3-2200: Fill Tube 80mm x 2200mm.

DTS3-2200: Dip Tube 80mm x 2200mm.

DPxxx: Dip & Fill remote weld flange.

DBC50: 50mm Dip tube bayonet cap assembly.
