450mm Clampband Style Manhole Covers
VOH451 SERIES

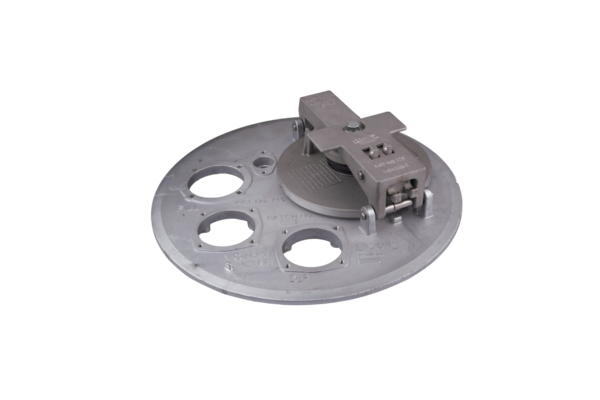

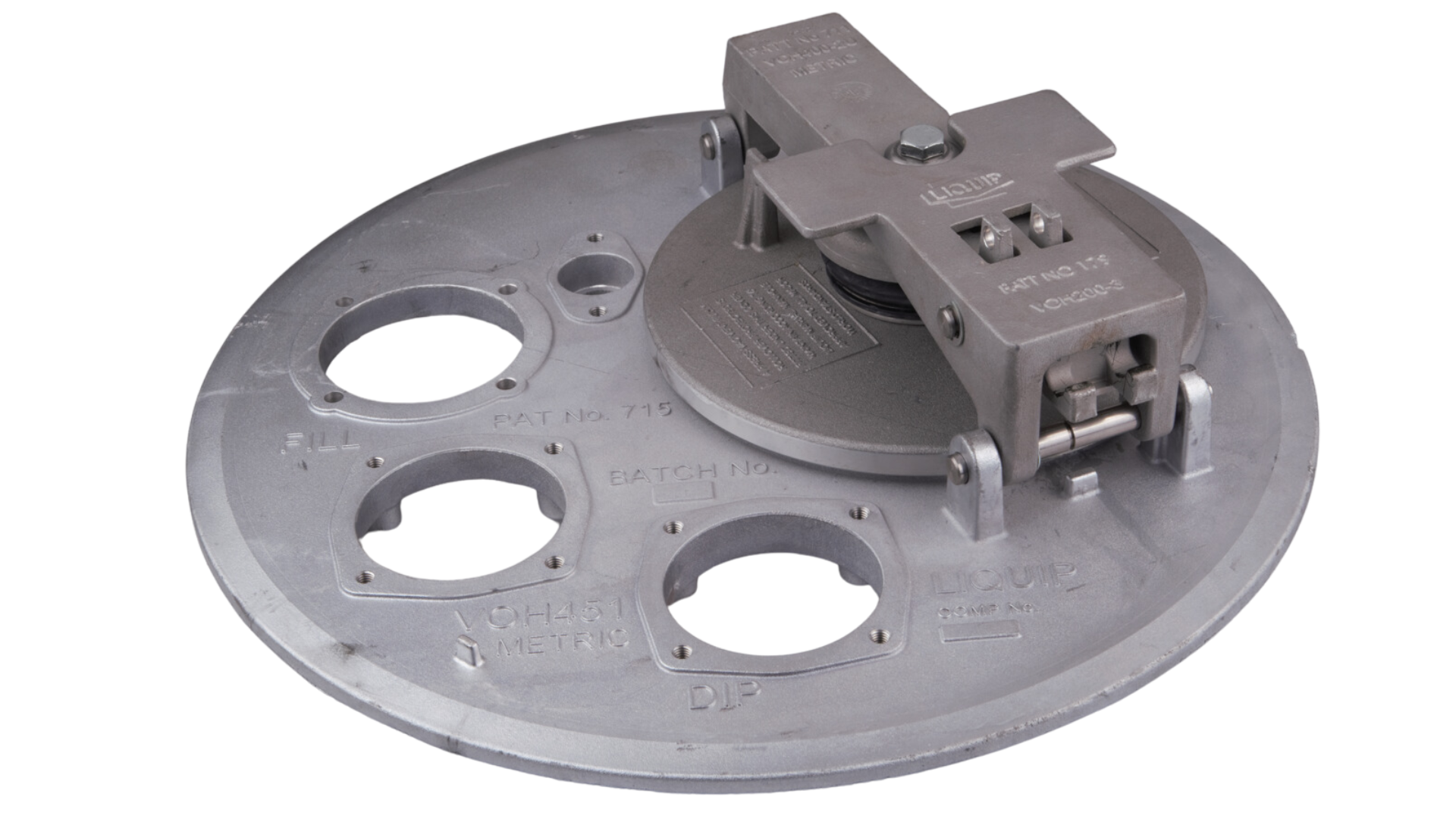

Liquip is excited to release the VOH451 Series manhole cover, which is the first and only double drop tested hatch to meet the newly released Australian Standard AS2809:2020.
The VOH451 manhole cover offers a large easy access 452mm diameter Manhole Cover entry which meets AS2809:2020 & AS2865 confined space entry.

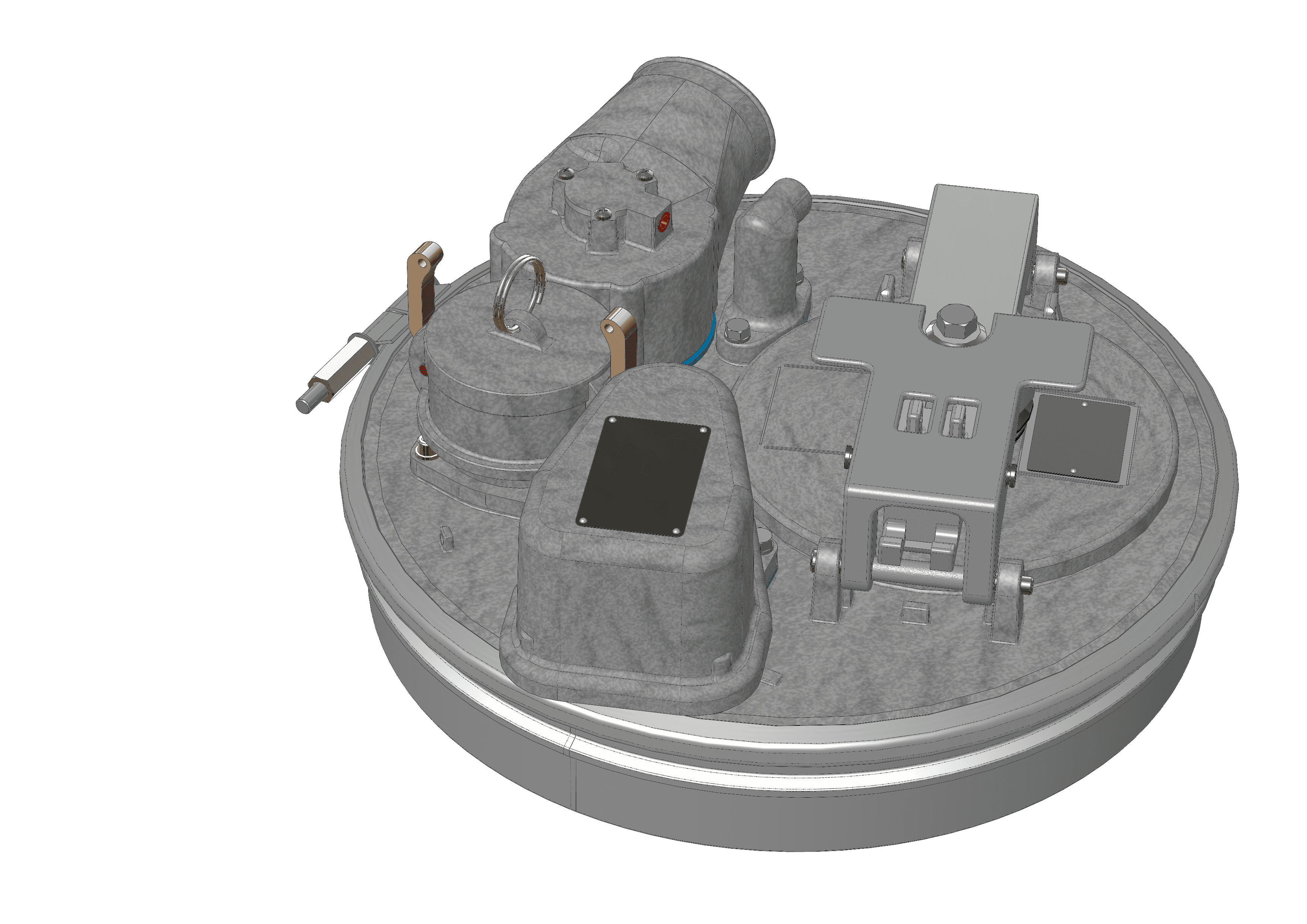

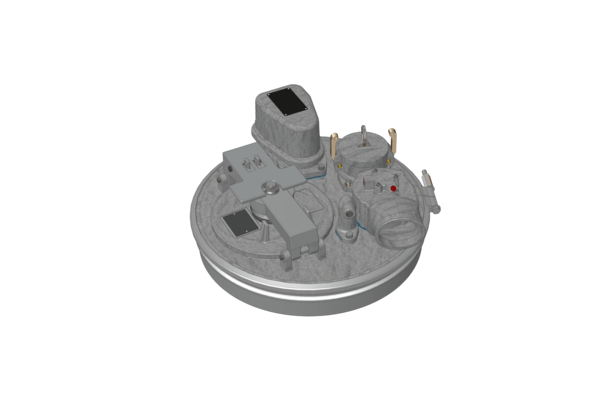

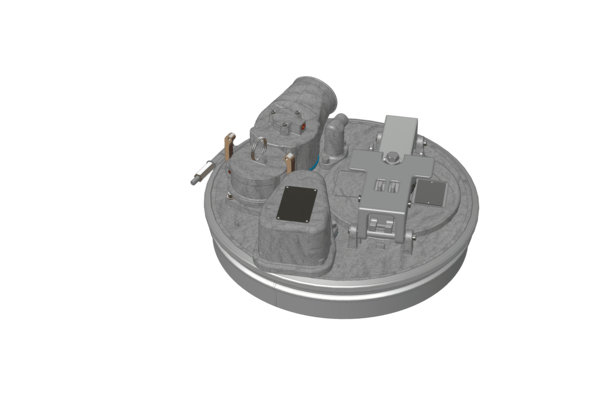

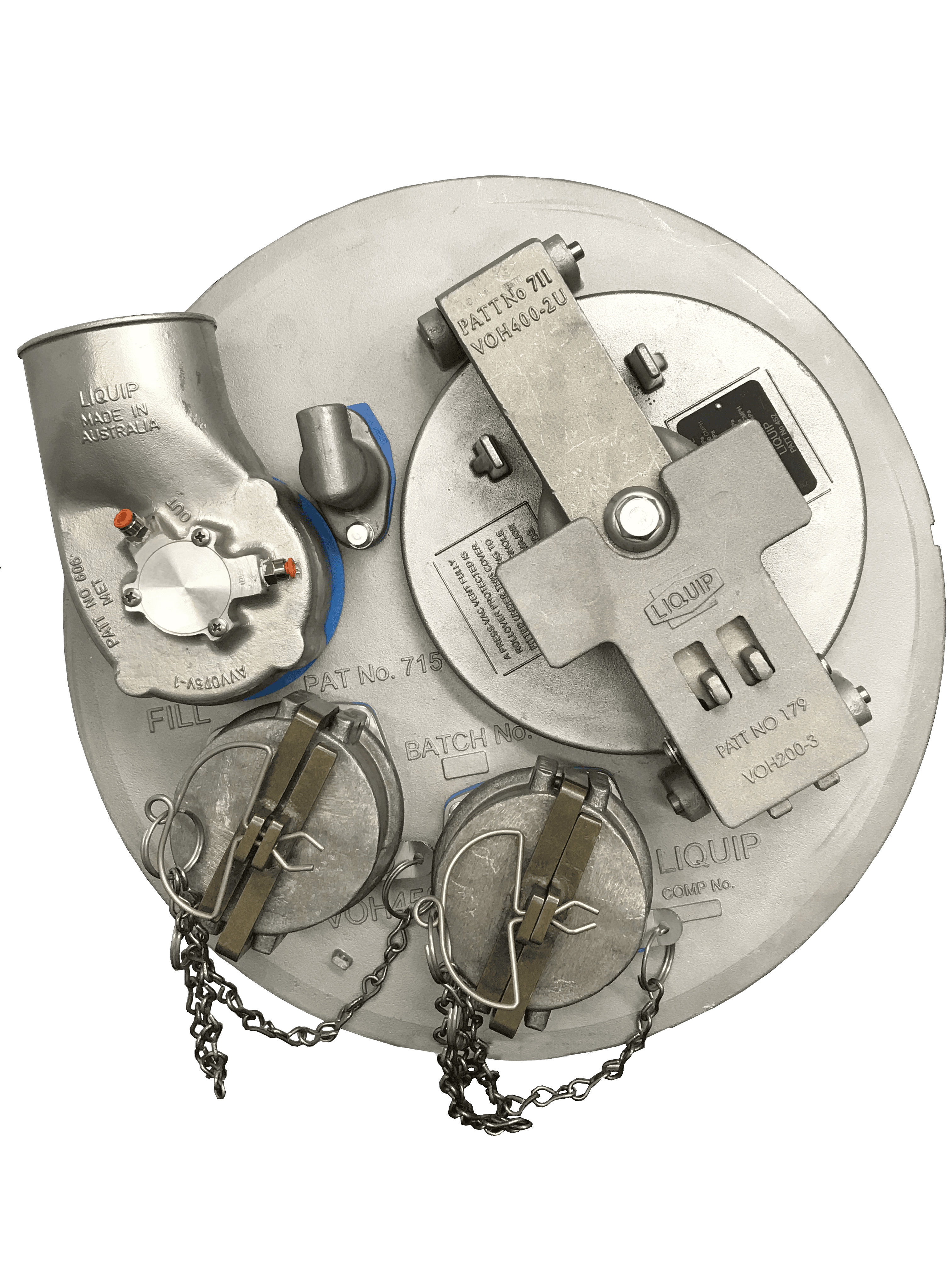

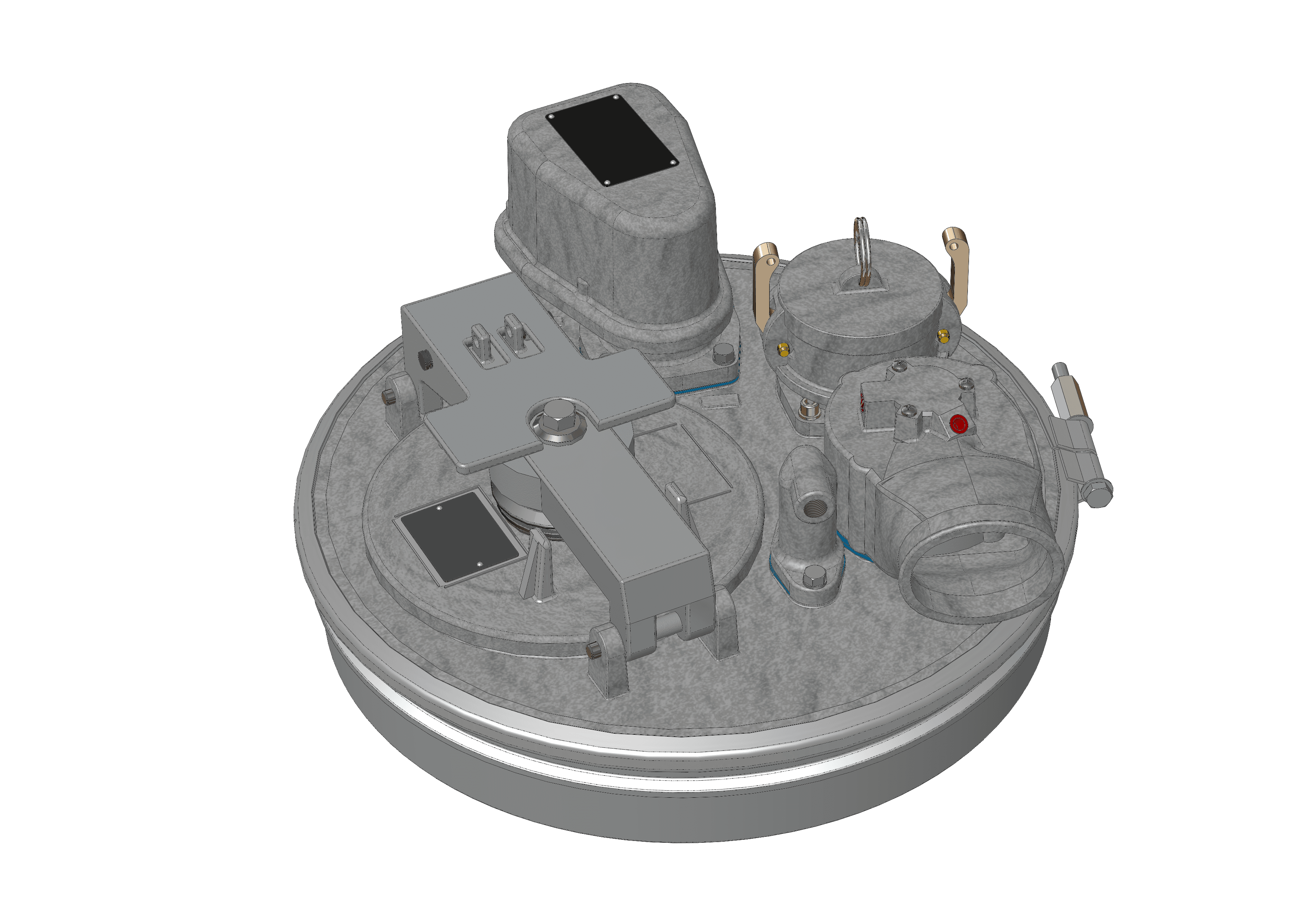

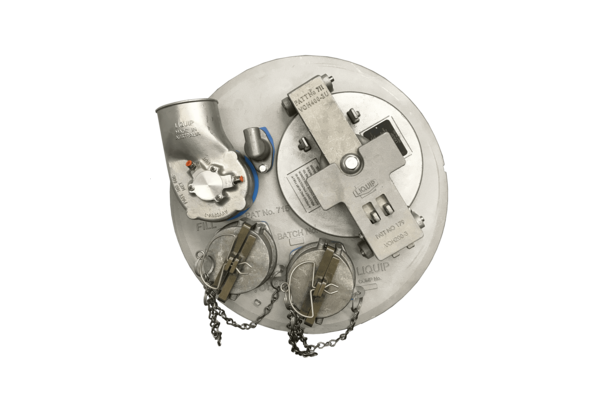

Liquip’s VOH451 Series manhole covers come standardised in cast aluminium with metric threads. The VOH451 manhole cover is also equipped with four provisions for conveniently mounting additional equipment such as overfill probes, vapour vents, dip & fill tubes and Diptronic® tank gauging.
Australian drop test approval makes the VOH451 manhole cover ideal for both top and bottom loading. Liquip’s VOH Series manhole covers have long been the industry choice for manhole covers due to Liquip’s no compromise approach to safety.
Did you know?
AS2809 up until the AS2809:2020 revision required manhole
covers to be dropped on a certified drop test apparatus, which simulates a full compartment of product, from a height of 1.2 metres & then a secondary drop from 1 metre.
This double drop replicates a tanker’s initial impact and often subsequent secondary impact i.e. rollover. An Australian double drop test approved manhole cover provides the highest level of product
Case Studies
Learn more about how the VOH451 double drop tested hatch is improving safety on Australian roads
