Type F Camlock Fittings

Liquip camlocks are built to NATO specification (MIL-C-27487 (Superceded by A-A 59326) and are of aluminium construction.

For Aviation selectivity Notches and pins are used to dedicate these couplings for use with Aviation Gasoline or Aviation Turbine Fuel, thus preventing the wrong product being loaded into the wrong tank. All Aviation units conform to Australian Code of Practice CP23.

Type F Adapter - Cam and Groove Male Adapter x Male BSP Thread.

Type F adapters are normally used with Type B couplers, but can also be used with Type C and D couplers or DC (Dust Cap) of identical size.

Technical Information

Materials
Aluminium.

Sizes Range
¾" to 4".

Thread
Male Camlock to Male BSP Thread.


Ordering Information

MALE CAMLOCK TO MALE BSP THREAD

Item Camlock     Thread

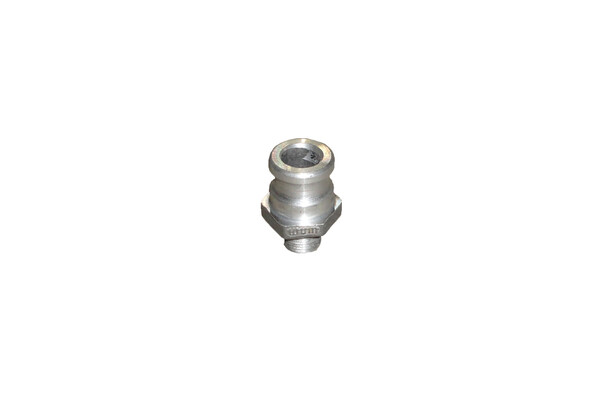

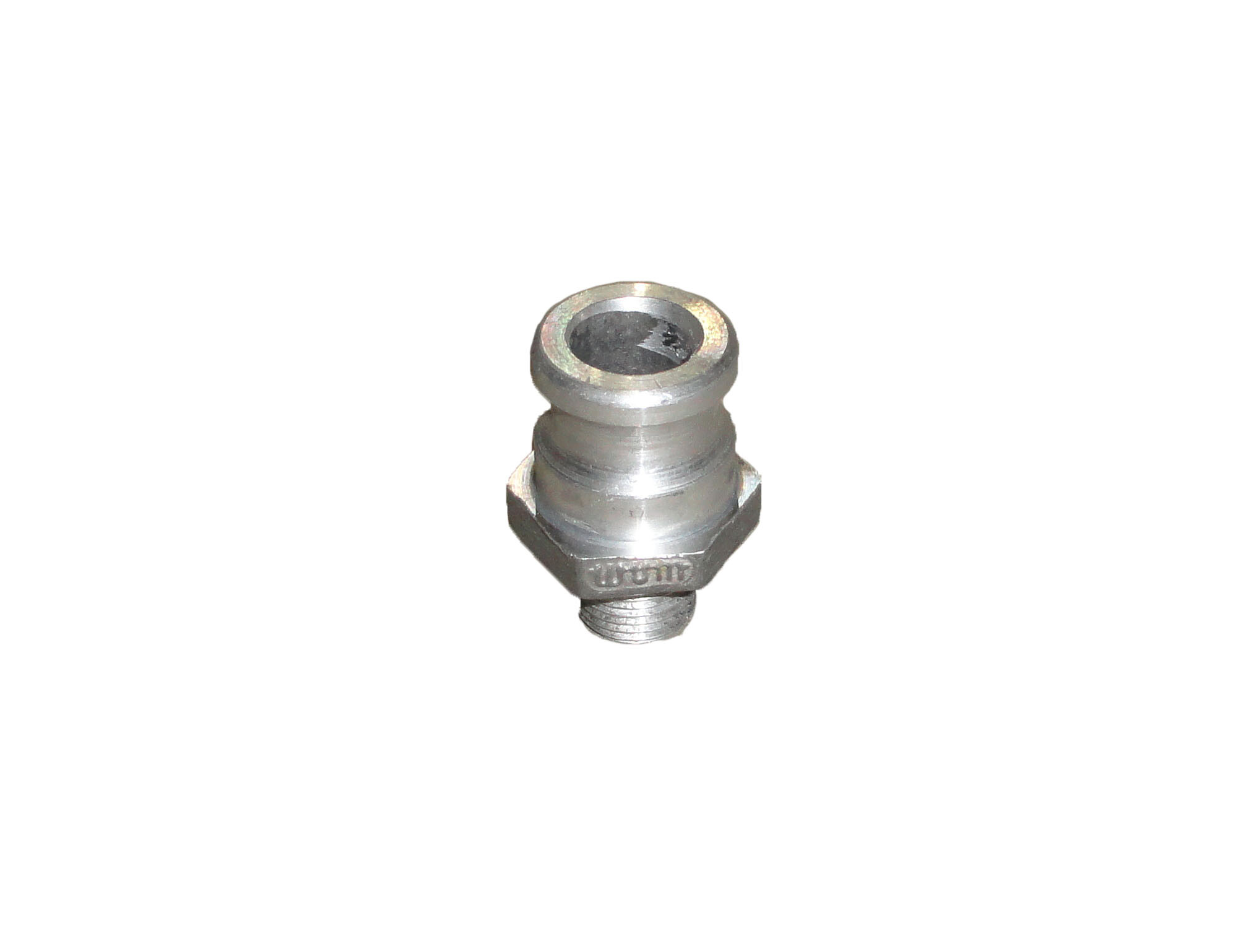

NA20-10-15A ¾" ½"

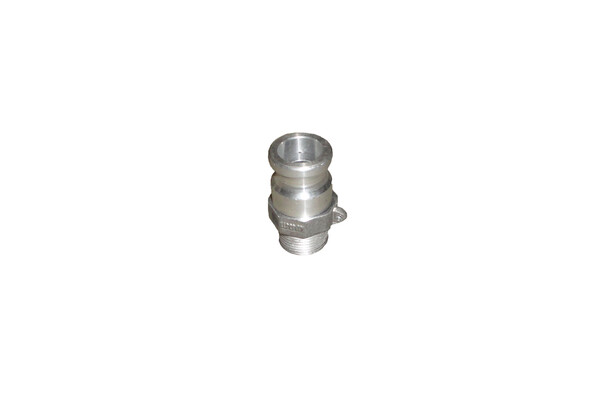

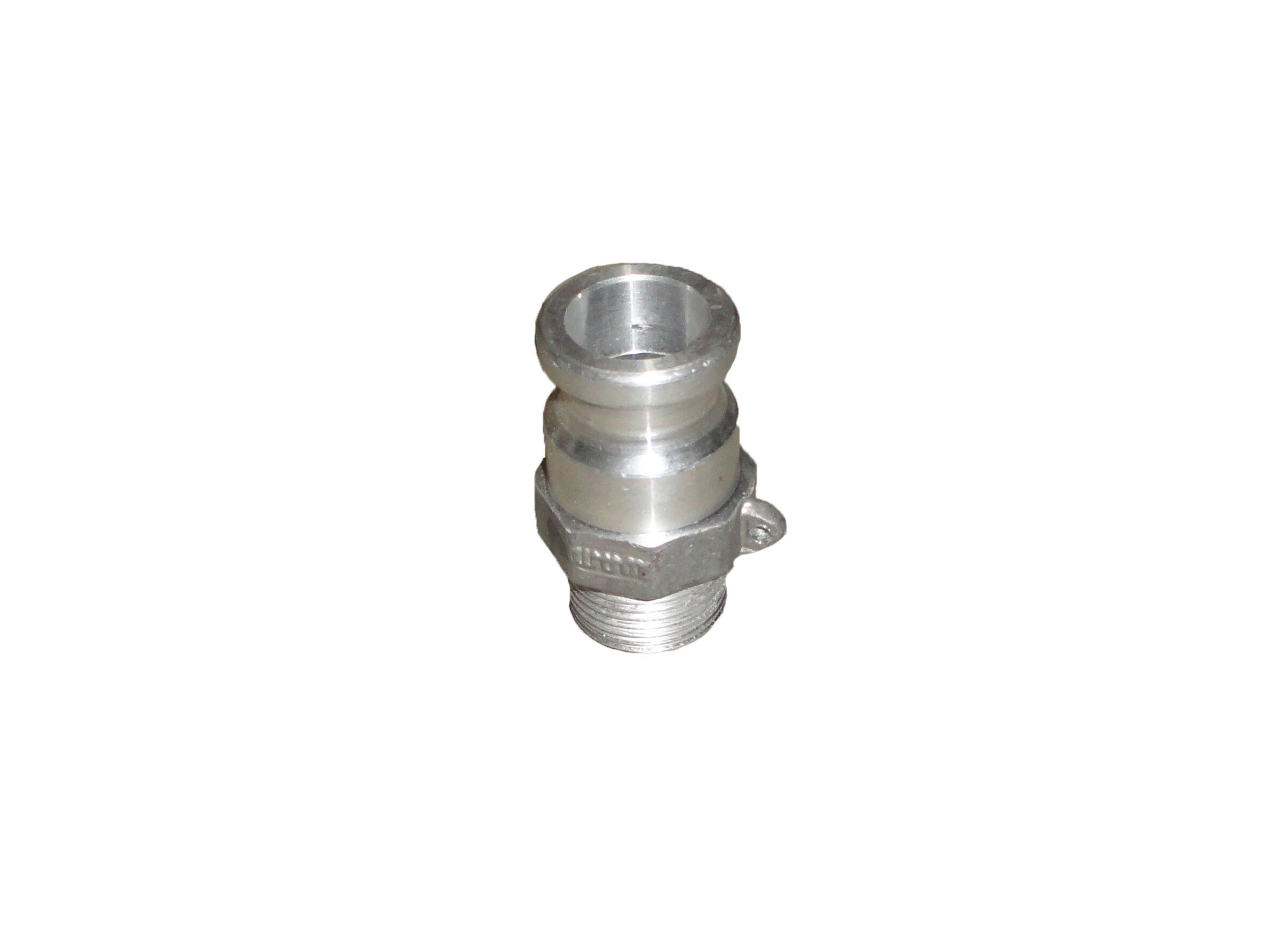

NA20-10A ¾" ¾"
NA25-10A 1" 1"
NA32-10A 1¼" 1¼"
NA40-10A 1½" 1½"
NA50-10A 2" 2"
NA65-10A 2½" 2½"
NA80-10A 3" 3"
NA100-10A 4" 4"
