Product Delivery Elbows

The LTE series product delivery elbows connect discharge hoses from a road tanker to a fill underground storage tanks fitted with Liquip tight fill adaptors or similiar.

Features & Benefits
  • Spill free delivery during discharge of tank  trucks.
  • Sealing on the bottom connection is via lip seal on the side of the LTA adaptor as this surface is rarely worn.
  • Ergonomic design for added operator safety.
  • Incoprorated sightglass to view product flow
  • Easy connection and disconnection.
  • Quick release design.
  • Connection at the tio inlet is via standard camlock.
Technical Information

Inlet
80mm or 100mm.

Bore
80mm or 100mm.

Mounting
Hand mounted push & click with quick release levers.

Materials
Body - Aluminium
Viton - Seal
Levers - Stainless Steel
Sightglass - Acrylic

Weight
3.9kg.

Ordering information

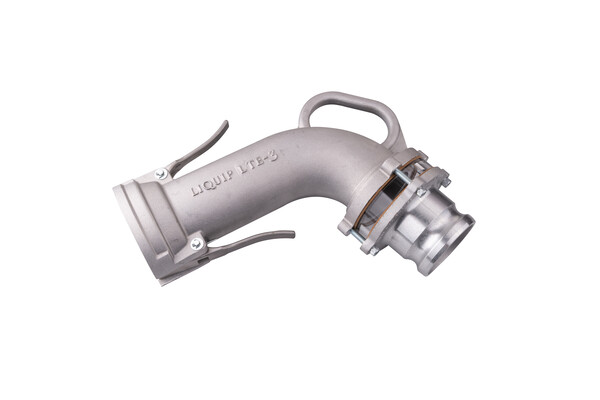

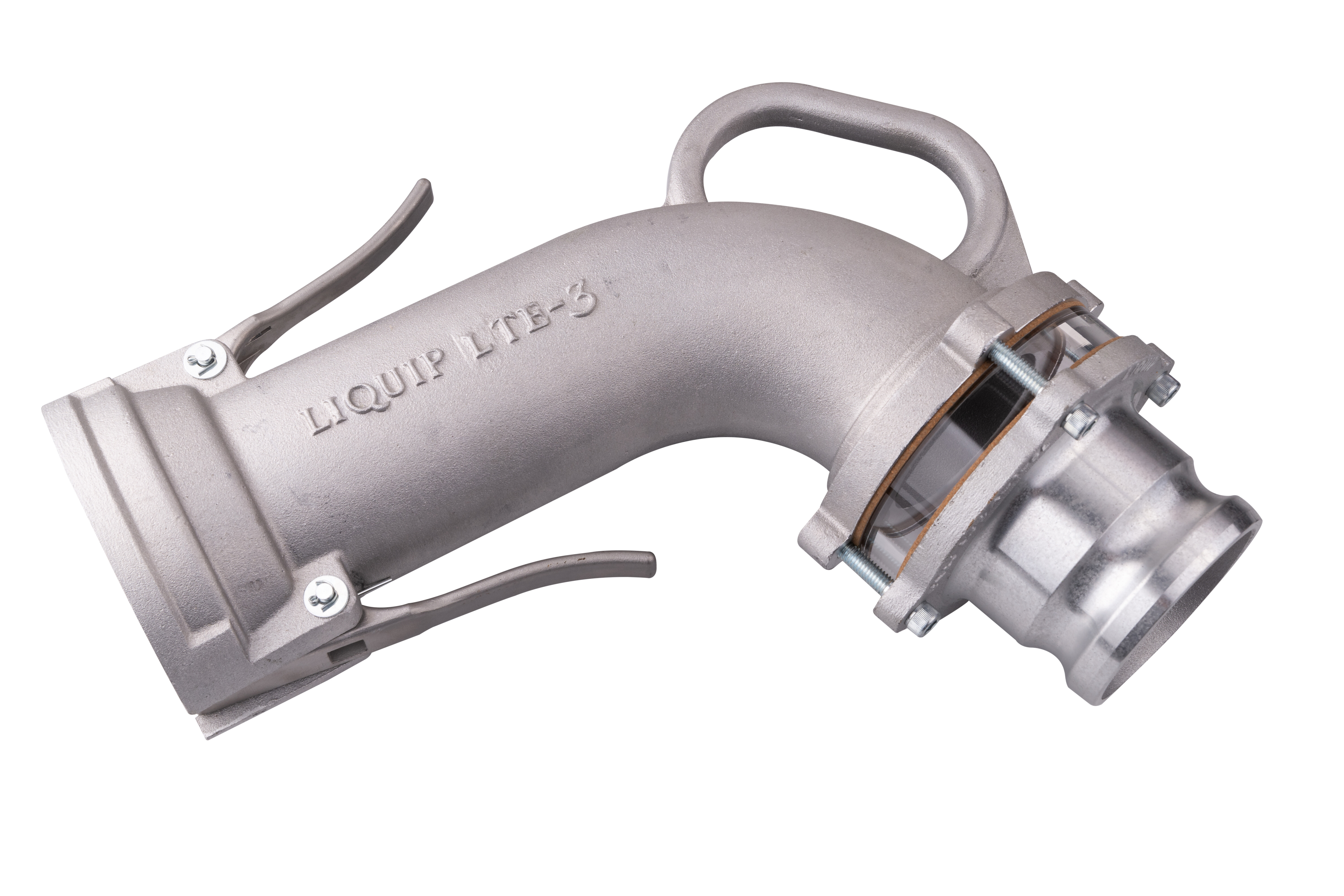

LTE3X3: Aluminium elbow 80mm male camlock x 80mm titefill elbow.

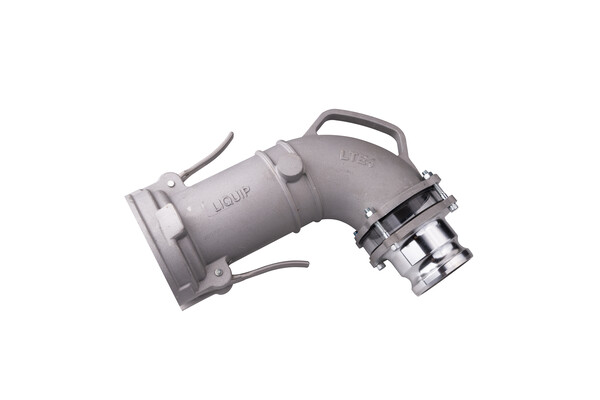

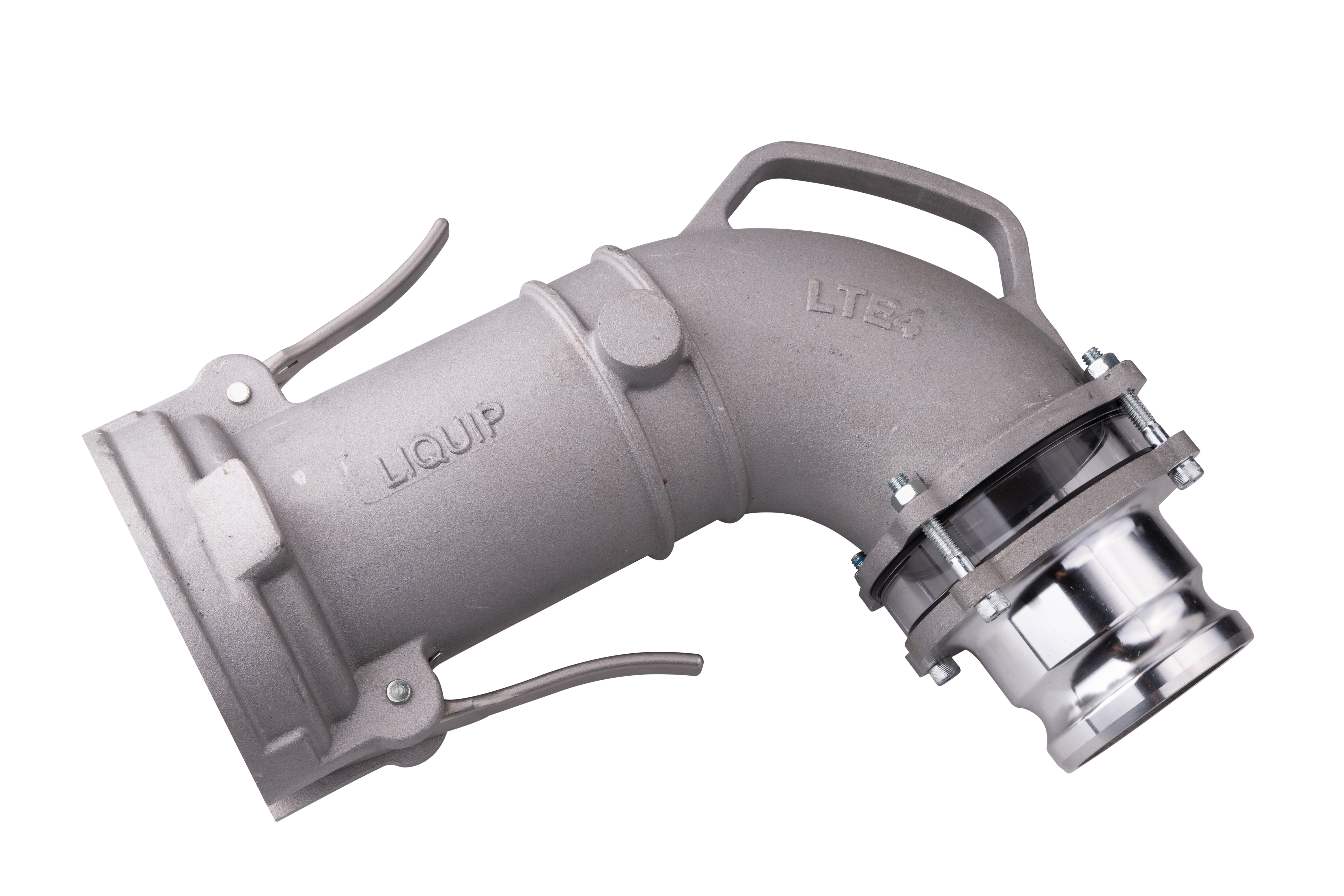

LTE3X4: Aluminium elbow 80mm male camlock x 100mm titefill elbow.

LTE4X4: Aluminium elbow 100mm male camlock x 100mm titefill elbow.

Associated Equipment

LTA3x3:  Tightfill brass adaptor. 3" connection to 3" BSP threaded.

LTA3x4:Tightfill brass adaptor. 3" connection to 4" BSP threaded.

LTA4x4: Tightfill brass adaptor. 4" connection to 4" BSP threaded.
