API490 Series

API490 Series

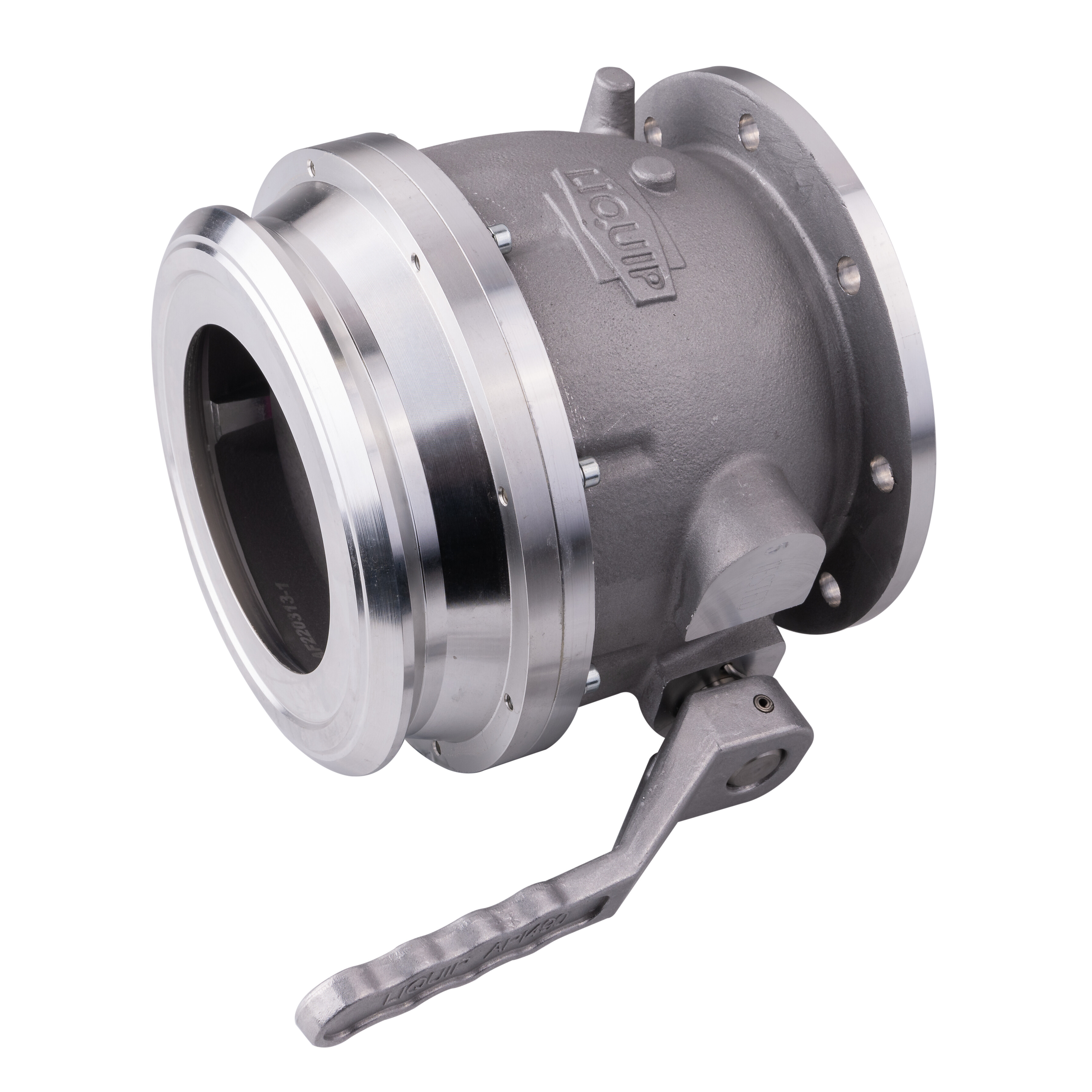

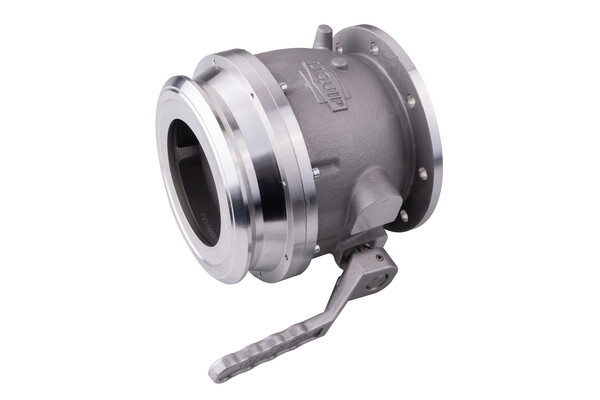

Liquip's API490 Series adaptors are a bottom loading and discharge adaptor that conforms to API RP 1004 and provide total interchangeability with all loading valves.

The API490 Series features a two-piece body with replaceable nosecone. API adaptors are available in various options and can be fitted with a range of seals to suit most applications.

Features & Benefits
  • Aluminium components are heat treated for strength and hardness.
  • Complies to API RP1004 – compatible with all API couplers.
  • Ease of maintenance for reduced downtime.
  • Set of mounts to match industry standard air interlock valves such as the Liquip AIV3.
  • Ergonomically designed handle.
  • Lightweight design – 4.8kg
  • Borosilicate sightglass to visually check for retained product available.
  • Flange is gramophone finish for improved sealing.
  • 100mm bore all through for minimum pressure drop.
  • 52mm poppet travel
  • Electrical continuity guaranteed by use of non-anodised nose cone.
  • API496 variants have a 1” BSP threaded drain point at the bottom of the adaptor.
  • Drain plug, ½” BSPT (when fitted).
Technical Information

Pressure Rating
Pressure rated to API RP1004 standard (517kPa).

100mm bore all through for minimum pressure drop.

Poppet Travel
52mm

Operation
Spring loaded poppet can be opened by the handle for discharge, or by an API coupler for bottom loading or unloading.

Continuity
Electrical continuity guaranteed by use of non-anodised nose cone.

Mounting
Gramophone finished flange is 100mm TTMA.

Mounts with handle on the right hand side.

Ordering Information

API491: No sight glass or drain.
API491D: Handle moves down, no sight glass or drain.
API496: Complete with sight glass & drain.
API496D: Handle moves down, complete with sight glass & drain.
API496J: Jet Selective, complete with sight glass & drain.
API496DJ: Jet Selective, handle moves down, complete with sight glass & drain.
API496G: Avgas Selective, complete with sight glass & drain.
API496DG: Avgas Selective, handle moves down, complete with sight glass & drain.
API496C: Aluminium/Stainless Steel components & FFKM seals complete with sightglass, handle moves down

Associated Equipment

API-DC: Aluminium API Dust Cap with Camlocks.
API-DCLA: Aluminium API Dust Cap with lockable levers.
0657V: 4" TTMA Viton A Gasket.
BF4-SG-25: 4" TTMA Flange Sight glass 25mm thickness.
BF4-SG-45: 4" TTMA Flange Sight glass 40mm thickness.
