Rail Car API Adaptors

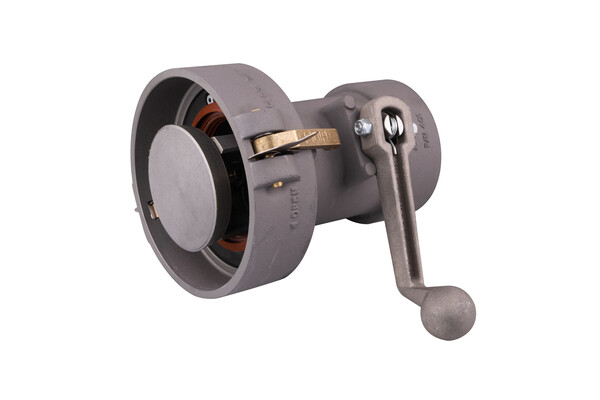

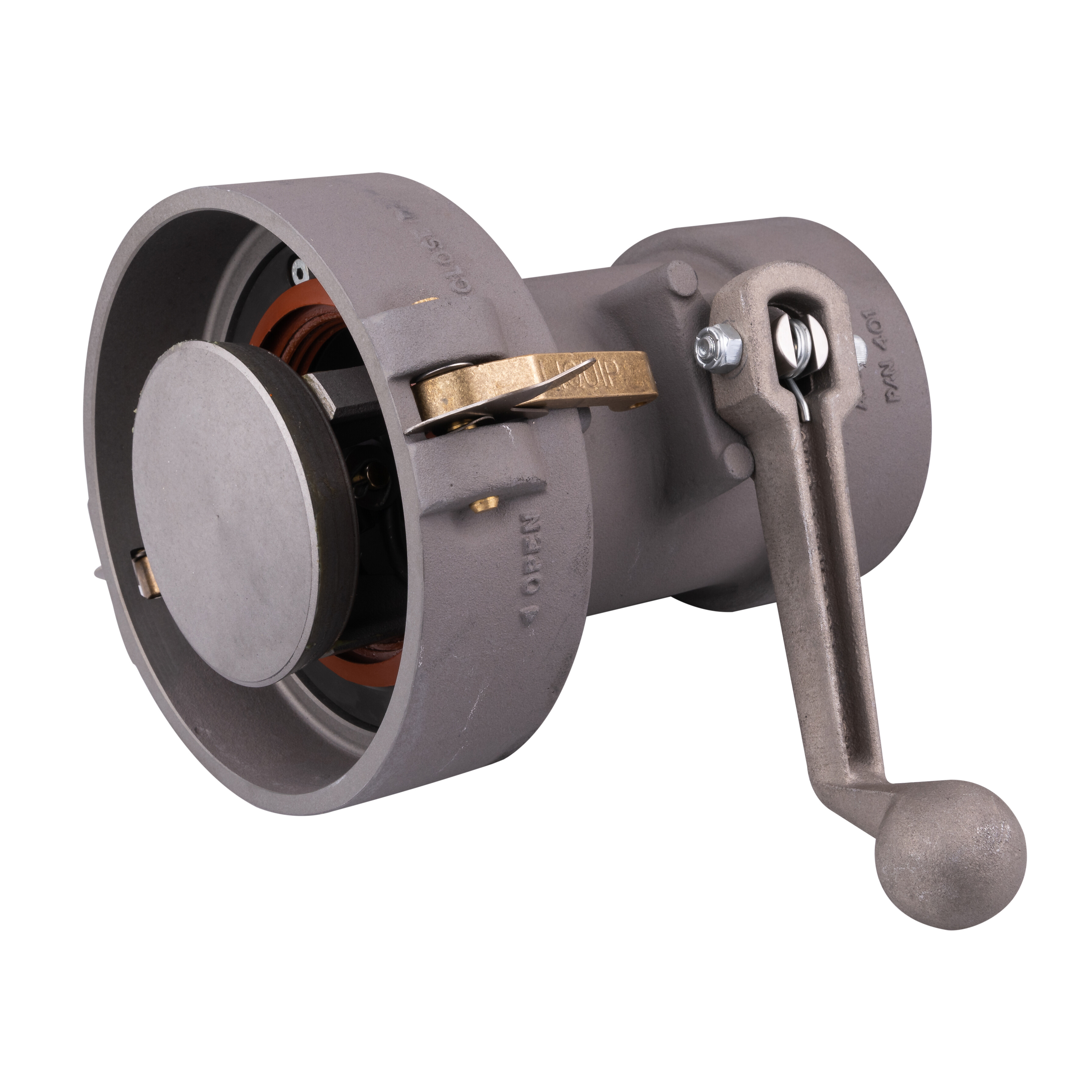

Liquip's API-RC drybreak adaptor is for gravity discharge and will fit to API standard bottom loading adaptors. It is suitable for unloading rail cars and tank trucks or used on jumper hoses to pumping systems.

Operation of the handle on the coupler opens the poppet on the API adaptor.



Features & Benefits
  • Unique one piece seal engages nose of API adaptor before the poppet opens to ensure no product loss.
  • Seal can be replaced without stripping the coupler.
  • The design of the seal with multiple lips gives the best ever tolerance to damage from dirt or other problems.
  • Lightweight, Simple & inexpensive API bottom loading coupler.
  • Designed for Gravity Discharge but will operated up to 350kPa and will hold pressure up to 1,000kPa.
  • The APIRC is straight through with 102mm FBSP thread.
  • 100mm bore throughout.
  • The handle has an over centre operation and also has locks in an open or closed position.
Technical Information

Materials
Aluminium body with hard anodised bearing surfaces

Viton seals

Pressure Rating
350 kPa max coupling pressure.

Product retention to 500kPa.

Ordering Information

APIRC: Gravity Drop Feamle API coupler.

Associated Equipment

0657V: 4" TTMA Viton A Gasket.

BF4-SG-25: 4" TTMA Flange Sight glass 25mm thickness.

BF4-SG-45: 4" TTMA Flange Sight glass 40mm thickness.

All API Male Adaptors.
