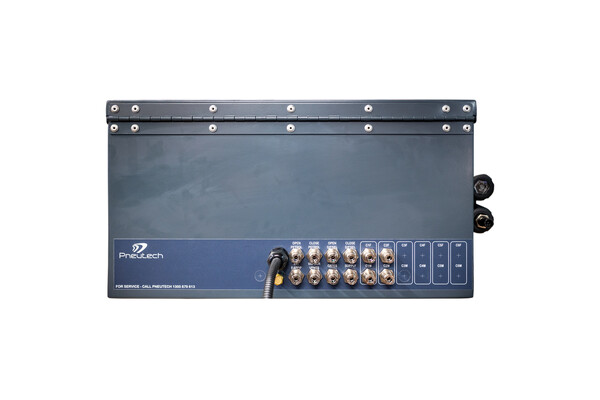

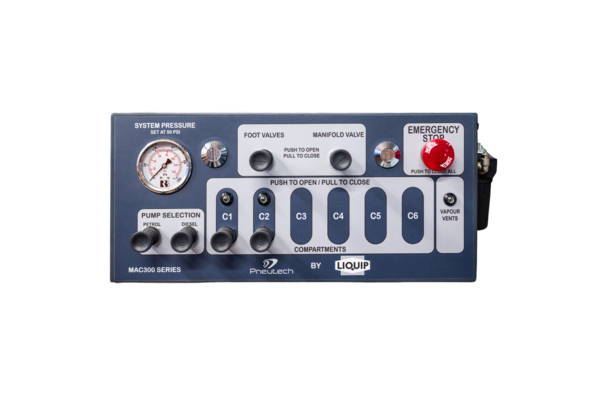

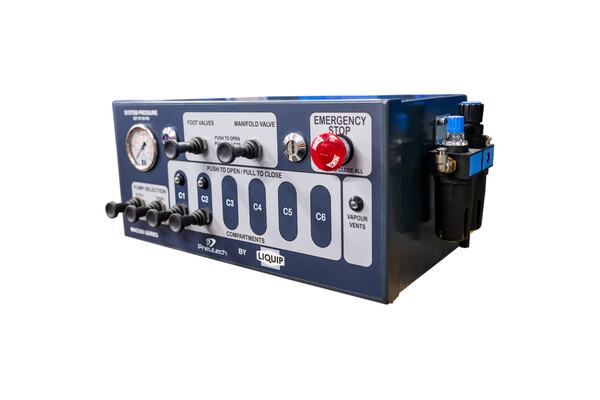

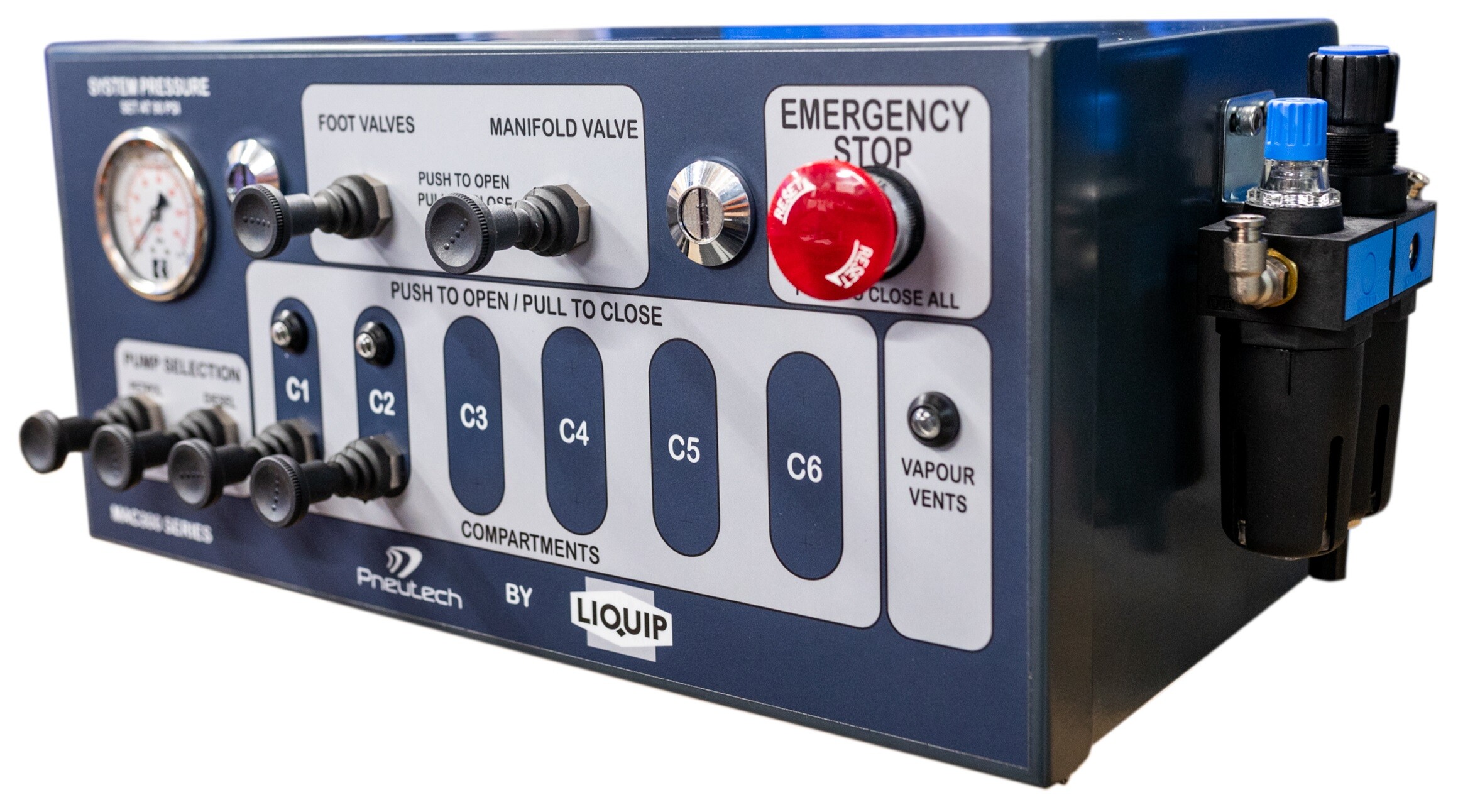

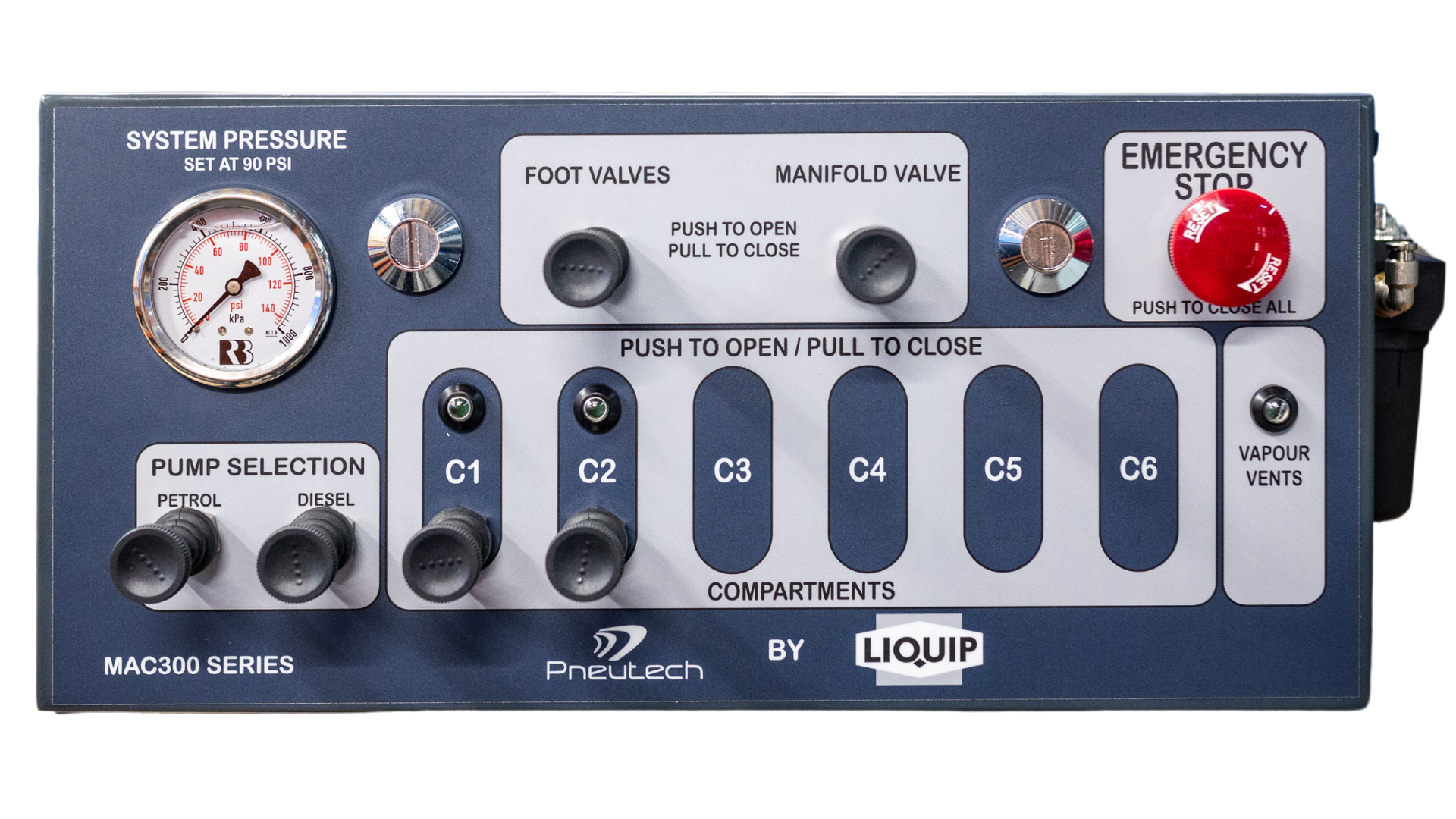

MAC300 Series Tanker Manifold Air Control Box.

The MAC300 pneumatic control systems are available for 2 to 6 compartment systems and is incredibly simple to use.

Features & Benefits
  • Manifold and air control.
  • Stop manifold 'shandies'
  • Simple installation - one box only, not two.
  • Emergency stop intergrated with truck system.
  • Footvalve control with shuttle valves for footvalve built into the control box.
  • 'Vapour vent open' pressure indicator.
  • Overfill pressure switch with gold contacts.
  • Colour coded pneumatics.
  • Brake and Gate inputs supported.
  • Powder-coated aluminium enclosure.
  • Brake release signal input.

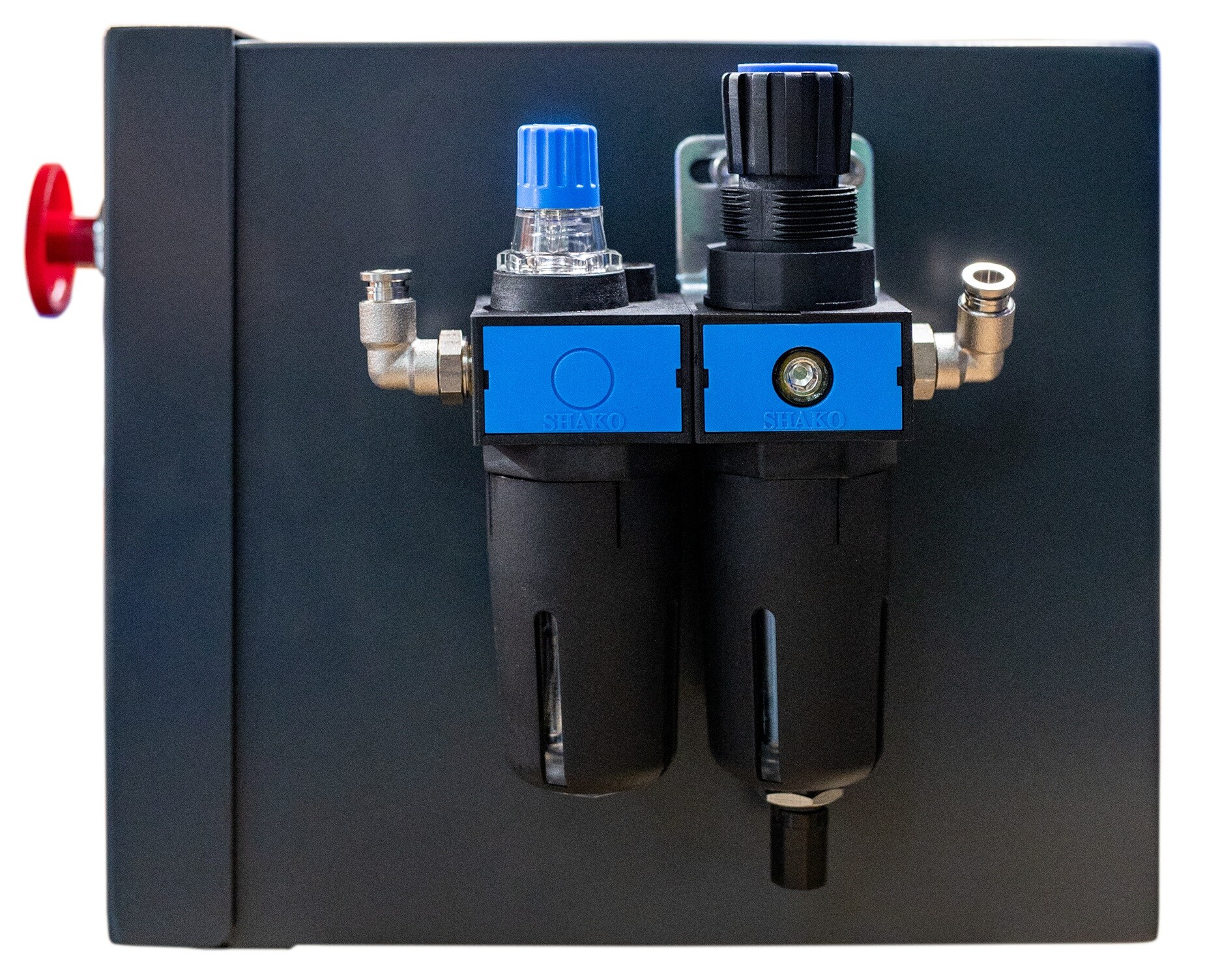

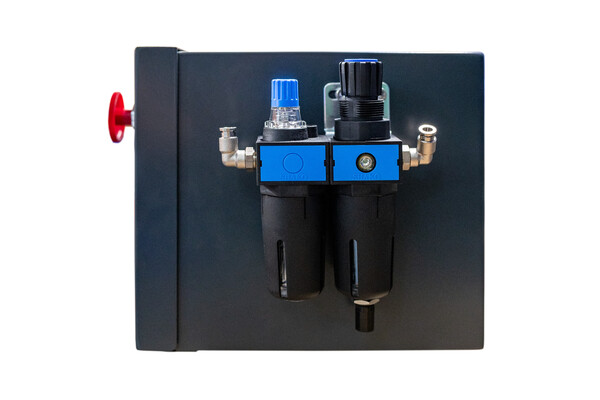

  • Air regulator/water separator and lubricator fitted to enclosure.
  • Supported by pneumtatic experts.
  • Lightweight and small physical footprint.
Technical Information

Technical Data

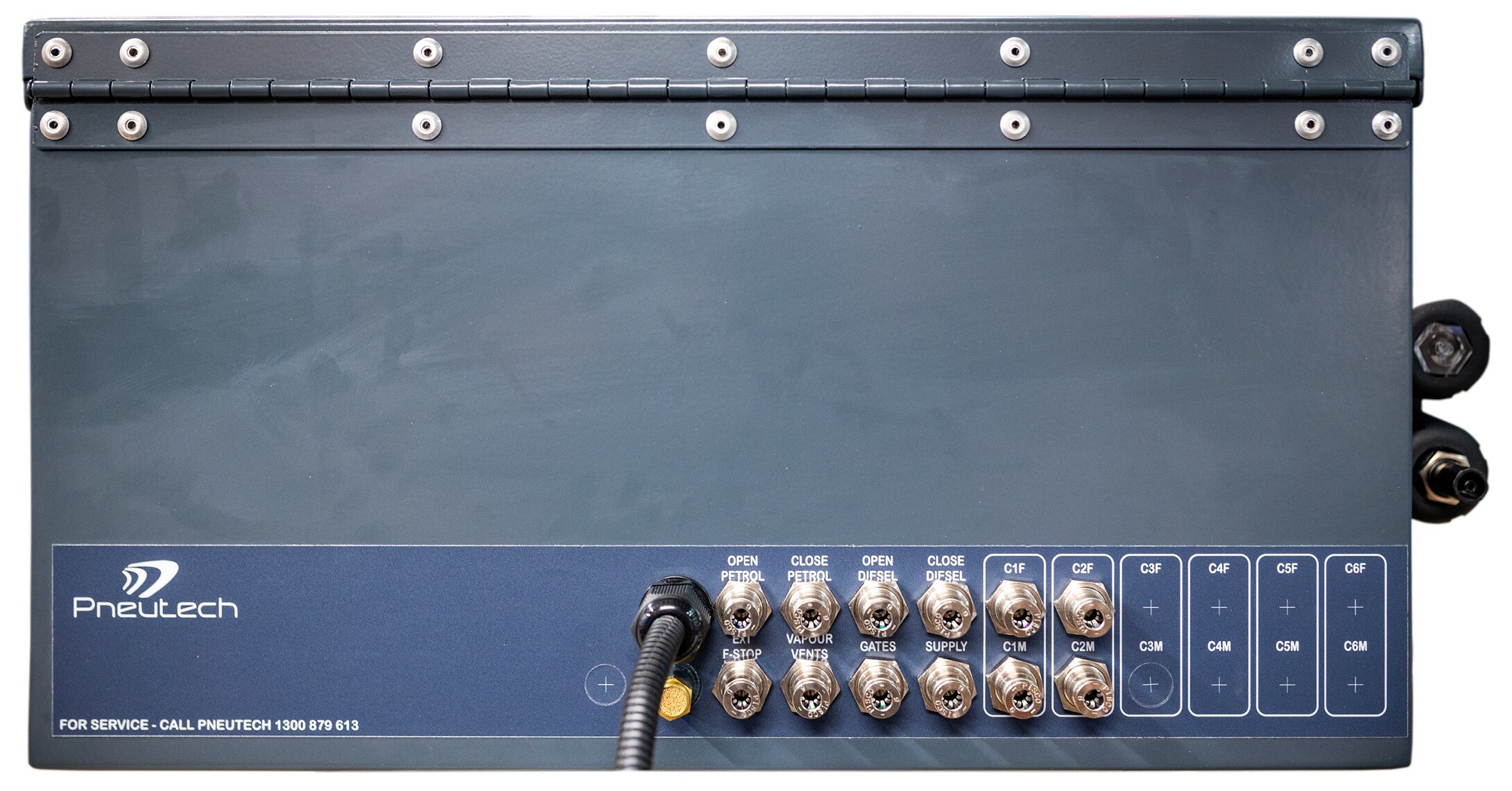

Air tube connection: 6mm push-fit.
Lubrication oil: ISOVG32 or equivalent.

Dismantle
Refer to Liquip before attempting any repairs or modifications. Enclosure opens by turning two front locks with a screwdriver.

Adujustment
System pressure is to be maintained at 6 bar (600kPa). Adjustment is via turning knob on top of regulator.

Mounting
Enclosure is mounted from the rear using M8 bolts (refer to drawings overleaf). Seal off any holes not used to prevent dust & moisture ingress. For full installation instructions refer overleaf.

Ordering Information

Number of compts

Dual product dispensing

Single product dispensing

Dog trailer (single product transfer)*

Dog trailer (dual product transfer)*
2 MAC302 MAC302SP MAC302DOG MAC302DUAL
3 MAC303 MAC303SP MAC303DOG MAC303DUA
4 MAC304 MAC304SP MAC304DOG MAC304DUA
5 MAC305 MAC305SP MAC305DOG MAC305DUA
6 MAC306 MAC306SP  -  -

* With added control for pneumatic butterfly valve on transfer line (butterfly valve not supplied with MAC box).

ASSOCIATED EQUIPMENT

DM104: Manifold valves

VB100U: Vacuum breaker.

BF4-5: End blanking plate (to suit VB100U)

End blanking plate (standard) – BF4-7

Sight glass 25mm – BF4-SG-25Z

Gaskets 4” TTMA – 4248 (Klinger)  0657 (NBR Cork)

Spacer Aluminium (solid) 40mm – DM103-11

Vapour gate assembly – GC300Z
