Static Earthing Reels

Static reels are used to bond two pieces of equipment
to allow static charge to be safely equalised. Static reels
are typically used when product is transferred from one
tank to another e.g. when pumping between a tanker
and storage tank or when fuelling aircraft.

Liquip offers the SR202, which has been developed to provide users with a safe and reliable static earthing reel.

The SR202 has a large drum so that it can be wound quickly and is fitted with a cable guide.

  • Large diameter drum means less turns are required to wind cable back onto reel.
  • Free spinning handle and is comfortable to use.
  • Stainless steel components are used to ensure corrosion does not break continuity.
  • Reliable continuity is ensured through the use of a carbon brush on a stainless steel shaft.
  • Maximum end-to-end resistance 2 ohms.
  • Carbon brush runs in sealed section to eliminate dirt and corrosion.
  • Shaft has grease reservoir for all-of-life lubrication.
  • Can hold up to a max of 76m standard PVC coated wire (4mm diameter)

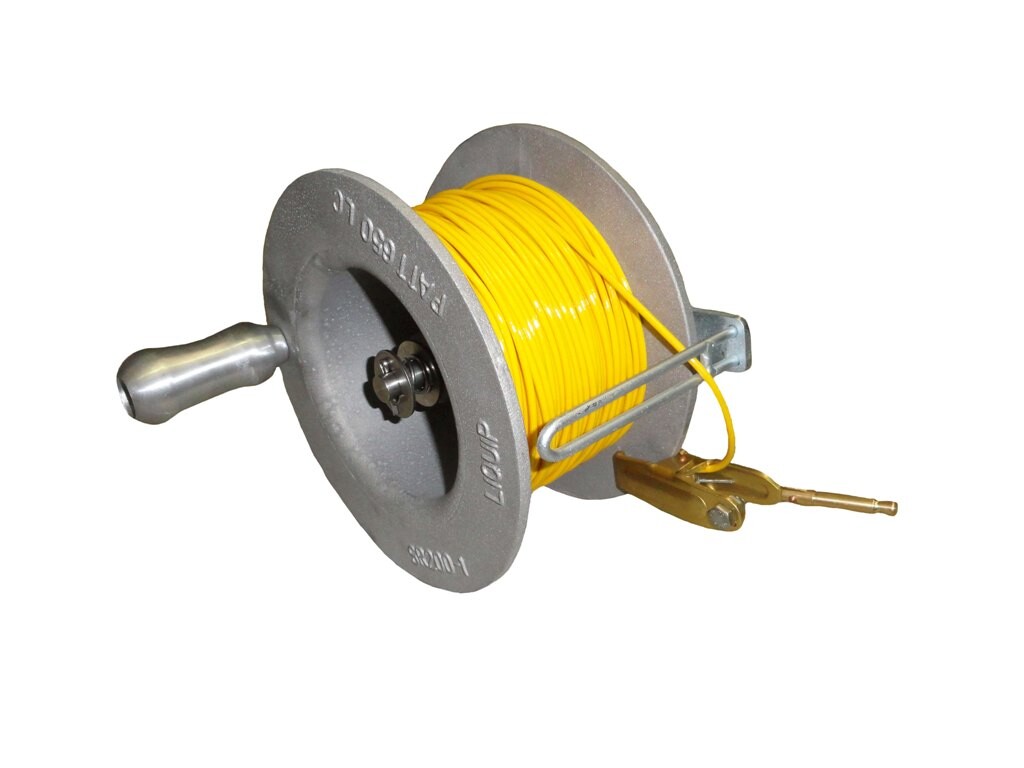

SR202: Large diameter static reel comes with cable guide, manual operation.
