VCM450 Series

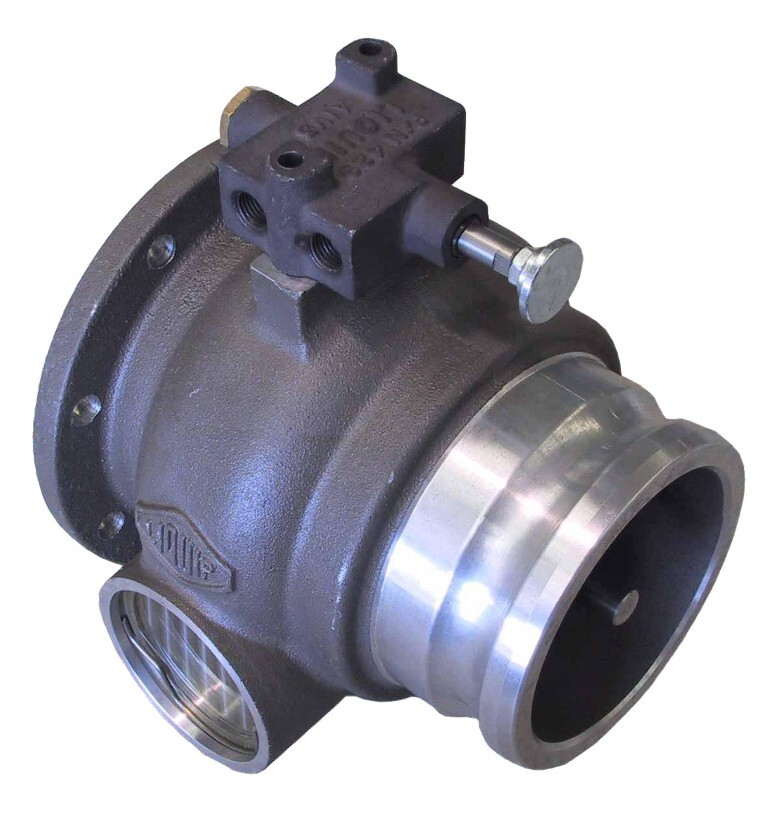

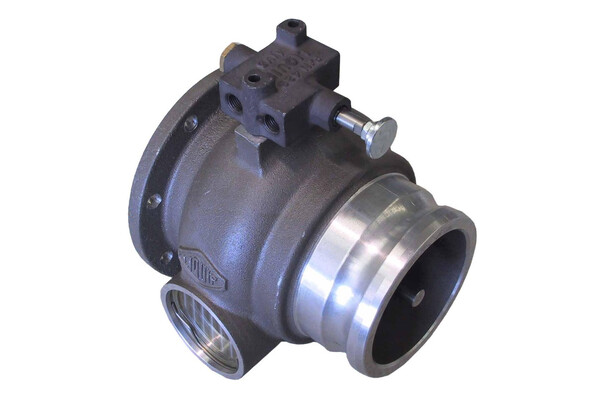

Vapour recovery adaptors can be supplied with proximity switch holder. the VCM450 provides high flow rates into multiple compartments with minimal pressure drop across the adaptor.

When connected to a female vapour coupler the adaptor poppet is pushed inwards to allow vapour flow and the coupler also pushes the striker plate of the adaptor forward to provide an electrical signal that the vapour recovery system is conencted.

VCM3 Series

the VCM3 series is a poppet sealed cam and groove connection for turck vapour return lines.

Aluminium body with 100mm (4") TTMA flange mounting.
Seals are viton and the shaft runs in a delrin bush.
A standard camlock will not fit into this adaptor, only an approved vapour coupler.
NOTE: Australia and NZ use only VCM3 series.

Features & Benefits
  • High flow rates and low pressure drop.
  • Lightweight and strudy aluminium construction.
  • Designed to work with flow rates of up to 600m3/hour (10,000 litres per minute) at 20oC.
  • Automatic opening and closing.
  • All aluminium construction with stainless steel springs and Viton poppet seal.
  • Ability to add pneumatic proxmity switch (sold seperately).
  • Sightglass for visual check of product in the vapour line.
  • Universal connection - 100mm camlock.
  • unverisal mounting - 100mm (4") TTMA flange.
  • Drain plug.
  • Viton lip seal.
Technical Information
  • Nosecone is standard 4” NATO camlock with interference selectivity ring to prevent wrong connection.
  • Poppet opens under external pressure of 4-6kPa for vacuum relief.
  • Pressure drop less than 4kPa at 6000 litres/min flow of free air across coupled connection.

NOTES: VCM450 is not suitable for use with AS5602 compliant tankers which require interference selectivty ring for vapour adaptors. (use VCM3 variants).

Ordering Information

VCM450:  Vapour adaptor 100mm (4") flow through.
VCM3P: Vapour adaptor with promixty switch holder.
VCM3-F: Al Vapour adaptor 100mm Male to 100MM TTMA flange.
VCFPA: Vapour parking adaptor with proximity siwch holder.



Associated Equipment

5544: Proximity switch (M30).
VCF075W: Female vapour coupler.
