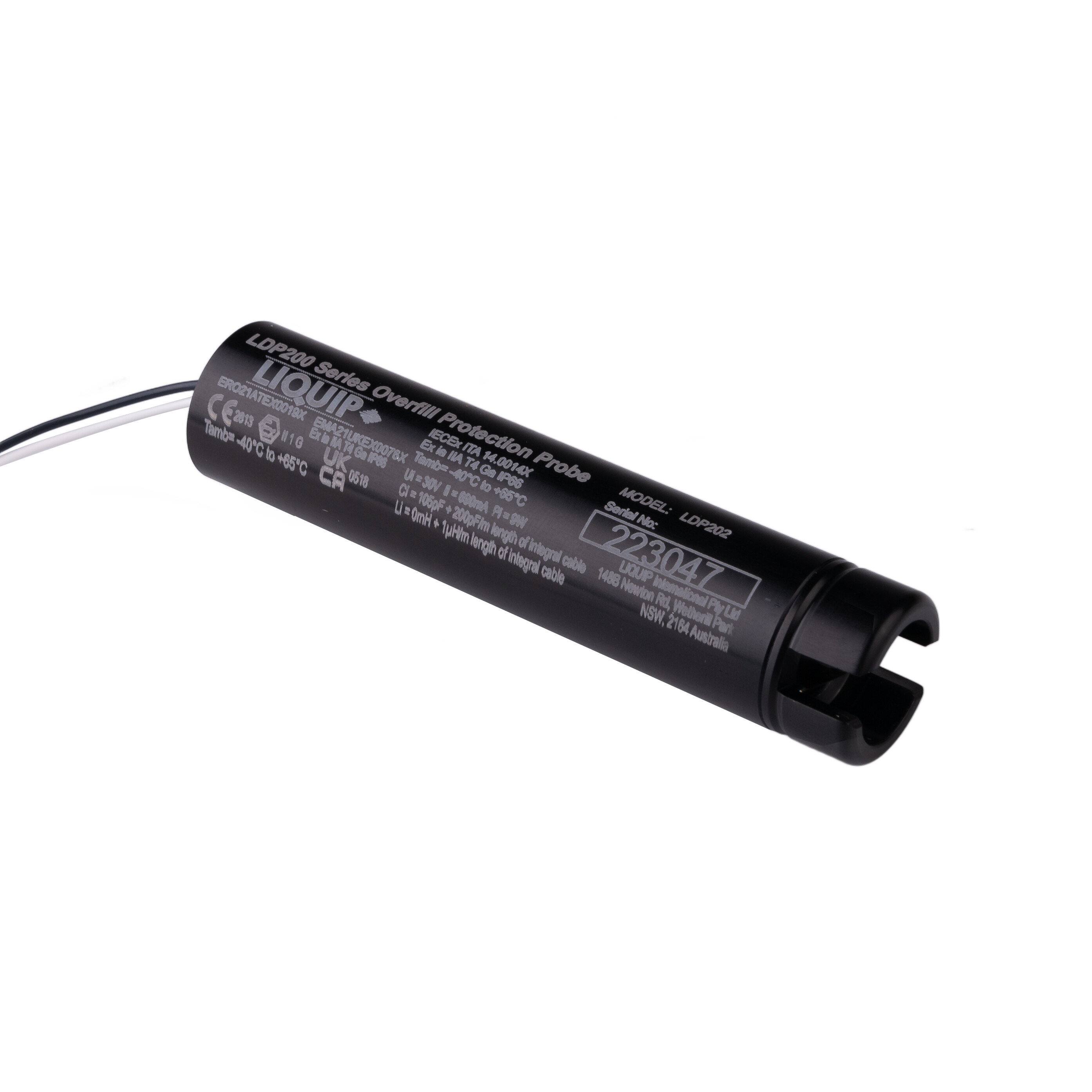

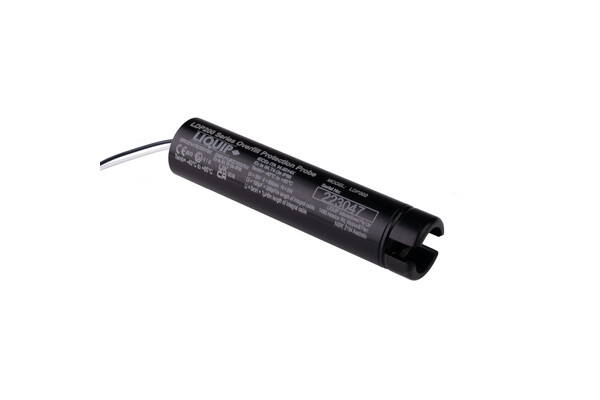

LDP200 Series Liquid Detection Probes

Liquip's LDP Series of optic overfill sensors raise the bar for safety with a self checking design unique glass prism design.

The LDP series overfill probe are fully compatible with all Liquip overfill equipment and can be interchanged with most 2 or 5 wire probes.

Self Diagnostic function.
Compatible with all systems built to the API code.
A visbile optic light in the sensor tip indicates whether it is dry and operational.
Independent visual test for function when in or out of the tanker.
Patented visible light - Technological breakthrough.
Secondary protection with O-Ring sealed tip.
Built to comply with API RP1004 and EN13922.
Three stage viton sealing.
Glass prism is light-shielded by the retainer.
Probe can be removed from tank topwithout having access to interior to remove a hood.
Construction - Fully sealed front.
Self healing epoxy at rear on cable entry.
Fully potted construction.
Range of probe extensions to suit various probe lengths.

Electrical Parameters
IECEx & ATEX Approvals
Ui = 30V, Ii = 500mA, Pi = 9W, Ci = 105pF, Li = 0mH

FM Approvals
Vmax = 30V, Imax = 691mA, Pi = 9W, Ci = 105pF, Li = 0mH

Operating Temperature
-40ºC to +65ºC

IP Rating
IP66

Level Repeatability
+ 0.5mm

Design Pressure
600kPa

Materials
Body, retainer and extensions: Aluminium
Prism: Glass
O-rings: Viton

LDP202: 2 wire Aluminium Overfill Probe.

LDP205: 5 wire Aluminiun Overfill Probe.

LDP202SS: 2 wire Stainless Steel Overfill Probe.

LDP205SS: 5 wire Stainless Steel Overfill Probe.

LDP202SC: 2 wire Stainless Steel Overfill Probe w/ FFKM seals.

LDP205SC: 5 wire Stainless Steel Overfill Probe w/ FFKM seals.

LD102-4: Aluminium probe extension (80mm).

LDP105-2: Aluminium probe extension (222mm).

PJB500: 2" Remote Probe holder.

VOH200-5: Probe holder.

RM140: Overfill Rack Monitor.

DP300 Series: Overfill dummy Probes.

TP100 Series: Overfill Truck Plug.
