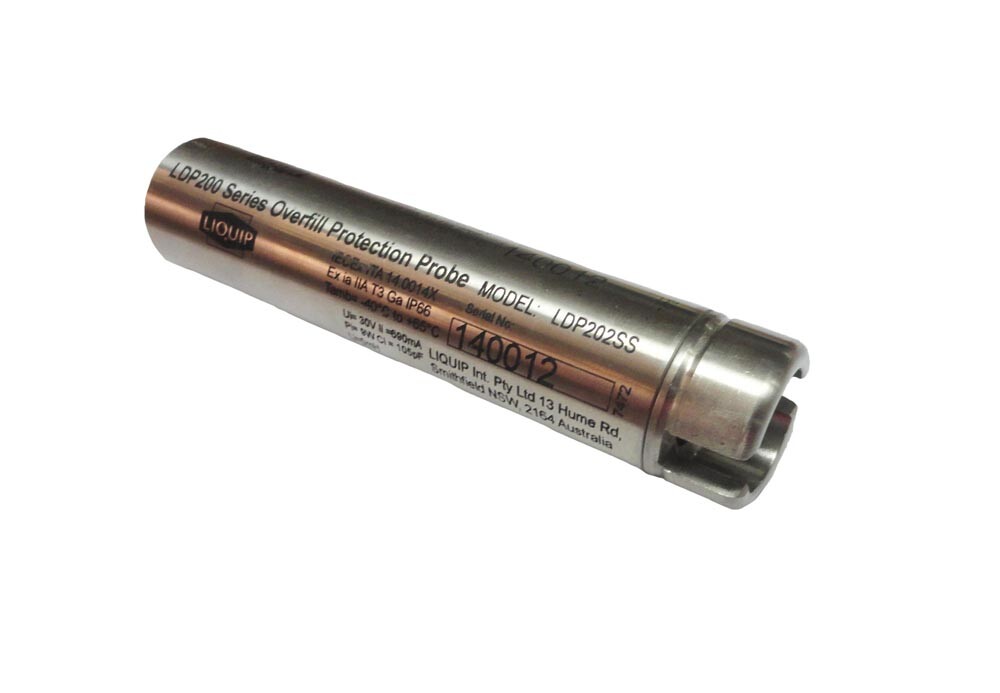

LDP200 Series Stainless Steel Overfill Probes

Liquip’s LDP200 Series Stainless Steel Overfill Probes are used in overfill prevention systems on road tankers and storage tanks to detect the presence of a liquid at a defined level. The probe’s stainless steel body and FFKM seals provide superior resistance to chemical corrosion, making them well suited to Petroleum as well as Chemical Industry applications. The LDP200 Series Probes are compatible with industry standard signal formats (EN 13922), providing interoperability with both Liquip’s existing Gantry Monitors and other compliant Monitors.

FEATURES & BENEFITS
  • Stainless steel body and FFKM seals provide superior resistance to chemical corrosion.
  • Well suited to Petroleum as well as Chemical Industry applications.
  • Compatible with industry standard signal formats (EN 13922)
  • A visbile optic light in the sensor tip indicates whether it is dry and operational.
  • Independent visual test for function when in or out of the tanker.
  • Patented visible light - Technological breakthrough.
  • Glass prism is light-shielded by the retainer.
  • Probe can be removed from tank topwithout having access to interior to remove a hood.
  • Construction - Fully sealed front.
  • Self healing epoxy at rear on cable entry.
  • Fully potted construction.
  • Range of probe extensions to suit various probe lengths.
TECHNICAL INFORMATION

Electrical Parameters:
IECEx: Ui = 30V, Ii = 690mA, Pi = 9W, Ci = 105pF, Li = 0mH
Operating Temperature: -40ºC to +65ºC
IP Rating: IP66
Level Repeatability: ±0.5mm
Design Pressure: 600kPa

Power Limit (Pi = 9W) applies:
Ii max = 690mA when Ui max = 13.04V OR
Ii max = 300mA when Ui max = 30V

Safety Certification

  • IECEx Certificate: IECEx ITA 14.0014X
  • Marking: Ex ia IIA T3 Ga IP66
    Tamb = -40ºC to +65ºC
  • ATEX Certificate TUV 15ATEX 7627X
  • Marking 0518 II 1 G Ex ia IIA T3 Ga
    Tamb = -40ºC to +65ºC
ORDERING INFORMATION
  • LDP202SC - 2 Wire Probe, SS-316 Body with FFKM Seals
  • LDP205SC - 5 Wire Probe, SS-316 Body with FFKM Seals
  • LDP202SS - 2 Wire Probe, SS-316 Body with Viton Seals
  • LDP205SS - 5 Wire Probe, SS-316 Body with Viton Seals
