Remote Probe Holders

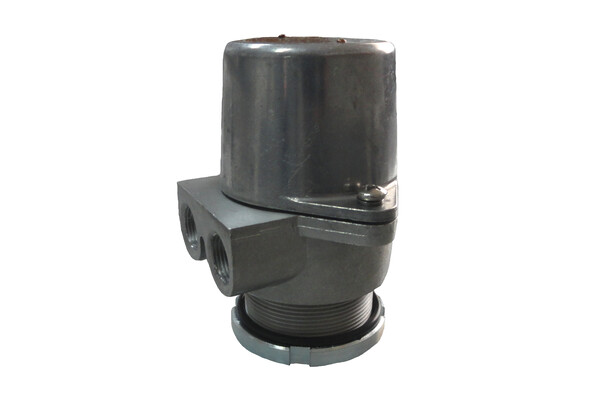

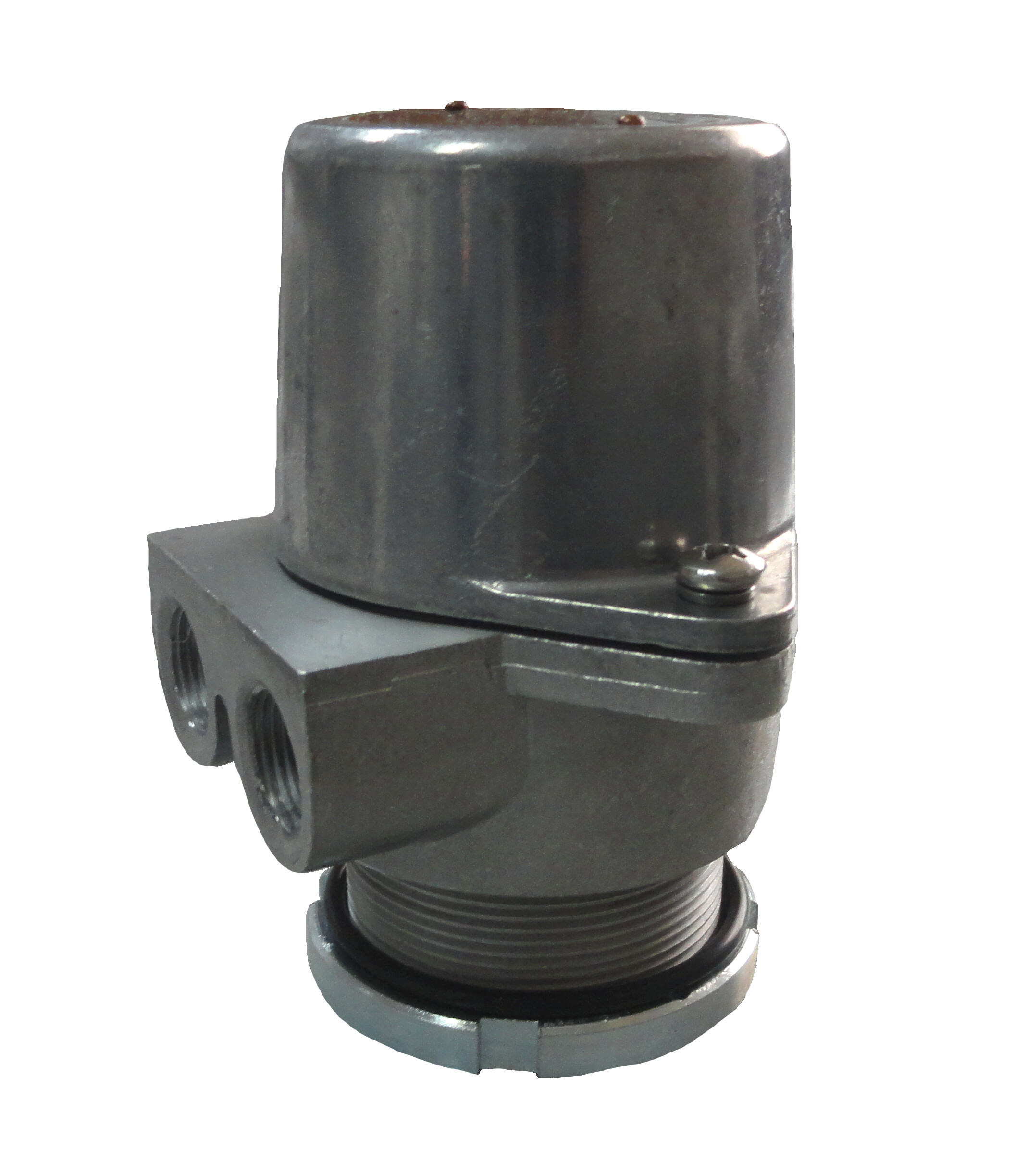

Liquip offers a PJB500, remote probe holder, which is a walkway or manhole cover mounted overfill probe holder.

It provides a protected, clean and dry environment to mount overfill probes to tanker walkways.





Features & Benefits
  • Housing can be mounted through a hole and sealed with the locknut or screwed directly into a M60 X 2 thread.
  • Adjustable Height. by lossening internal capscrews and sliding probe up or down to the correct sensing height.
  • The body has two M20 x 1.5mm entries. This eliminates the need to mount a tee with cover in the conduit line. This will allow for better connections and easier fault finding.
Technical Information

Probes
-Will accommodate probe diameters of 22.3mm to 25.5mm (such as Liquip LDP style).
-Maximum length of probe inside housing is 87mm.

Mounting
-Plate thickness for mounting is from 4 to 17mm.
-Mounting via 50mm (2") BSP male thread or into 62mm dia. hole.

Height
Overall height when mounted is 96mm, overall diameter is 110mm.

Materials
Lid, body & compression busy: Aluminium
Seals: Nitrile
Screws & Washers: Zinc plated.

Ingress Protection
IP66.

ORDERING INFORMATION

PJB500: Remote Overfill Probe Holder.

ASSOCIATED EQUIPMENT

LDP202: 2 wire Aluminium Overfill Probe

LDP205: 5 wire Aluminiun Overfill Probe

LDP102-4: Aluminium probe extension (80mm).

LDP105-2: Aluminium probe extension (222mm).
