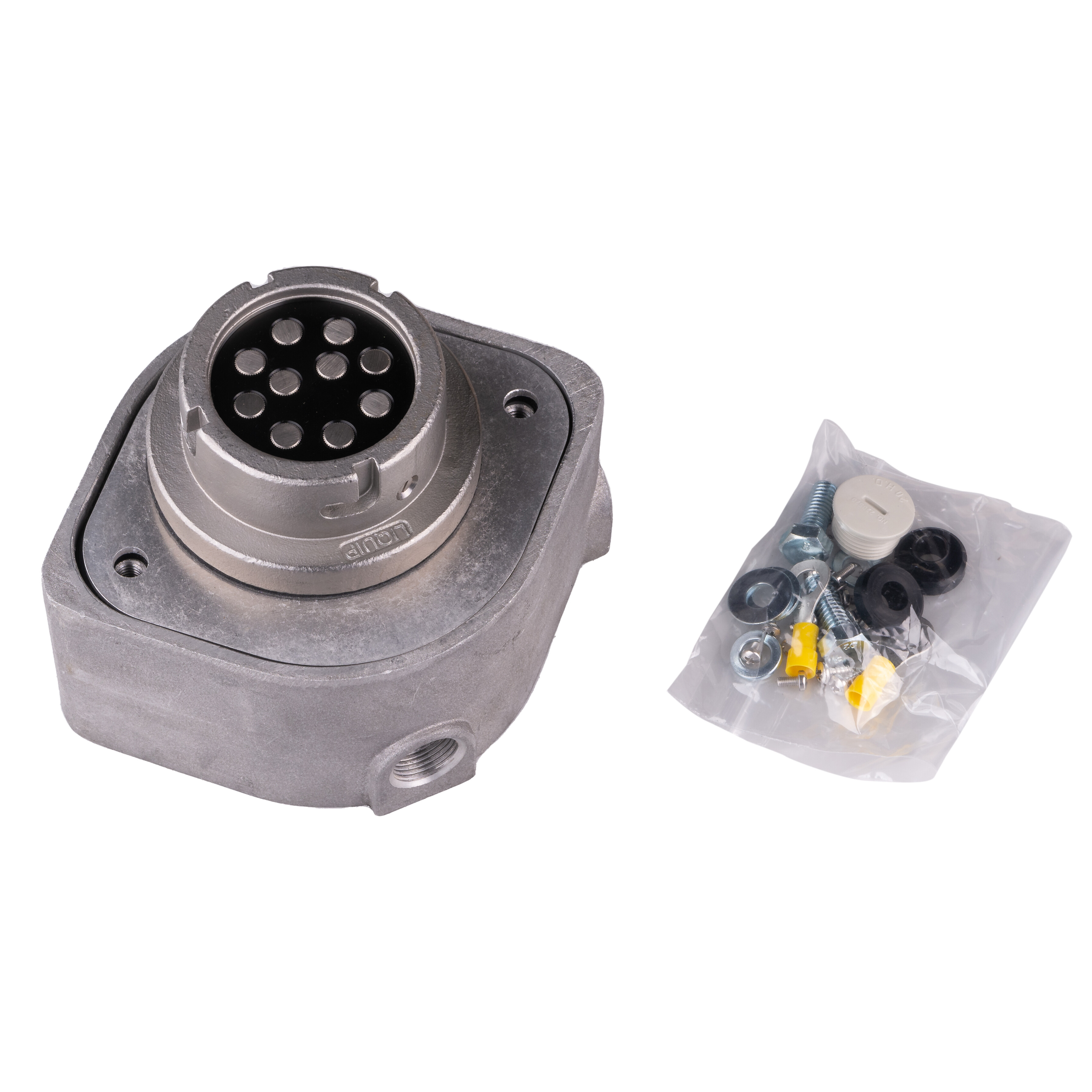

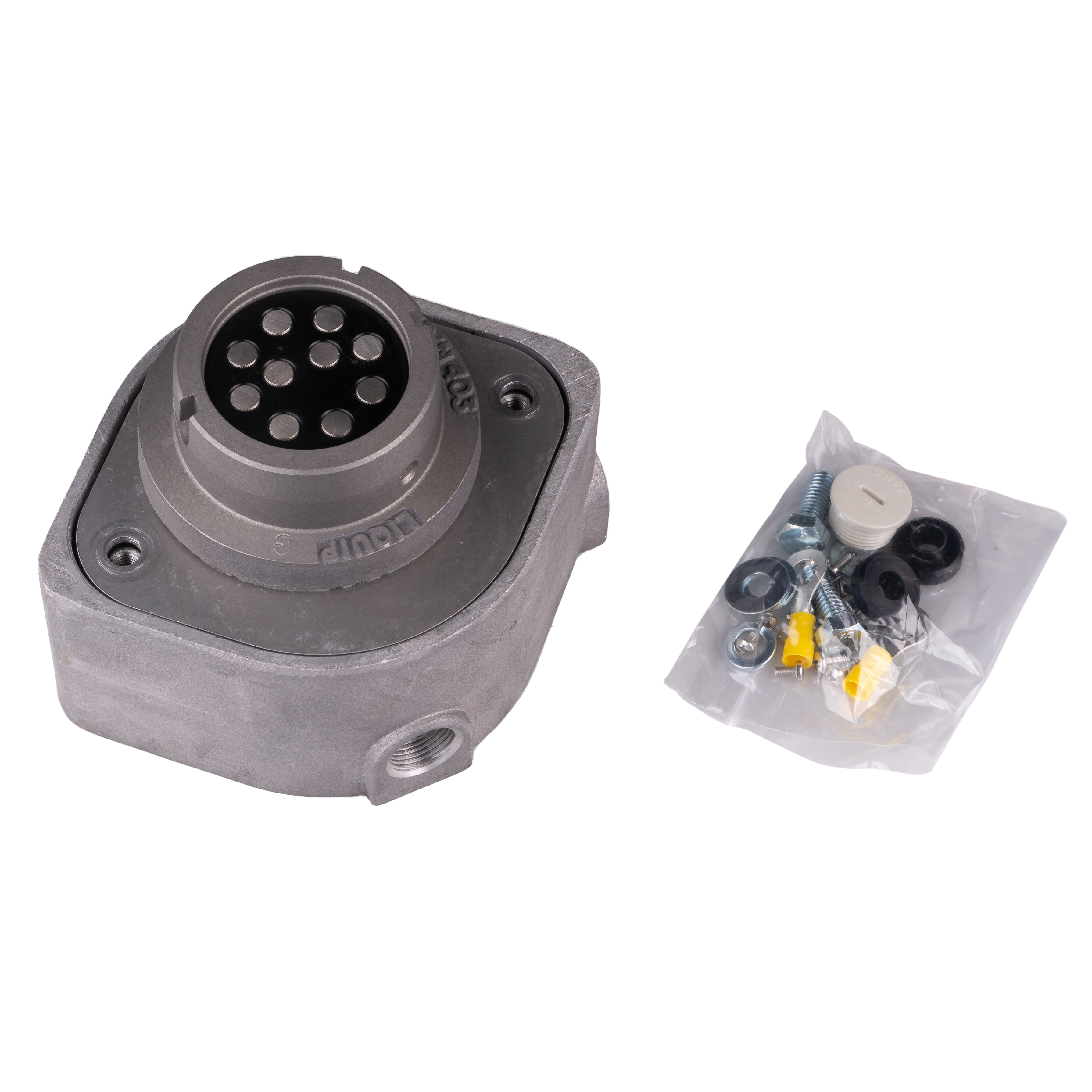

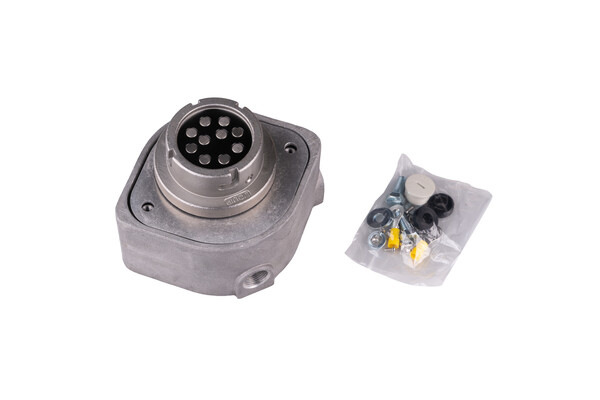

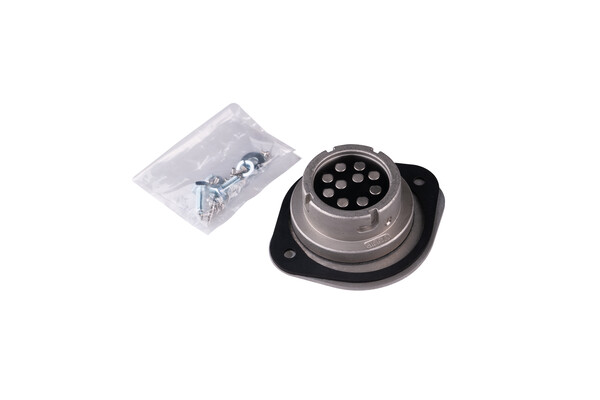

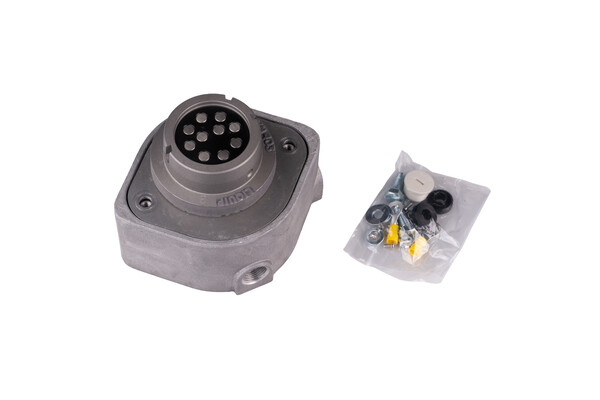

Truck Plug with Electrical Pressure Switch

Liquip offers truck plugs wth added pressure switch and  ground assurance to suit 2 wire and 5 wires overfill systems with 3 or 4 pin bayonet fastening (J slots).

A pneumatic pressure switch has been built into a standard truck socket so that the latest generation of tankers can use this switch to automatically link into the pneumatic logic and ensure the correct pressure keeps the system operating.

Features & Benefits
  • Pressure switch can be used to prevent loading until all connectins are made.
  • 3 and 4 bayonet style J slots fixing to industry standard.
  • 10 pin as standard.
  • Allows for overfill protection with added ground assurance.
  • Sufficient room to easily install and mount dummy probe as required in 2 wire systems.
Technical Information

Mounting
-Mounting by 2 stainless steel bolts 8mm dia via acetal insulating bushes.
-3 and 4 bayonet fixing to industry standard
-Conduit ports 1/2” NPT (straight) thread, two options.
-10 pin as standard.

Weight
1.3kg

Materials
-Aluminium nose-cone, hard anodised.
-Stainless steel pins and terminator.
-Acetal mounting block.
-Aluminium body and cover plate.
-PVC cap. Order separately, see below.



Ordering Information

ITP113: truck plug with electrical pressure switch and 3 pin bayonet fastening

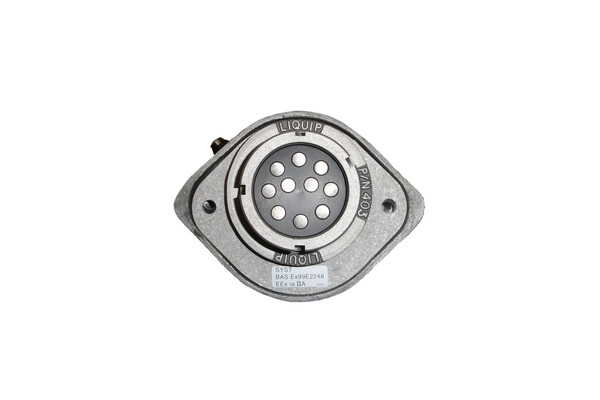

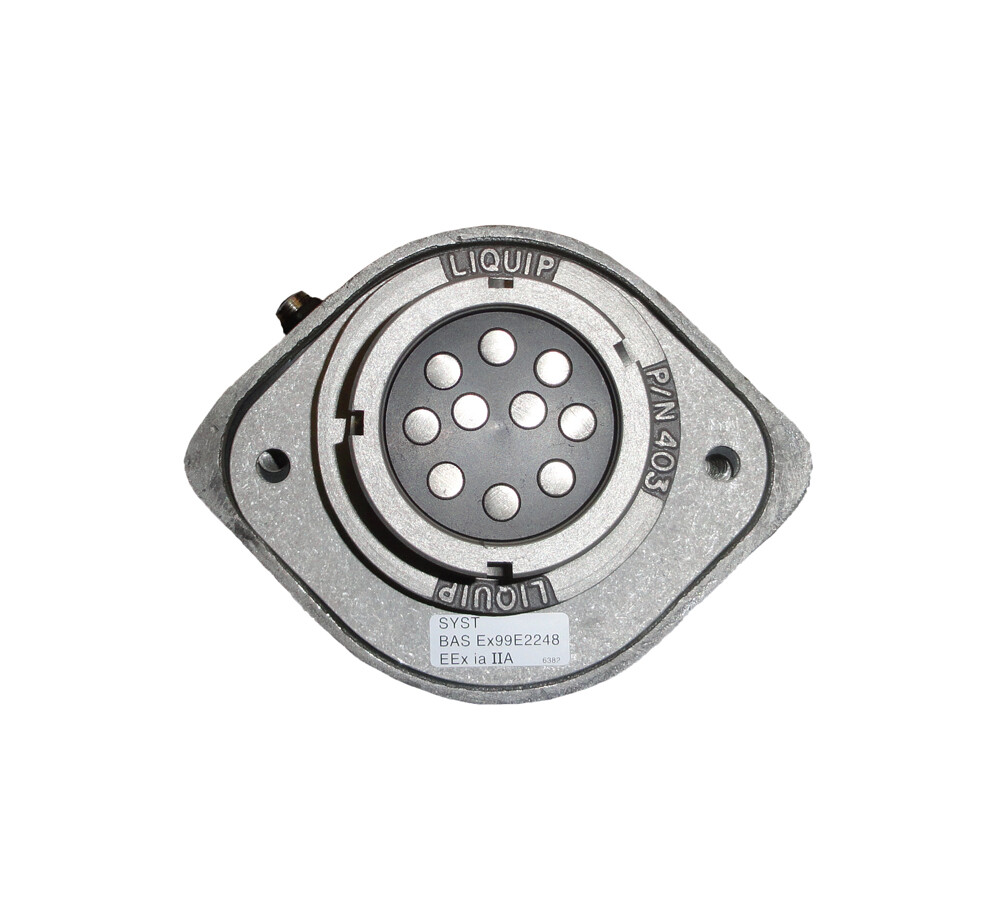

ITP114: truck plug with electrical pressure switch and 4 pin bayonet fastening. (Use also for 2 pin).

ASSOCIATED EQUIPMENT

5069: Truck Plug Dust Cap.
DP305: 5 Channel Dummy Probe for 2 wire systems.
DP307: 7 Channel Dummy Probe.
LDP202: Aluminium 2 wire Overfill Probe.
LDP205: Aluminium 5 wire Overfill Probe.
GP100 Series: Overfill Gantry Plugs.
