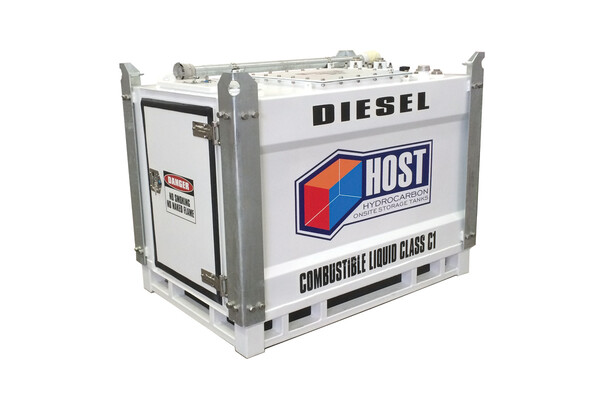

HOST Self Bunded Tank Cubes

HOST Self Bunded Storage Tank Cubes:
Enjoy a smaller tank footprint, without compromising on performance and quality.

Liquip Victoria’s HOST Tanks Self Bunded Tank Cube range are designed for smaller to medium volume fuel, lubricants, chemcial and food storage solutions, offering a smaller tank footprint whilst still supplying an effective fuel dispensing system. Each of the tanks in the series can be fitted with a range of pumping solutions, with the choice of the following flow rates:

► Off Grid Solar Powered – up to 80 L/pm
► Mains Power 240V or 12V – up to 100 L/pm
► Pump Fuel Management System
► Diesel or ULP Pump Packages

Talk to a Liquip Victoria sales team member to obtain pricing, supply and delivery or for more information about our range of HOST Tank Cubes liquid storage solutions or visit the HOST Tanks website to see how well a HOST Tank SBT Cube stacks up against the competition.

Features & Benefits

HOST Self Bunded Storage Tank Cubes
– features and pumping options
HOST Cubes range in size from 1,000 to 10,000 litres, and are manufactured to UL142 (which exceeds AS1940, AS1692 and AS1757) and come fitted with a range of high quality pumping systems.

- Transportable with lockable cabinet on the front
- Setup for Diesel or Petrol / ULP as standard
- Fill Point – 80 mm (3") with Camlock Adaptor and Cap
- Multiple options for drawing fuel from the tank
- Genset Lines - Suction and return ports
- Forklift and crane lifting points
- Hot Dipped Galvanised Corner Posts for protection
- Stackable for transporting
- Statutory Decals Fitted
- Solar powered pumping option – providing 3 to 4 hours
  continuous pumping at 70 L/pm
- Quick view tank top contents level gauge

Technical Information

Model   Litres     L       W        H   Weight   Dispenser
                       (m)    (m)     (m)   (kg)

LC 1     1,000    1.645   1.100     1.270     710     Pump Bay
LC 2     2,000    2.215   1.425     1.270    1,010   Pump Bay
LC 3     3,000    2.135   2.185     1.270    1,295   Pump Bay
LC 4.5  4,500    2.925   2.200     1.270    1,570   Pump Bay
LC 6     6,000    3.815   2.200     1.270    2,030   Pump Bay
LC 10   10,000  6.060    2.440    1.295    4,445   Pump Bay



Associated Equipment

PUMP OPTIONS
- Solar Pumping Off Grid (8m Auto Nozzle) – up to 80 L/pm
- Mains Power with Mechanical Meter – up to 100 L/pm
- Fuel Management System – up to 80 L/pm


CERTIFICATIONS
- AS1692-2006 Steel tanks for Flammable &
  Combustible Liquids
- AS1940-2004 The storage and handling of Flammable
  & Combustible Liquids
- UL142 Aboveground Flammable Liquid Tanks
- Above ground Storage Tanks for Petroleum products


Ordering Information

HOST CUBE: LC-1     1,000L
HOST CUBE: LC-2     2,000L
HOST CUBE: LC-3     3,000L
HOST CUBE: LC-4.5  4,500L
HOST CUBE: LC-6     6,000L
HOST CUBE: LC-10  10,000L
